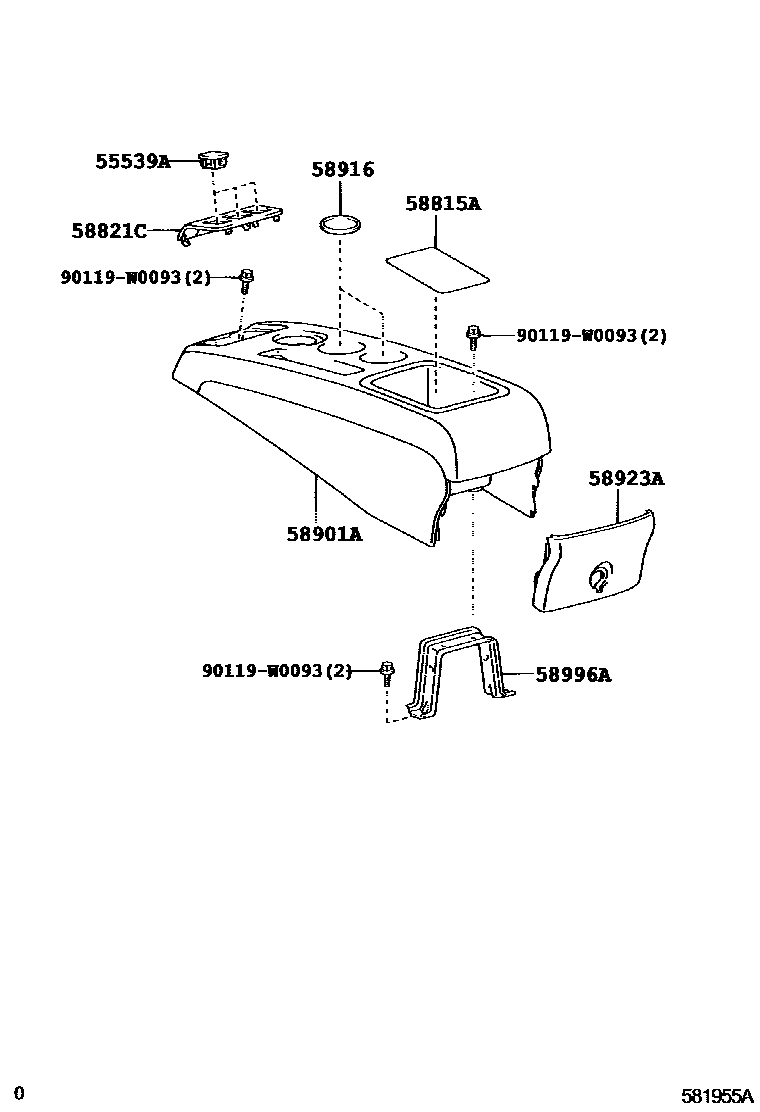

Toyota COROLLA VERSO — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-0F010-B0iAUR10,CUR10,ZNR1#..LHD200402-200705

BACK MONITOR-WITH,DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-0F010iCUR10200402-200508

58821CPANEL, CONSOLE, UPPER

main58821-0F010-B0iAUR10,CUR10,ZNR1#200402-200705

DK.GRAY,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-0F010-B0iAUR10,CUR10,ZNR1#200402-200705

DK.GRAY,TRIM1#

58916MAT, BOX BOTTOM

main58916-0F010×2iCUR10200402-200508

58923APANEL, CONSOLE REAR END

main58923-0F010-B0iAUR10,CUR10,ZNR1#200402-200705

DK.GRAY,TRIM1#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0F010iCUR10200402-200508

90119W0093

main90119-W0093

8 parts on this diagram · 1 diagram in section
