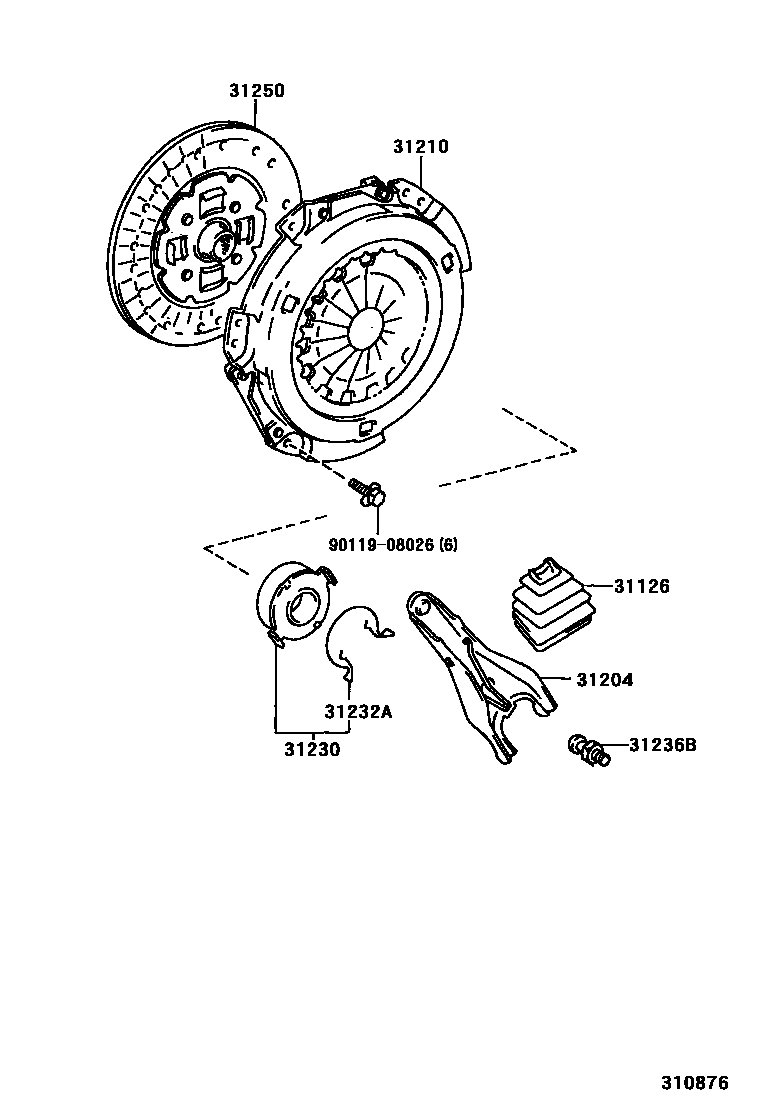

Toyota COROLLA VERSO — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051i200109-200401

main31126-20080i200110-200401

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010i200109-200401

main31204-20130i200110-200301

main31204-20131i200301-200401

31210COVER ASSY, CLUTCH

main31210-12201i200110-200401

main31210-12221i200109-200401

main31210-12240i200110-200401

31230BEARING ASSY, CLUTCH RELEASE

main31230-12191i200109-200401

main31230-20191i200110-200401

31232ACLIP, RELEASE BEARING HUB

main31232-12070i200109-200401

main31232-20031i200110-200401

31236BSUPPORT, RELEASE FORK

main31236-12020i200109-200401

main31236-20080i200110-200401

31250DISC ASSY, CLUTCH

main31250-12360i200109-200401

main31250-12410i200110-200401

main31250-20280i200110-200401

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota COROLLA VERSO

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COROLLA VERSO. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
