Toyota COROLLA VERSO — ARMREST & VISOR

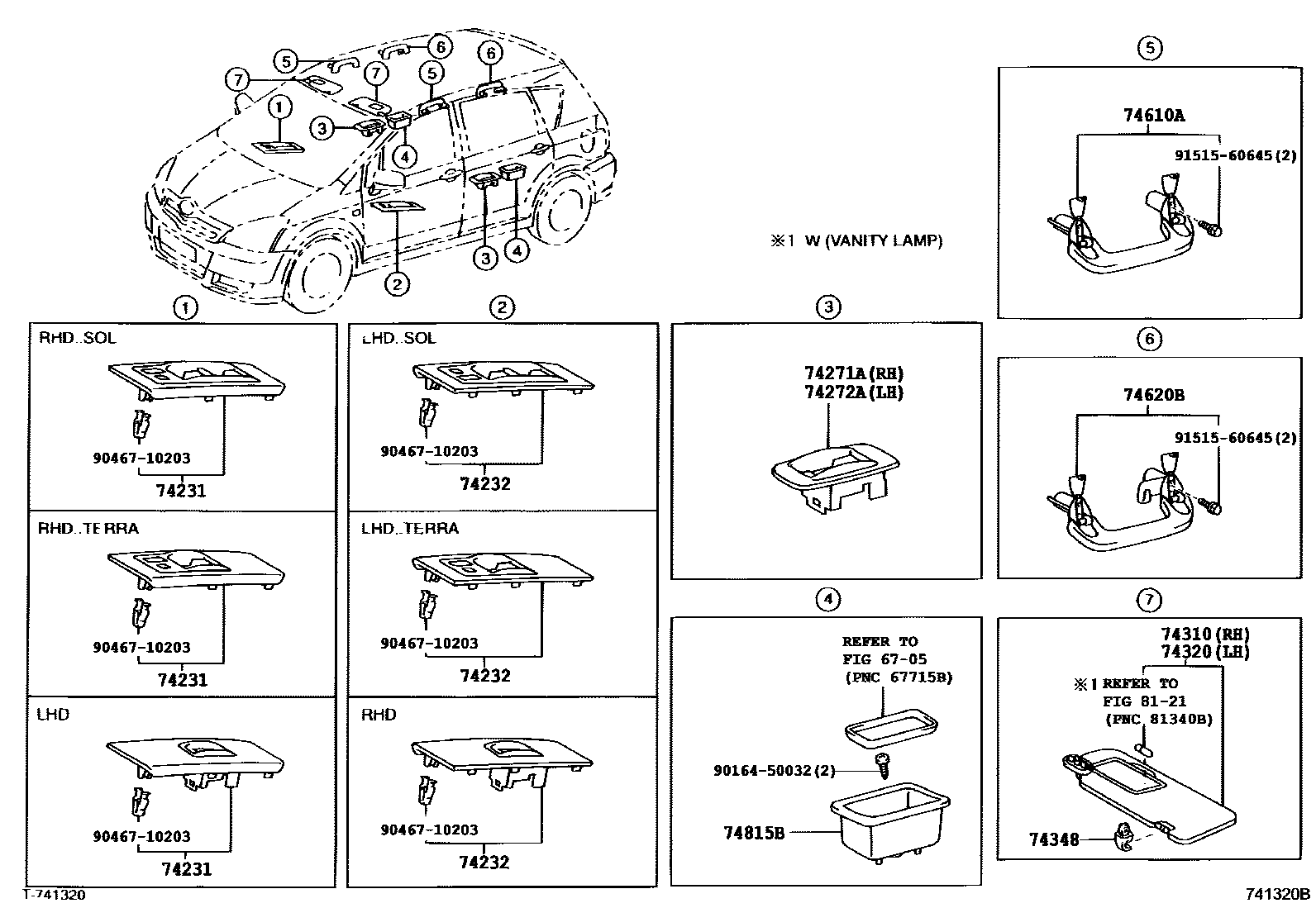

Parts diagram
6705REAR DOOR PANEL & GLASS
→ Go to FIG 67-05
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0F010-B0i200402-200705
DK.GRAY,TRIM1#
main74231-0F020-B0i200402-200705
DK.GRAY,TRIM1#
main74231-0F030-B0i200402-200705
DK.GRAY,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-0F010-B0i200402-200705
DK.GRAY,TRIM1#
main74232-0F020-B0i200402-200705
DK.GRAY,TRIM1#
main74232-0F030-B0i200705-200902
DK.GRAY,TRIM1#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main84656-02130-B1i200705-200902
DK.GRAY,TRIM1#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main84656-02130-B1i200705-200902
DK.GRAY,TRIM1#
74310VISOR ASSY, RH
main74310-0F030-B0i200402-200407
LT.GRAY,TRIM1#
main74310-0F031-B0i200705-200902
LT.GRAY,TRIM1#
main74310-0F040-B0i200705-200902
LT.GRAY,TRIM1#
main74310-0F050-B0supersedes 74310-0F010-B0i200402-200407
DENMARK SPEC,LT.GRAY,TRIM1#; FINLAND SPEC,LT.GRAY,TRIM1#; GREECE SPEC,LT.GRAY,TRIM1#; PORTUGAL SPEC,LT.GRAY,TRIM1#; SWEDEN SPEC,LT.GRAY,TRIM1#
main74310-0F051-B0supersedes 74310-0F011-B0i200705-200902
DENMARK SPEC,LT.GRAY,TRIM1#; FINLAND SPEC,LT.GRAY,TRIM1#; GREECE SPEC,LT.GRAY,TRIM1#; PORTUGAL SPEC,LT.GRAY,TRIM1#; SWEDEN SPEC,LT.GRAY,TRIM1#
main74310-0F060-B0supersedes 74310-0F020-B0i200705-200902
DENMARK SPEC,LT.GRAY,TRIM1#; FINLAND SPEC,LT.GRAY,TRIM1#; GREECE SPEC,LT.GRAY,TRIM1#; PORTUGAL SPEC,LT.GRAY,TRIM1#; SWEDEN SPEC,LT.GRAY,TRIM1#
74320VISOR ASSY, LH
main74320-0F010-B0i200402-200407
LT.GRAY,TRIM1#
main74320-0F011-B0i200408-200705
LT.GRAY,TRIM1#
main74320-0F020-B0i200705-200902
LT.GRAY,TRIM1#
main74320-0F030-B0i200402-200407
LT.GRAY,TRIM1#
main74320-0F031-B0i200705-200902
LT.GRAY,TRIM1#
main74320-0F040-B0i200402-200705
LT.GRAY,TRIM1#
74348HOLDER, VISOR
main74348-12040-B0×2i200705-200902
LT.GRAY,TRIM1#
74610AGRIP SUB-ASSY, ASSIST
main74610-05070-B0×2i200402-200705
LT.GRAY,TRIM1#
74620BGRIP ASSY, ASSIST, REAR
main74610-05080-B0×2i200705-200902
LT.GRAY,TRIM1#
74815BHANDLE, REAR DOOR PULL
main74815-0F010-B0i200402-200705
DK.GRAY,TRIM1#,RH
main74816-0F010-B0i200402-200705
DK.GRAY,TRIM1#,LH
8121INTERIOR LAMP
→ Go to FIG 81-21
9016450032
main90164-50032
9046710203
main90467-10203
9151560645
main91515-60645

15 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota COROLLA VERSO

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA VERSO. Key components include: REAR DOOR PANEL & GLASS, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH.
