Toyota COROLLA (UKP) — WINDSHIELD WIPER

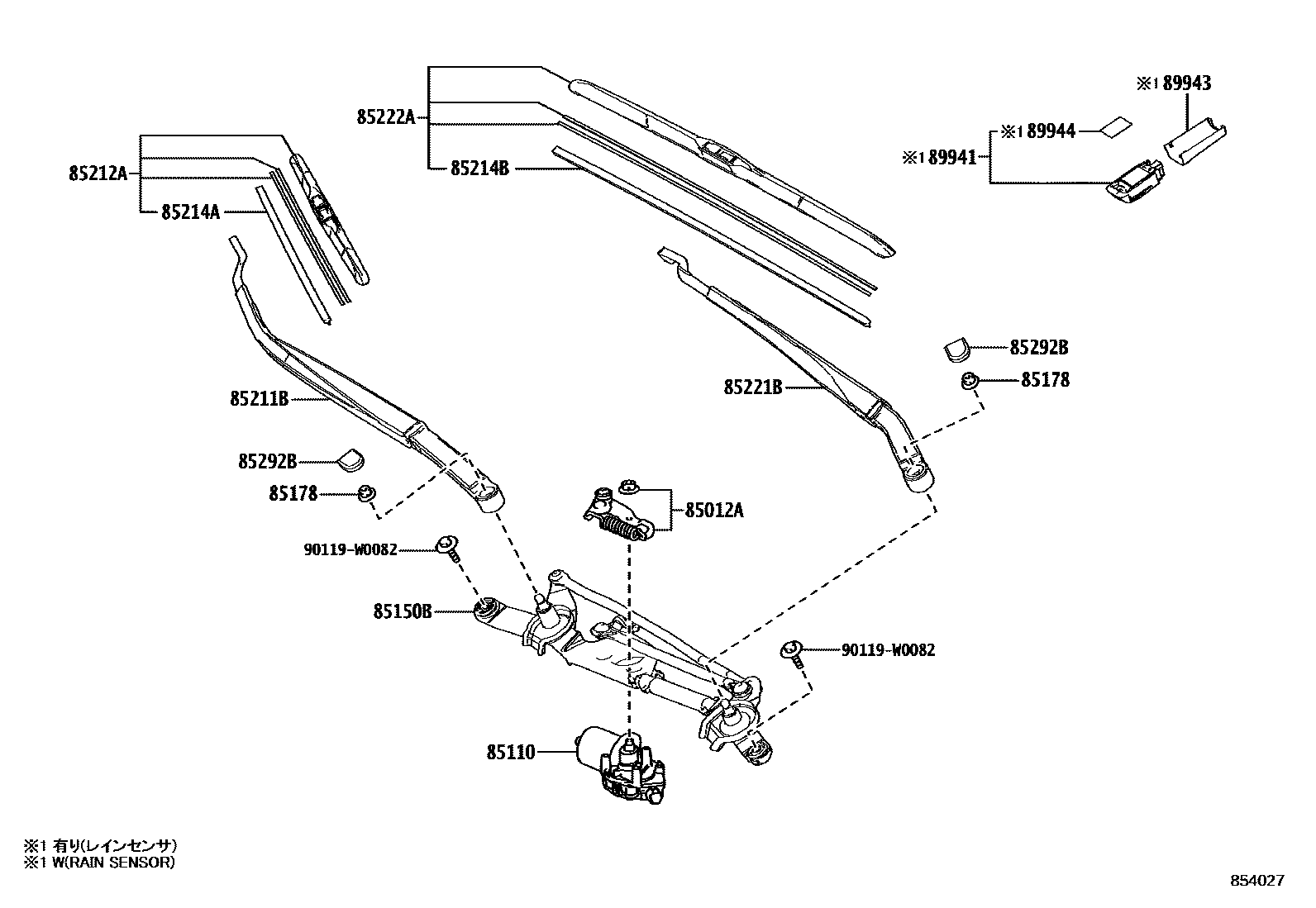

Parts diagram

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010i202301

main85012-58030i201901

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C80i202301

main85110-12C90i201901

85150BLINK ASSY, WIPER

main85150-02430i202301

main85150-02440i201901

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i202301

(J),(L)

85211BARM, FRONT WIPER, RH

main85211-02430i202301

main85211-02440i201901-202002

main85211-02441i202003

85212ABLADE, FR WIPER, RH

main85212-12610i201901

main85212-12620i201901

85214ARUBBER, WIPER, RH

main85214-28080i201901

main85214-68030i201901

85214BRUBBER, WIPER, LH

main85214-28080i202301

main85214-68030i202301

85221BARM, FRONT WIPER, LH

main85221-02410i201901-202002

main85221-02411i202003

main85221-02450i201901

85222ABLADE, FR WIPER, LH

main85222-12A80i201901

main85222-12B00i202301

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i201901

89941SENSOR, RAIN

main89941-0D040i202010

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

main89941-30040i201901-202009

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR); WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

main89941-78020i202301

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR); WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

89943COVER, RAIN SENSOR

main89943-12040i201901-202303

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

89944TAPE, RAIN SENSOR

main89944-42020i201901-202303

WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT

90119W0082

main90119-W0082

15 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota COROLLA (UKP)

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA (UKP). Key components include: CRANK SUB-ASSY, FRONT WIPER, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH.
