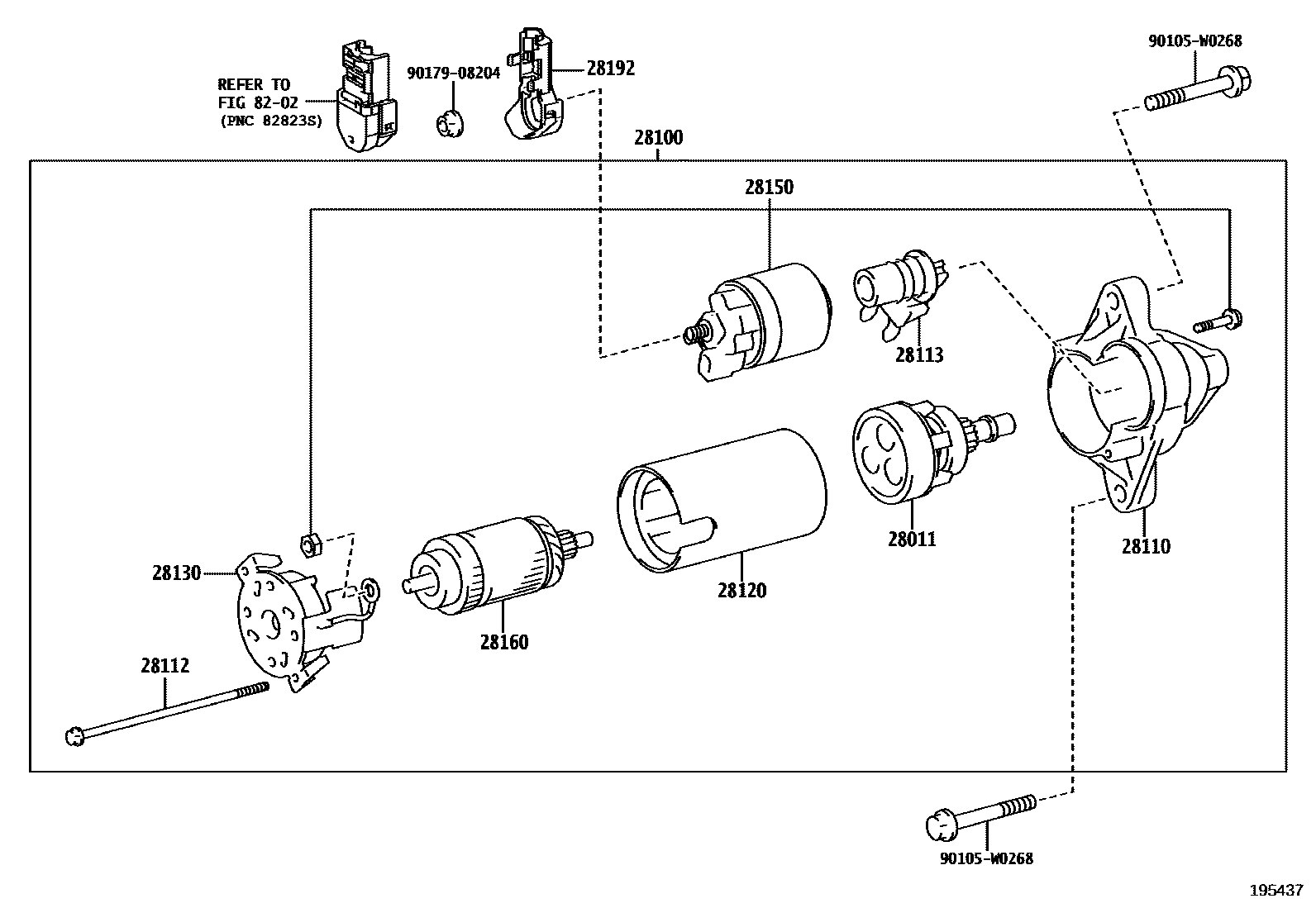

Toyota COROLLA (UKP) — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.2KW
main28100-47280i8NRFTS..NRE210..LHD..HB..CVT..EUR; 8NRFTS..NRE210..RHD..CVT;8NRFTS..NRE210..LHD..WG..CVT201901
12V 1.7KW; 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM); 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC; 12V 1.7KW,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC
12V 1.6KW,COLD AREA SPEC; 12V 1.6KW,SUB COLD AREA SPEC
28110HOUSING ASSY, STARTER DRIVE
28112BOLT, HOUSING SET
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
main28120-37100i8NRFTS..NRE210..LHD..HB..CVT..EUR; 8NRFTS..NRE210..RHD..CVT;8NRFTS..NRE210..LHD..WG..CVT201901
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
COLD AREA SPEC; SUB COLD AREA SPEC
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM); LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC
28130FRAME ASSY, STARTER COMMUTATOR END
28150SWITCH ASSY, MAGNET STARTER
main28150-21120i8NRFTS..NRE210..LHD..HB..CVT..EUR; 8NRFTS..NRE210..RHD..CVT;8NRFTS..NRE210..LHD..WG..CVT201901
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
COLD AREA SPEC; SUB COLD AREA SPEC
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM); LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC
28160ARMATURE ASSY, STARTER
main28160-36110i8NRFTS..NRE210..6F..EUR; 8NRFTS..NRE210..6F..EUR;8NRFTS..NRE210..LHD..HB..CVT..EUR; 8NRFTS..NRE210..LHD..6F..EUR; 8NRFTS..NRE210..RHD..CVT;8NRFTS..NRE210..LHD..WG..CVT201910
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM); LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC
main28160-38070i8NRFTS..NRE210..LHD..HB..CVT..EUR; 8NRFTS..NRE210..RHD..CVT;8NRFTS..NRE210..LHD..WG..CVT201901-201910
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM); LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&COLD AREA SPEC; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&SUB COLD AREA SPEC
COLD AREA SPEC; SUB COLD AREA SPEC
COLD AREA SPEC; SUB COLD AREA SPEC
28192COVER, STARTER
8202WIRING & CLAMP
90105W0268
main90105-W0268
9017908204
main90179-08204
13 parts on this diagram · 4 diagrams in section
STARTER for Toyota COROLLA (UKP)
This section contains 16 genuine Toyota parts for the STARTER system of the Toyota COROLLA (UKP). Key components include: CLUTCH SUB-ASSY, STARTER, CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, BOLT, HOUSING SET.
