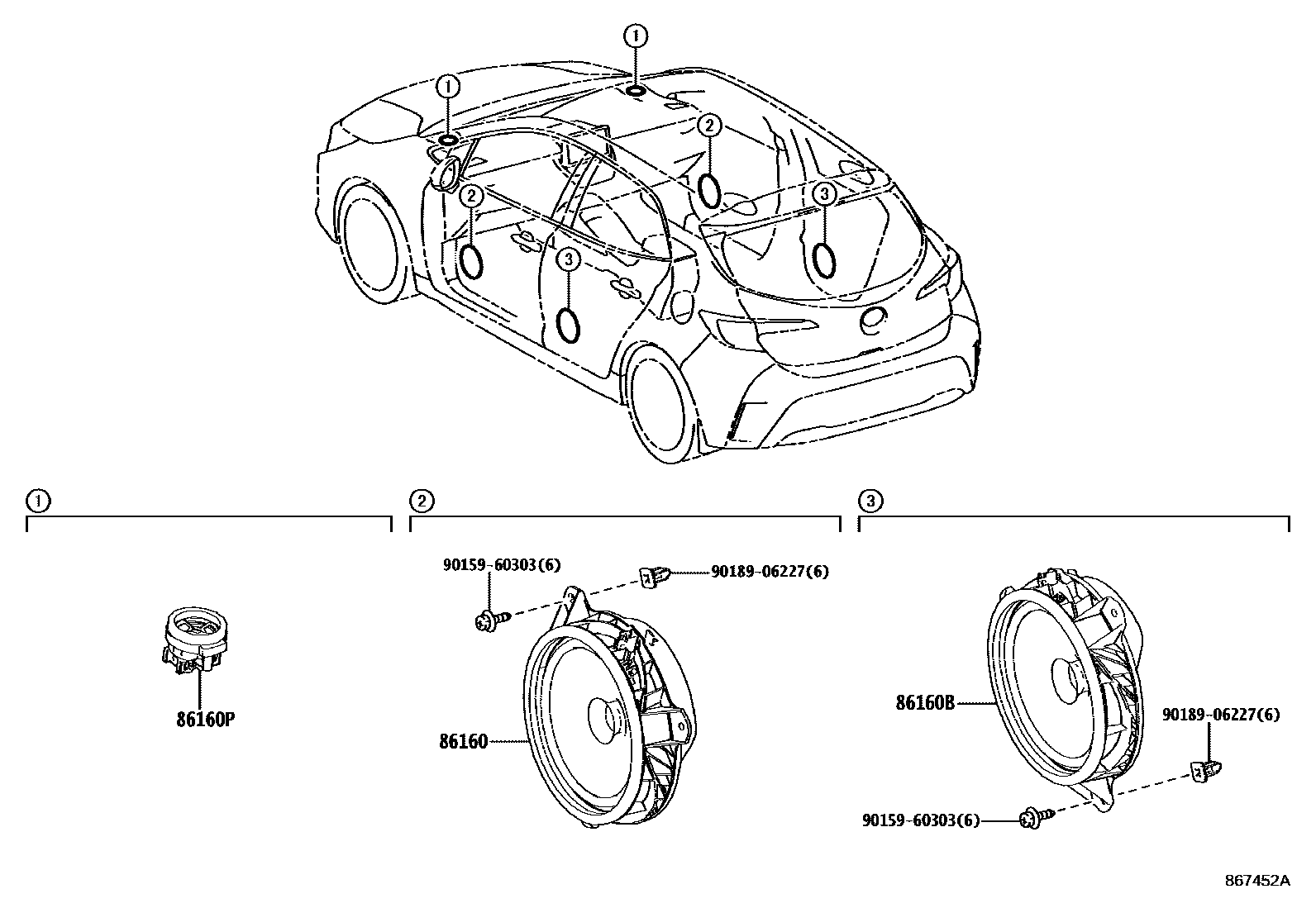

Toyota COROLLA (UKP) — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-02B80×2i201901-202203

main86160-0D450×2i202301

main86160-02D10×2i201901-201911

AUDIO-8INCH & DAB & JBL & 8SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-8INCH & JBL & 8SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-8INCH & NAVI & JBL & 8SPEAKER&DATA COMMUNICATION MODULE-WITHOUT

86160BSPEAKER ASSY, REAR

main86160-02B80×2i201901-202204

AUDIO-8INCH & 6SPEAKER; AUDIO-8INCH & DAB & 6SPEAKER

main86160-0D450×2i202301

main86160-02B70×2i201901-202201

AUDIO-8INCH & DAB & JBL & 8SPEAKER; AUDIO-8INCH & JBL & 8SPEAKER; AUDIO-8INCH & NAVI & DAB & JBL & 8SPEAKER; AUDIO-8INCH & NAVI & JBL & 8SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86150-02160i202301

LEFT SIDE; RIGHT SIDE

main86150-02170i202301

RIGHT SIDE

main86150-02180i202301

LEFT SIDE

main86150-02210×2i202201

AUDIO-8INCH & DAB & JBL & 8SPEAKER 21MM; AUDIO-8INCH & DAB & JBL & 8SPEAKER 21MM&DATA COMMUNICATION MODULE-WITH(FOR E-CALL); AUDIO-8INCH DAB JBL 8SPEAKER 21MM; AUDIO-8INCH DAB JBL 8SPEAKER 21MM&DATA COMMUNICATION MODULE-WITH(FOR E-CALL)

9015960303

main90159-60303

9018906227

main90189-06227

5 parts on this diagram · 12 diagrams in section

SPEAKER for Toyota COROLLA (UKP)

This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA (UKP). Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.3, SPEAKER ASSY, FRONT NO.4, SPEAKER ASSY, FRONT NO.2.
