Toyota COROLLA (UKP) — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
INNER REAR VIEW MIRROR-MANUAL ANTI-GLARE
INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main87810-0WK10iMZEH12,NRE210,ZWE211..LHD..CVT..N; MZEH12,NRE210,ZWE211..LHD..G; NRE210..LHD..6F..N; NRE210..LHD..HB..6F..N201901-201911
CRUISE CONTROL-WITH&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SPEED LIMITER CONTROL-WITHOUT; CRUISE CONTROL-WITHOUT&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SPEED LIMITER CONTROL-WITHOUT; INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SPEED LIMITER CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&SPEED LIMITER CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&WVTA SPEC(OUTSIDE EU)&SPEED LIMITER CONTROL-WITHOUT; TURKEY SPEC&SPEED LIMITER CONTROL-WITHOUT; WVTA SPEC(OUTSIDE EU)&SPEED LIMITER CONTROL-WITHOUT
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-24010iMZEH12,NRE210,ZWE211..LHD..CVT..N; MZEH12,NRE210,ZWE211..LHD..G; NRE210..LHD..6F..N; NRE210..LHD..HB..6F..N201901-201911
CRUISE CONTROL-WITH&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SPEED LIMITER CONTROL-WITHOUT; CRUISE CONTROL-WITHOUT&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SPEED LIMITER CONTROL-WITHOUT; INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SPEED LIMITER CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&SPEED LIMITER CONTROL-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&WVTA SPEC(OUTSIDE EU)&SPEED LIMITER CONTROL-WITHOUT; TURKEY SPEC&SPEED LIMITER CONTROL-WITHOUT; WVTA SPEC(OUTSIDE EU)&SPEED LIMITER CONTROL-WITHOUT
8790AAINDICATOR, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&AUDIO-RADIO LESS 6SPEAKER&LANE CHANGEASSIST-WITH(*BSM & LANE CHANGE ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA)
8790ABINDICATOR, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&AUDIO-RADIO LESS 6SPEAKER&LANE CHANGEASSIST-WITH(*BSM & LANE CHANGE ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA)
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-02L40supersedes 87910-02L51iMZEH12,NRE210,ZWE211..LHD..(D,N); MZEH12,NRE210,ZWE211..LHD..G201901-202001
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
main87910-02L41supersedes 87910-02L51iMZEH12,NRE210,ZWE211..LHD..(C,D,N); MZEH12,NRE210,ZWE211..LHD..G202002
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
main87910-02L70supersedes 87910-02L81iMZEH12,NRE210,ZWE211..RHD..(D,N); MZEH12,NRE210,ZWE211..RHD..G201901-202001
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&AUDIO-RADIO LESS 6SPEAKER&LANE CHANGEASSIST-WITH(*BSM & LANE CHANGE ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST)
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&AUDIO-RADIO LESS 6SPEAKER&LANE CHANGEASSIST-WITH(*BSM & LANE CHANGE ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTA); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST)
87915COVER, OUTER MIRROR, RH
BLACK,3U5 ,4W9 ,6X1 ,8X8 ,8Y8 ,M28 ,M42
LIQUID BLACK,8Y8 ,M28 ,M42; RADIATOR LOWER GRILLE-LIQUID BLACK,LIQUID BLACK,040 ,089 ,1G3 ,1J6 ,1K6 ,1L0 ,209,2MB ,2NR ,2PU ,2RD ,2RF ,2RZ ,2SZ ,2TX ,2UQ ,2VL ,3U5 ,6X1 ,8X8
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
CEMENT GRAY ME.,1H5
PRECIOUS SILVER,1J6
GRAY ME.,1G3
SILVER ME.,1L0
BLACK MC.,209; BLACK MC.,209 ,2KR ,2KS ,2NR ,2PN ,2PU ,2QS ,2RD ,2RE ,2RF ,2RG ,2RZ ,2SZ ,2TX ,2UQ; BLACK MC.,209 ,2KR ,2KS ,2NR ,2PN ,2PU ,2QS ,2RD ,2RE ,2RF ,2RG ,2SZ ,2TX ,2UQ
EMOTIONAL RED 2,3U5
PHANTOM BROWN ME.,4W9
OXIDE BRONZE ME.,6X1
DK.BLUE,8Q4
BLUE ME.,8U6
DK. BLUE MC.,8X8
JUNIPER BLUE M.M.,8Y8
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-02L30supersedes 87940-02L41iMZEH12,NRE210,ZWE211..LHD..(D,N); MZEH12,NRE210,ZWE211..LHD..G201901-202001
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
main87940-02L31supersedes 87940-02L41iMZEH12,NRE210,ZWE211..LHD..(C,D,N); MZEH12,NRE210,ZWE211..LHD..G202002
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
main87940-02L60supersedes 87940-02L71iMZEH12,NRE210,ZWE211..RHD..(D,N); MZEH12,NRE210,ZWE211..RHD..G201901-202001
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&AUDIO-RADIO LESS 6SPEAKER&LANE CHANGEASSIST-WITH(*BSM & LANE CHANGE ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTA)&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST)
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&AUDIO-RADIO LESS 6SPEAKER&LANE CHANGEASSIST-WITH(*BSM & LANE CHANGE ASSIST); OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST & *RCTA)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&CLEARANCE & BACK SONAR-WITH(*ICS & *RCTA)&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&LANE CHANGE ASSIST-WITH(*BSM & SAFE EXIT ASSIST)
87945COVER, OUTER MIRROR, LH
BLACK,3U5 ,4W9 ,6X1 ,8X8 ,8Y8 ,M28 ,M42
LIQUID BLACK,8Y8 ,M28 ,M42; RADIATOR LOWER GRILLE-LIQUID BLACK,LIQUID BLACK,040 ,089 ,1G3 ,1J6 ,1K6 ,1L0 ,209,2MB ,2NR ,2PU ,2RD ,2RF ,2RZ ,2SZ ,2TX ,2UQ ,2VL ,3U5 ,6X1 ,8X8
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
CEMENT GRAY ME.,1H5
PRECIOUS SILVER,1J6
GRAY ME.,1G3
SILVER ME.,1L0
BLACK MC.,209; BLACK MC.,209 ,2KR ,2KS ,2NR ,2PN ,2PU ,2QS ,2RD ,2RE ,2RF ,2RG ,2RZ ,2SZ ,2TX ,2UQ; BLACK MC.,209 ,2KR ,2KS ,2NR ,2PN ,2PU ,2QS ,2RD ,2RE ,2RF ,2RG ,2SZ ,2TX ,2UQ
EMOTIONAL RED 2,3U5
PHANTOM BROWN ME.,4W9
OXIDE BRONZE ME.,6X1
DK.BLUE,8Q4
BLUE ME.,8U6
DK. BLUE MC.,8X8
JUNIPER BLUE M.M.,8Y8
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
9017906274
main90179-06274

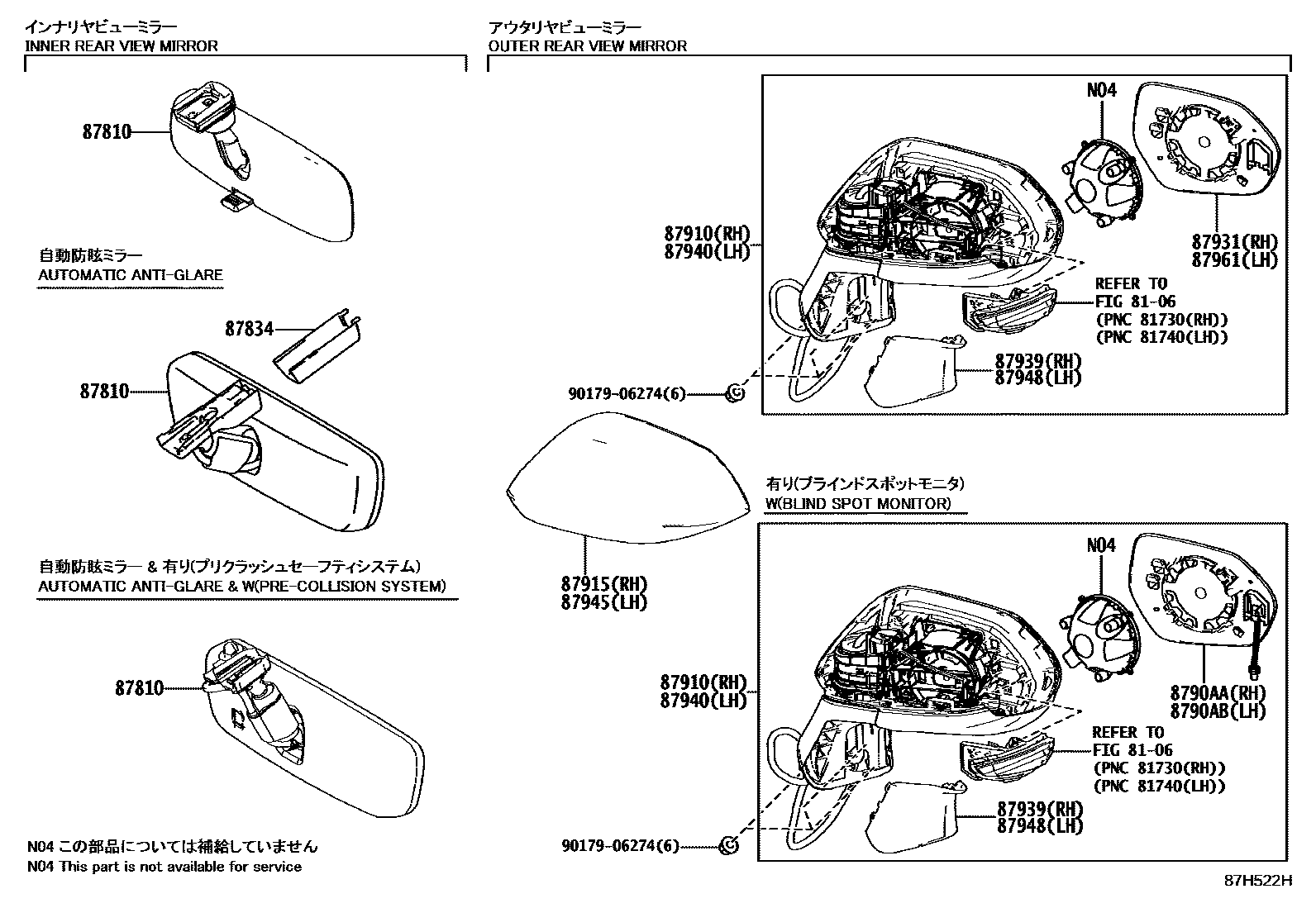

14 parts on this diagram · 1 diagram in section
MIRROR for Toyota COROLLA (UKP)
This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota COROLLA (UKP). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, INDICATOR, OUTER MIRROR, RH, INDICATOR, OUTER MIRROR, LH.
