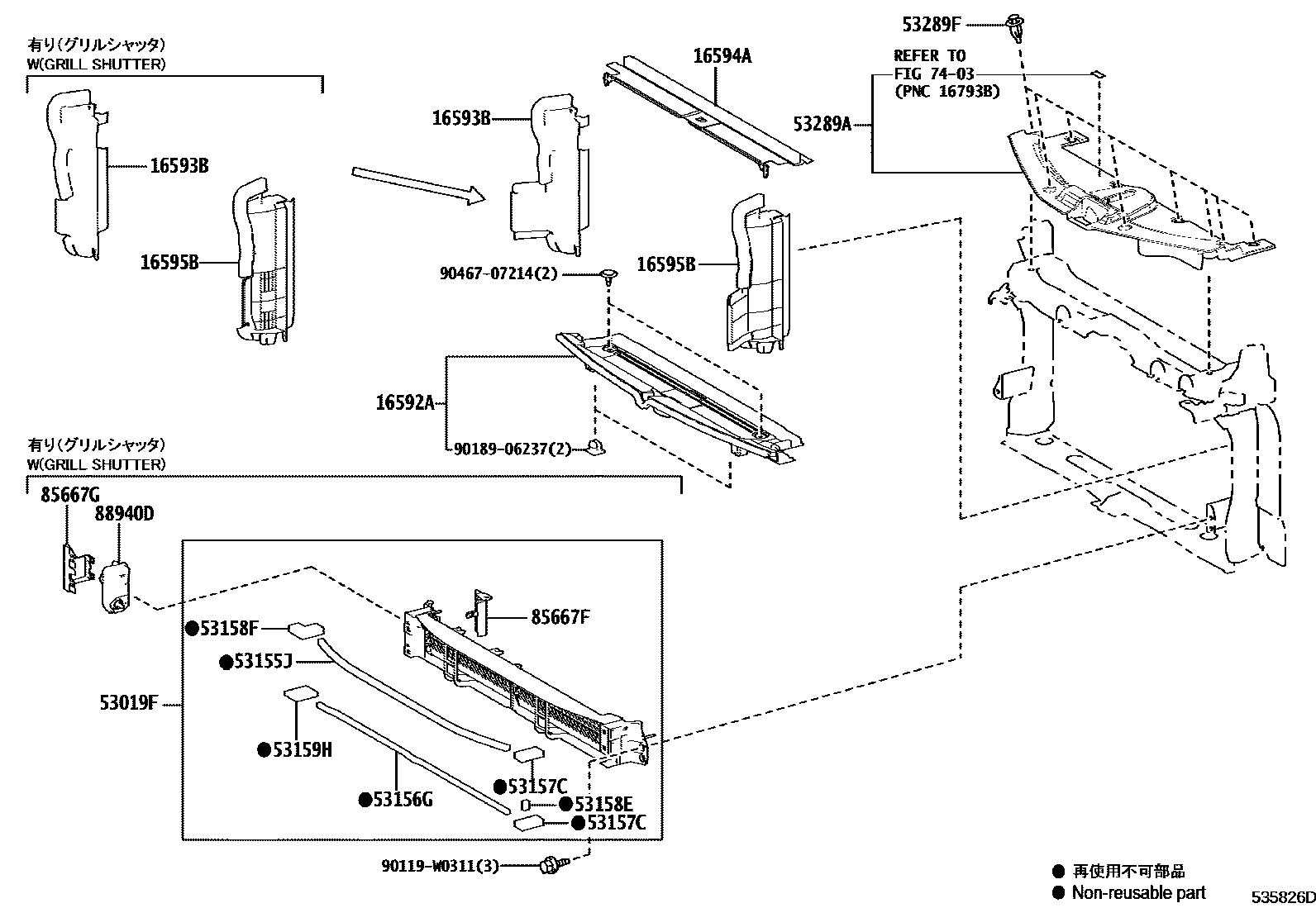

Toyota COROLLA (UKP) — FRONT FENDER APRON & DASH PANEL
16592AGUIDE, RADIATOR AIR, NO.3
16593BGUIDE, RADIATOR AIR, NO.1 RH
main16593-0T140i8NRFTS..NRE210..6F..D..EUR; 8NRFTS..NRE210..6F..D..EUR;8NRFTS..NRE210..LHD..HB..CVT..D..EUR; 8NRFTS..NRE210..RHD..CVT..D;8NRFTS..NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LIGHT GRADE&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&AIR CONDITIONER-WITHOUT; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
GRILL SHUTTER-WITH
16594AGUIDE, RADIATOR AIR, NO.2
16595BGUIDE, RADIATOR AIR, NO.1 LH
GRILL SHUTTER-WITH
main16595-0Y120i8NRFTS..NRE210..6F..D..EUR; 8NRFTS..NRE210..6F..D..EUR;8NRFTS..NRE210..LHD..HB..CVT..D..EUR; 8NRFTS..NRE210..RHD..CVT..D;8NRFTS..NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LIGHT GRADE&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&AIR CONDITIONER-WITHOUT; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
GRILL SHUTTER-WITH
53019FSHUTTER SUB-ASSY, RADIATOR
main53019-12020iNRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR; NRE210..RHD..CVT..D;NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
53155JSEAL, RADIATOR GRILLE, NO.1
main53155-12100iNRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR; NRE210..RHD..CVT..D;NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
53156GSEAL, RADIATOR GRILLE, NO.2
main53156-12040iNRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR; NRE210..RHD..CVT..D;NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
53157CSEAL, RADIATOR GRILLE, NO.3
main53157-12010×2iNRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR; NRE210..RHD..CVT..D;NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
53158ESEAL, RADIATOR GRILLE, NO.4
main53158-12010iNRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR; NRE210..RHD..CVT..D;NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
53158FSEAL, RADIATOR GRILLE, NO.4
main53158-47010iNRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR; NRE210..RHD..CVT..D;NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
53159HSEAL, RADIATOR GRILLE, NO.5
main53159-47030iNRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR; NRE210..RHD..CVT..D;NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
53289ACOVER, RADIATOR SUPPORT OPENING
53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)
7403CAUTION PLATE (EXTERIOR & INTERIOR)
85667FCOVER, MOTOR
main85667-12010iNRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR; NRE210..RHD..CVT..D;NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
85667GCOVER, MOTOR
main85667-47010iNRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR; NRE210..RHD..CVT..D;NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
88940DACTUATOR ASSY, SWING GRILLE
main88940-12030iNRE210..6F..D..EUR;NRE210..LHD..HB..CVT..D..EUR; NRE210..RHD..CVT..D;NRE210..LHD..WG..CVT..D201901-202010
GRILL SHUTTER-WITH; LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)
GRILL SHUTTER-WITH
GRILL SHUTTER-WITH
GRILL SHUTTER-WITH
90119W0311
main90119-W0311
9018906237
main90189-06237
9046707214
main90467-07214
20 parts on this diagram · 6 diagrams in section
FRONT FENDER APRON & DASH PANEL for Toyota COROLLA (UKP)
This section contains 78 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota COROLLA (UKP). Key components include: GUIDE, RADIATOR AIR, NO.3, GUIDE, RADIATOR AIR, NO.1 RH, GUIDE, RADIATOR AIR, NO.2, GUIDE, RADIATOR AIR, NO.1 LH, BRACKET, FRONT BUMPER SIDE, RH.
