Toyota COROLLA (UKP) — FRONT AXLE HUB

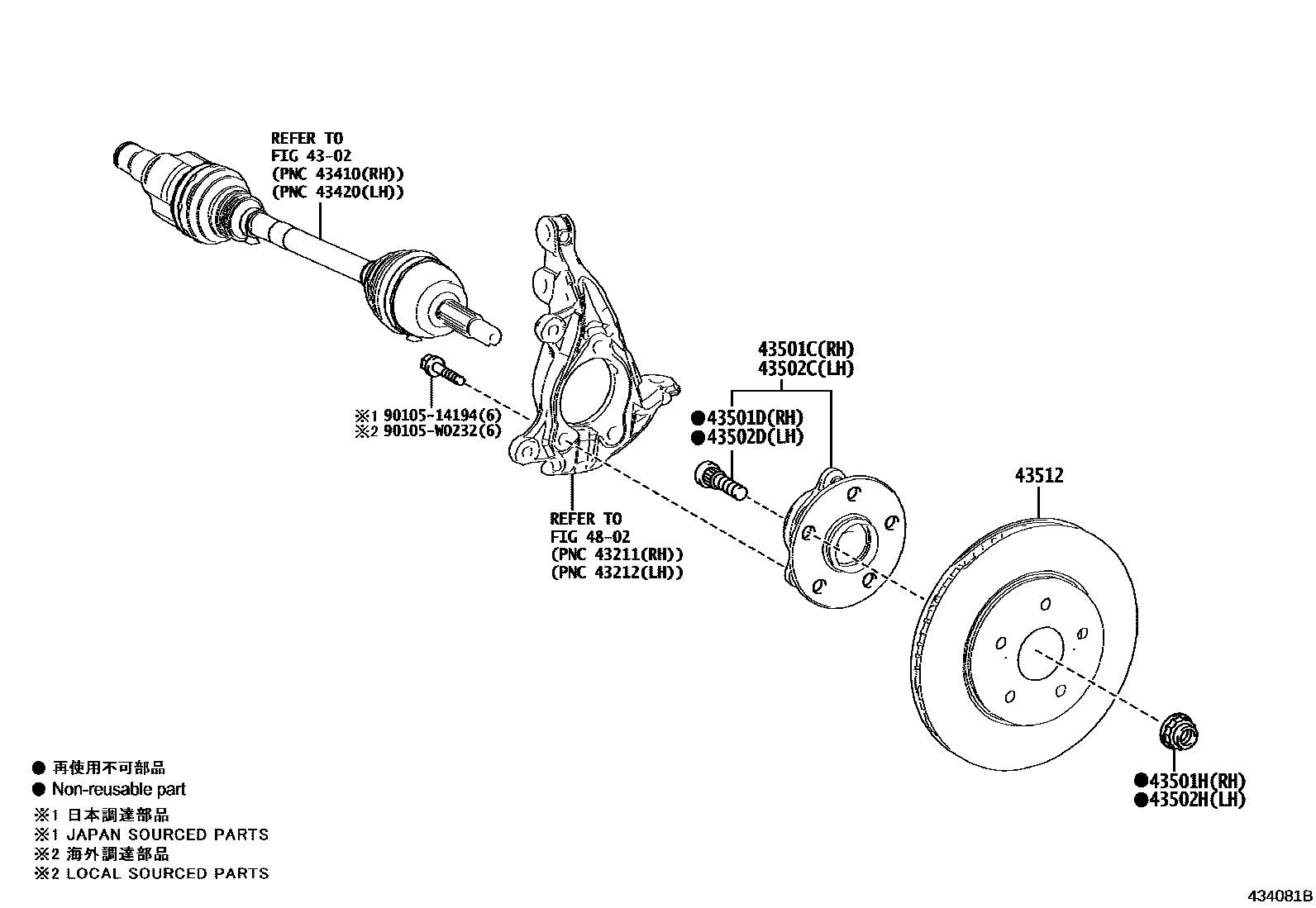

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-F4010i201901

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201901

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201901

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-F4010i201901

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201901

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201901

43512DISC, FRONT

main43512-02390×2i201901

main43512-F4010×2i201902

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

90105W0232

main90105-W0232

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA (UKP)

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA (UKP). Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
