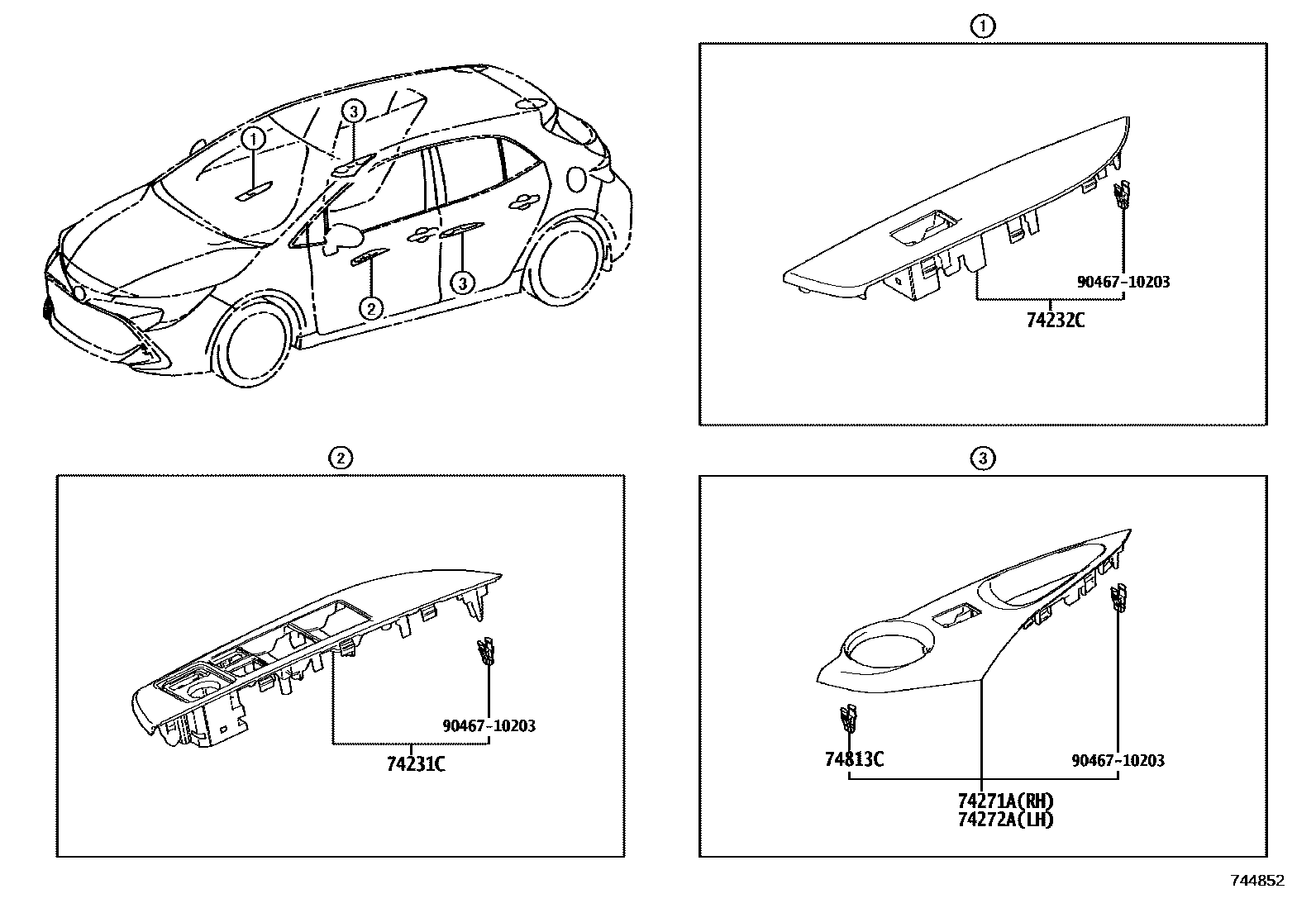

Toyota COROLLA (UKP) — ARMREST & VISOR
74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
main74232-02G20supersedes 74232-02J70iMZEH19,ZWE219..LHD..(C,D,N,S); MZEH19,ZWE219..LHD..G; MZEH19..LHD..WG..G; ZWE219..LHD..WG..G202301
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH; OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT COVER MATERIAL-LEATHER; OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
main74231-02J10iMZEH19,ZWE219..RHD..(N,S); MZEH19,ZWE219..RHD..G; MZEH19,ZWE219..RHD..HB..N; MZEH19,ZWE219..RHD..S;MZEH19,ZWE219..RHD..WG..N202301
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH; OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM; WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM
main74232-02J70iMZEH19,ZWE219..LHD..(N,S); MZEH19,ZWE219..LHD..G; MZEH19,ZWE219..LHD..HB..N; MZEH19,ZWE219..LHD..S;MZEH19,ZWE219..LHD..WG..N; MZEH19,ZWE219..LHD..WG..S202301
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH; OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM; OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WIHT; OUTSIDE REAR VIEW MIRROR-*AREM & *MIH&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WIHT; WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM
74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WIHT; OUTSIDE REAR VIEW MIRROR-*AREM & *MIH&SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WIHT; OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT COVER MATERIAL-LEATHER; OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR); SEAT COVER MATERIAL-LEATHER; SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WIHT; SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR); SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)
74813CCLIP
9046710203
main90467-10203
6 parts on this diagram · 5 diagrams in section
ARMREST & VISOR for Toyota COROLLA (UKP)
This section contains 17 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA (UKP). Key components include: PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE, PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
