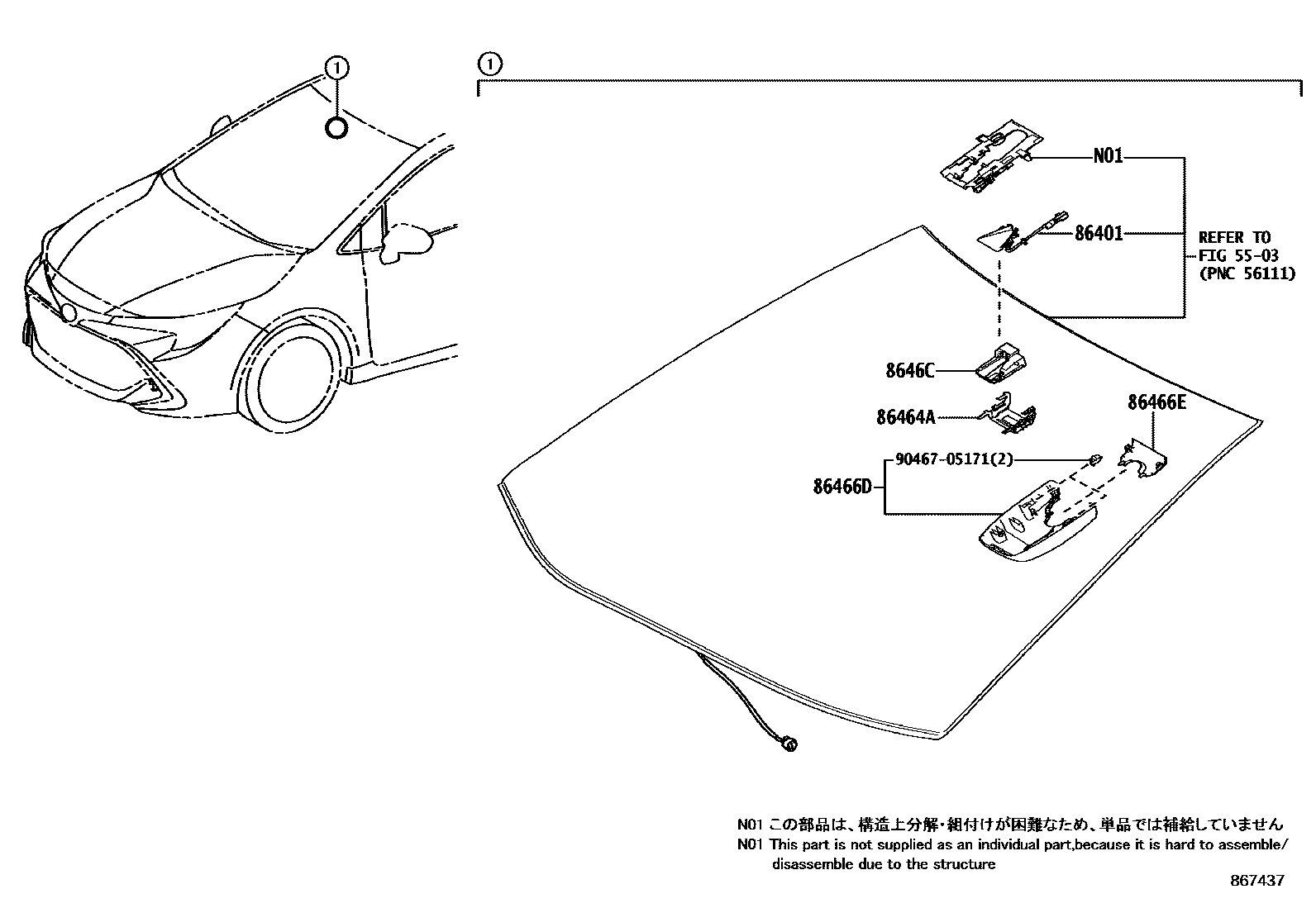

Toyota COROLLA (UKP) — PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-12010iNRE210..LHD..HB..G201901-202010

ACTIVE SAFETY PACKAGE-WITHOUT

main86401-12011iMZEH12,NRE210,ZWE211..LHD..(D,G,N)..EUR202011

OUTSIDE EUROPE&NEW CALEDONIA SPEC

86464ALATCH, FORWARD RECOGNITION

main86464-26010iMZEH12,NRE210,ZWE211..LHD..(D,G,N)..EUR201901

OUTSIDE EUROPE&NEW CALEDONIA SPEC

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-02050iMZEH19,ZWE219202301

main86466-12030iMZEH12,NRE210,ZWE211..LHD..(D,G,N)..EUR201901

OUTSIDE EUROPE&NEW CALEDONIA SPEC

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-12040iMZEH12,NRE210,ZWE211..LHD..(D,G,N)..EUR201901

OUTSIDE EUROPE&NEW CALEDONIA SPEC

main86467-02030iMZEH19,ZWE219202301

8646CCAMERA, FORWARD RECOGNITION

main8646C-12010iMZEH12,NRE210,ZWE211..LHD..(D,G,N)..EUR201901

OUTSIDE EUROPE&NEW CALEDONIA SPEC

main8646C-12111iMZEH19,ZWE219202301-202401

*614

main8646C-12180iMZEH19,ZWE219..D,G,N,P,S202401

*614

main8646C-12190iZWE219..C202401

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section
