Toyota COROLLA (UKP) — HEV CONTROL COMPUTER

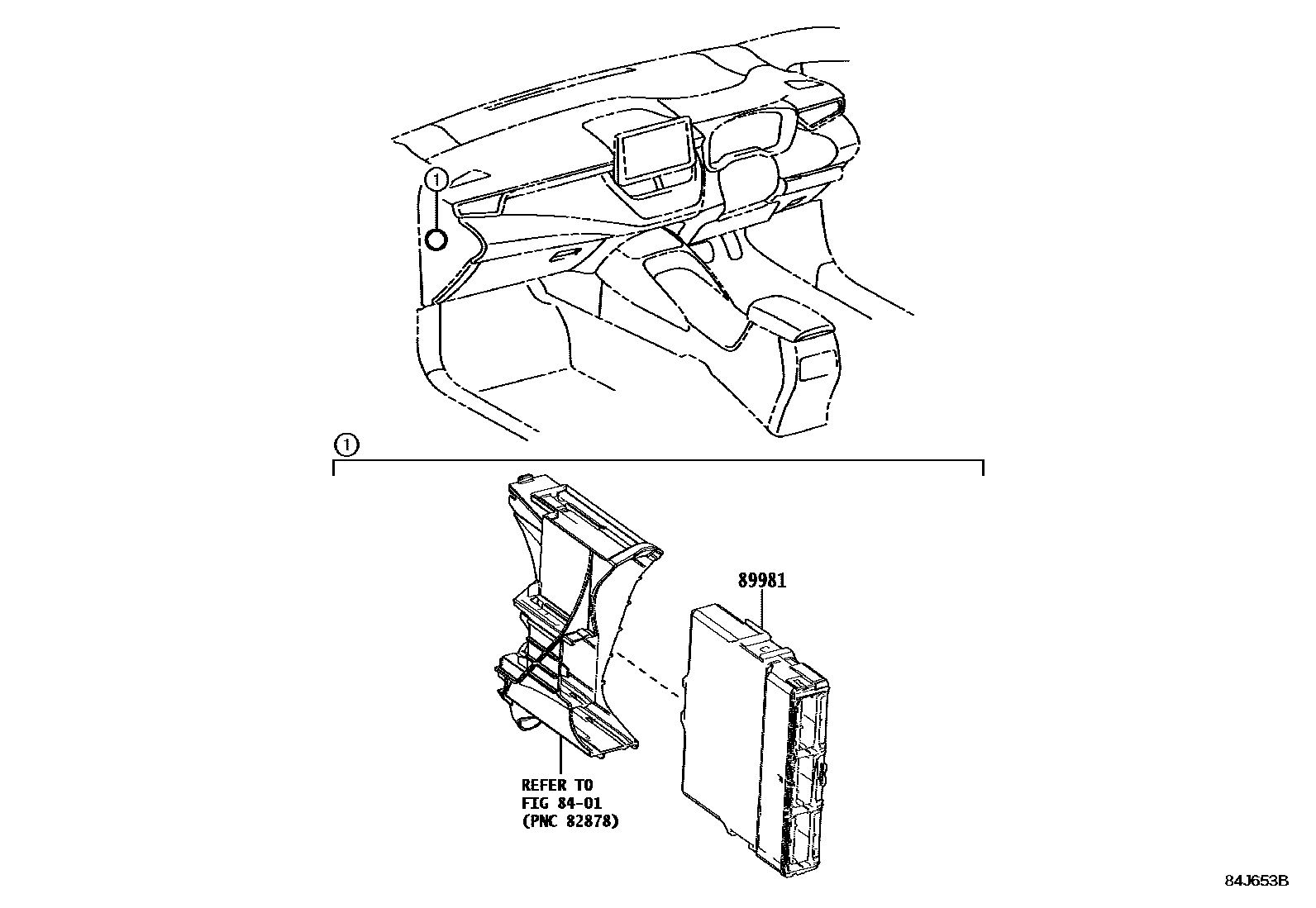

Parts diagram

8401

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-02090i201901-202010

main89981-02100i201902-202010

main89981-02190i202010-202204

main89981-02200i202010-202204

main89981-02230i202501

*614

main89981-02280i202301-202501

*614

main89981-02330i202301-202501

*614

main89981-02370i202204

main89981-02380i202204

main89981-02430i202501

*614

2 parts on this diagram · 2 diagrams in section
