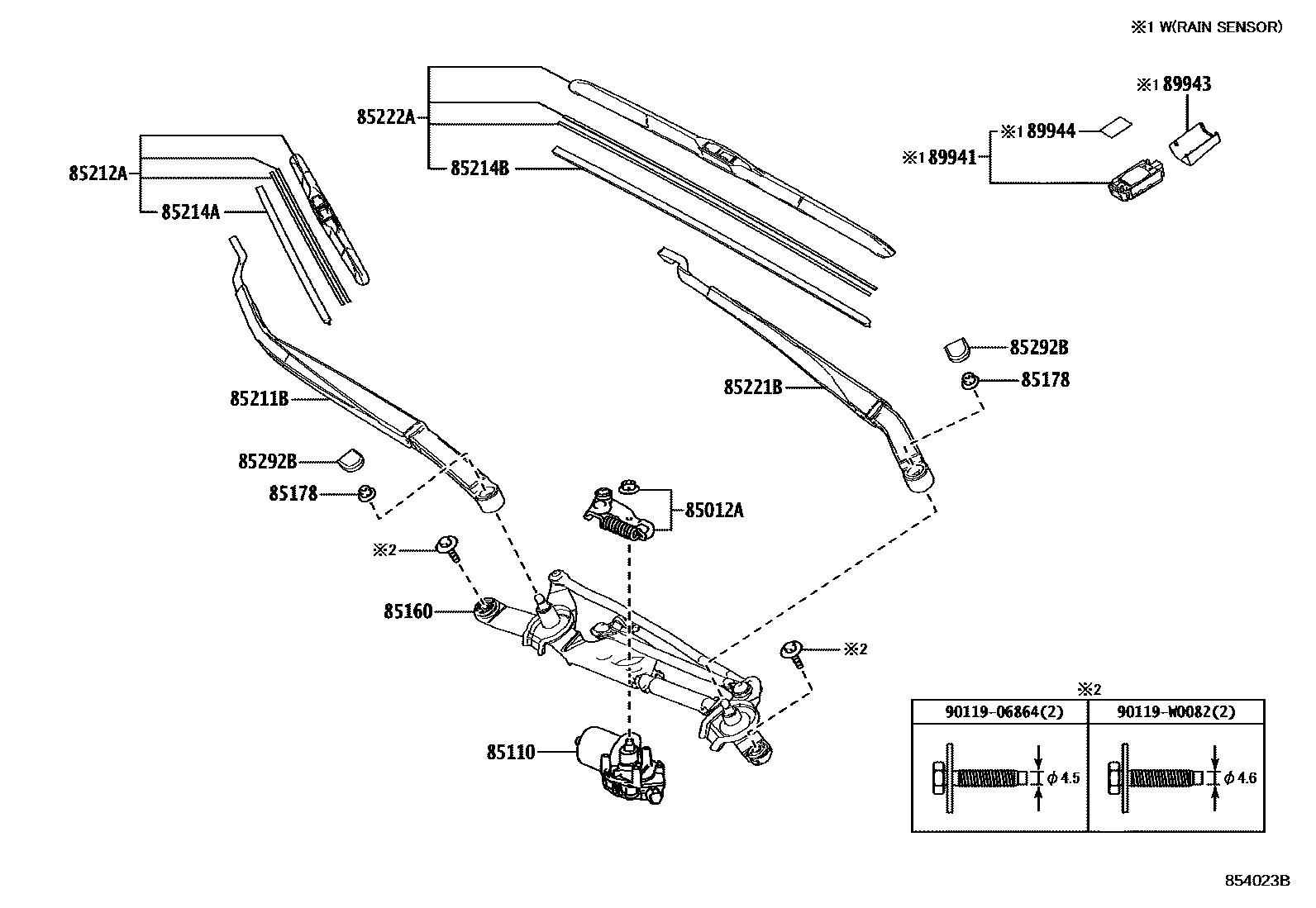

Toyota COROLLA (TUP) — WINDSHIELD WIPER
85012ACRANK SUB-ASSY, FRONT WIPER
main85012-58030iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
main85150-02430iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)201901-202301
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
main85211-02430iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
85212ABLADE, FR WIPER, RH
main85212-02420iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)202010
85214ARUBBER, WIPER, RH
main85214-68030iZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN)201901
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
main85222-02470iZWE219..LHD;MZEA11..TUR;ZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
85292BCAP, FRONT WIPER ARM HEAD
main85292-0F010×2iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
89941SENSOR, RAIN
INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP); WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT
main89941-30040iZRE21#,ZWE211..G; ZRE21#,ZWE211..N;ZRE210..RHD..EUR; ZRE210,ZWE211..G..EUR201901-202010
INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP); WINDSHIELD WIPER CONTROL-TIME ADJUSTMENT
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
89943COVER, RAIN SENSOR
main89943-12040iZRE210..G..RUS; ZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS)201901-202301
INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-*DRP(VANITY MIRROR & LAMP)
89944TAPE, RAIN SENSOR
main89944-42020iZRE210..N..EUR;ZRE21#,ZWE219..LHD..CVT..N..(GEN,RUS); ZWE219..G;ZRE211,ZWE219..N..GCC;MZEA11,ZRE210..G..(RUS,TUR)202301
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
9011906864
main90119-06864
90119W0082
main90119-W0082
16 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota COROLLA (TUP)
This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA (TUP). Key components include: CRANK SUB-ASSY, FRONT WIPER, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH.
