Toyota COROLLA (TUP) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
main85381-12360×2iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
ANGLE 0
main85381-12440×2iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)201901
ANGLE +2
main85381-33080×2iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
ANGLE -2
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
main85301-02190iZRE21#,ZWE211..G; ZRE210,ZWE211..LHD..N..EUR; ZRE210..RHD;ZRE21#,ZWE211..N; ZRE210..RHD;ZRE21#,ZWE211..N..(EUR,GEN)201901-201904
COLD AREA SPEC-COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; COLD AREA SPEC-COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNINGSENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; WASHER FLUID LEVEL WARNING SENSOR-WITH
main85301-02191iZRE21#,ZWE211..G; ZRE21#,ZWE211..N;ZRE210..RHD..EUR; ZRE210,ZWE211..LHD..N..EUR; ZRE210..RHD..EUR;ZRE21#,ZWE211..N..(EUR,GEN)201904-202011
COLD AREA SPEC-COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; COLD AREA SPEC-COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNINGSENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; WASHER FLUID LEVEL WARNING SENSOR-WITH
HIGH GRADE PACKAGE&WASHER TANK-4.8L
main85301-02270iZRE210..RHD..CVT;ZRE210..CVT..D..(GCC,GEN);ZRE210..6F..(D,N)..(EUR,GCC,GEN);ZRE21#,ZWE211..CVT..N..(EUR,GCC,GEN)201901-201904
main85301-02271iZRE211,ZWE211..N;ZRE210..RHD..CVT;ZRE210..LHD..CVT..D..(GCC,GEN);ZRE210..6F..(D,N)..(EUR,GCC,GEN);ZRE210..LHD..CVT..N..(EUR,GCC,GEN)201904-202011
main85301-02272iZWE219..D,N;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)202301
main85301-02280iZRE210,ZWE211..LHD..N..EUR; ZRE210..LHD..6F..D..EUR;ZRE210,ZWE211..LHD..N..EUR; ZRE210..N..RUS;ZRE210..6F..D..RUS;ZRE210..LHD..CVT..D..(EUR,RUS); ZRE210..RHD..CVT;ZRE210..CVT..D..GEN;ZRE210..6F..(D,N)..(EUR,GEN);ZRE21#,ZWE211..CVT..N..(EUR,GEN); ZRE210..RHD;ZRE21#,ZWE211..N..(EUR,GCC,GEN); ZRE210..RHD;ZRE21#,ZWE211..N..(EUR,GEN)201901-201904
COLD AREA SPEC-COLD AREA SPEC; COLD AREA SPEC-COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC-SUB COLD AREA SPEC; COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH; HEADLAMP CLEANER-WITH
main85301-02281iZRE210,ZWE211..LHD..N..EUR; ZRE210..LHD..6F..D..EUR;ZRE210,ZWE211..LHD..N..EUR; ZRE210..N..RUS;ZRE210..6F..D..RUS;ZRE210..LHD..CVT..D..(EUR,RUS); ZRE210..RHD..CVT;ZRE210..LHD..CVT..D..GEN;ZRE211,ZWE211..N..(EUR,GEN);ZRE210..6F..(D,N)..(EUR,GEN);ZRE210..LHD..CVT..N..(EUR,GEN); ZRE210..RHD..EUR;ZRE21#,ZWE211..N..(EUR,GCC,GEN); ZRE210..RHD..EUR;ZRE21#,ZWE211..N..(EUR,GEN)201904-202011
COLD AREA SPEC-COLD AREA SPEC; COLD AREA SPEC-COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC-SUB COLD AREA SPEC; COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH; HEADLAMP CLEANER-WITH
main85301-02282supersedes 85301-02272iMZEA11,ZRE210..N..EUR; ZRE210..6F..D..RUS;ZRE210..CVT..(D,N)..RUS; ZRE210..CVT..N..GEN;ZRE211..LHD..N..GEN;MZEA11,ZRE210..N..EUR; ZRE210..N..EUR;MZEA11..LHD..(D,N); ZRE210..N..EUR;ZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..GEN;MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN); ZRE211..LHD..N;ZRE210..CVT..N..GEN;MZEA11,ZRE210..N..EUR202011-202301
COLD AREA SPEC-COLD AREA SPEC; COLD AREA SPEC-COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC-SUB COLD AREA SPEC; COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH; HEADLAMP CLEANER-WITH
85301BCLIP, WASHER
BLACK
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-02080iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301-202302
main85330-02081iZWE211,213;ZRE211..RHD;MZEA11..6F..G;ZRE210..D..EUR;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..RHD..CVT..D;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN); ZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202302
85319DPACKING, FRONT WASHER
main85336-02250iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN); MZEA11,ZRE211..RHD;ZRE210..6F..N..GEN;ZWE211,213..N..(EUR,GEN); ZWE211,213..LHD..N..EUR; ZWE211,213..N;MZEA11,ZRE211..RHD;ZRE210..CVT..N..GCC;ZRE210..6F..N..(GCC,GEN,RUS)201901
COLD AREA SPEC-COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; COLD AREA SPEC-COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNINGSENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; WASHER FLUID LEVEL WARNING SENSOR-WITH
85330JAR ASSY, WINDSHIELD WASHER
main85315-02790iZWE219..D,N;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)202301
main85315-02860iMZEA11,ZRE211..RHD;ZRE210..6F..N..GEN;ZRE210..RHD..D..GEN;ZWE211,213..N..(EUR,GEN);ZRE210..LHD..6F..D..(EUR,GEN); ZRE210..6F..N..RUS;ZRE210..LHD..CVT..D..EUR; ZRE210..LHD..6F..D..EUR;ZWE211,213..LHD..N..EUR201901
COLD AREA SPEC-COLD AREA SPEC; COLD AREA SPEC-SUB COLD AREA SPEC
main85315-02240iMZEA11,ZRE211,ZWE211,213..G..(EUR,GCC,GEN); MZEA11,ZRE211..RHD;ZRE210..6F..N..GEN;ZWE211,213..N..(EUR,GEN); ZWE211,213..LHD..N..EUR; ZWE211,213..N;MZEA11,ZRE211..RHD;ZRE210..CVT..N..GCC;ZRE210..6F..N..(GCC,GEN,RUS)201901
COLD AREA SPEC-COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNINGSENSOR-WITH; HEADLAMP CLEANER-WITH; HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH
main85315-02850iMZEA11,ZRE210..N..EUR; ZRE210..CVT..N..GEN;ZRE211..LHD..N..GEN;MZEA11,ZRE210..N..EUR; ZRE210..G..RUS; ZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS)201901-202301
COLD AREA SPEC-COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; WASHER FLUID LEVEL WARNING SENSOR-WITH
main85325-02260iMZEA11,ZRE210..N..EUR; ZRE210..CVT..N..GEN;ZRE211..LHD..N..GEN;MZEA11,ZRE210..N..EUR; ZRE210..D..RUS;ZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS)201901-202301
COLD AREA SPEC-COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH; HEADLAMP CLEANER-WITH
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
main85316-02720iZWE211,213..N;MZEA11,ZRE211..RHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN201901
COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNINGSENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; WASHER FLUID LEVEL WARNING SENSOR-WITH
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90069-16009iMZEA11,ZRE210..N..EUR; ZRE210..CVT..N..GEN;ZRE211..LHD..N..GEN;MZEA11,ZRE210..N..EUR; ZRE210..D..RUS;ZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS); ZRE210..N..EUR;MZEA11..LHD..(D,N); ZRE210..N..EUR;ZRE210..CVT..N..GEN;ZRE210..LHD..CVT..D..GEN;MZEA11,ZRE211..LHD..(D,N)..(EUR,GEN); ZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN); ZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS)201901-202301
COLD AREA SPEC-COLD AREA SPEC; COLD AREA SPEC-COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC-COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; COLD AREA SPEC-COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC; COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNINGSENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; HEADLAMP CLEANER-WITH; HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; WASHER FLUID LEVEL WARNING SENSOR-WITH
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=450)
85373LGROMMET, WASHER
85397SWITCH ASSY,LEVEL WARNING
COLD AREA SPEC-SUB COLD AREA SPEC&HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNINGSENSOR-WITH; COLD AREA SPEC-SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH; HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH; WASHER FLUID LEVEL WARNING SENSOR-WITH
8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35750
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
9011906767
main90119-06767
90119W0089
main90119-W0089

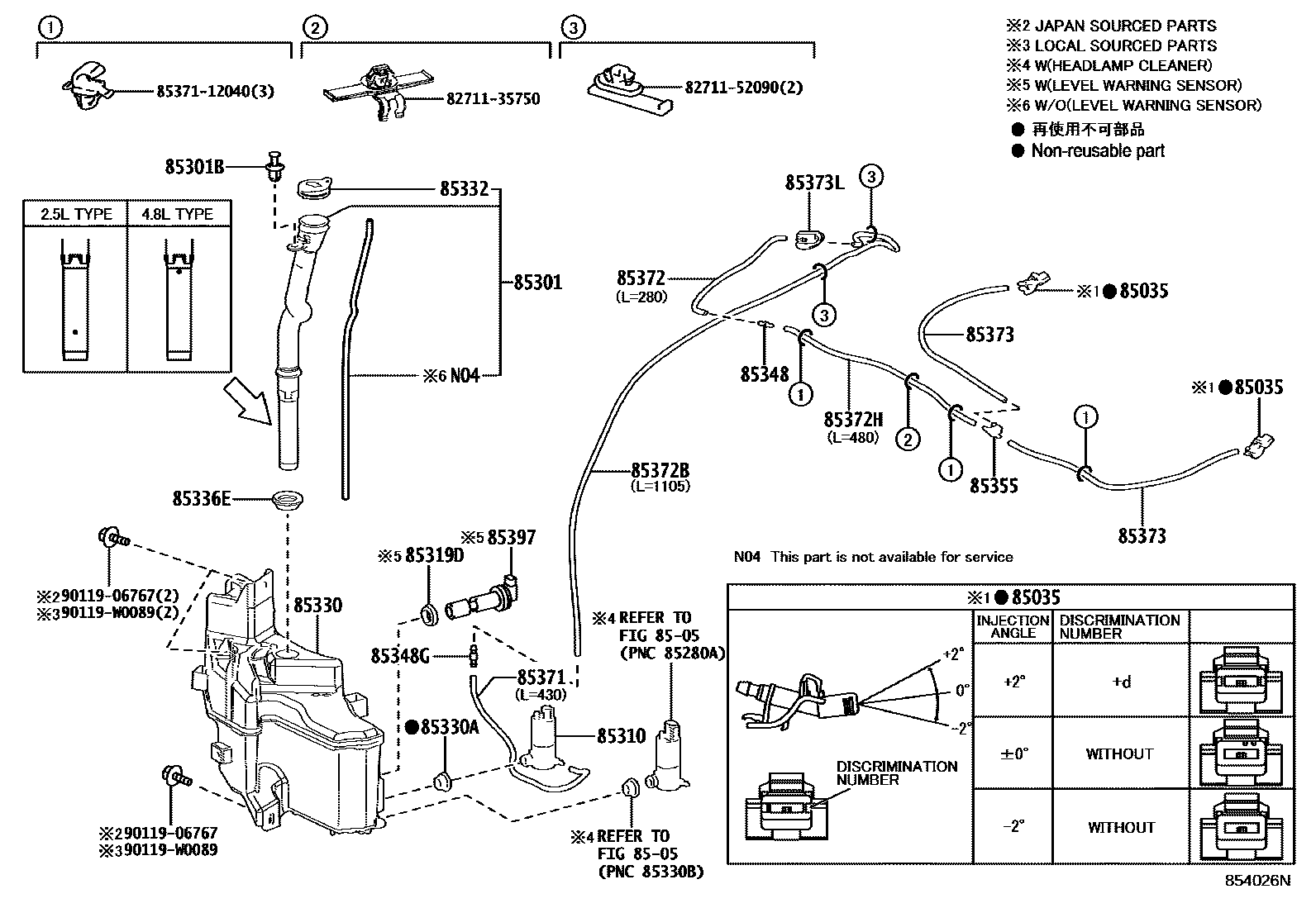

25 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota COROLLA (TUP)
This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA (TUP). Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
