Toyota COROLLA (TUP) — STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
main28021-47170i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)202301
28100STARTER ASSY
main28100-0T400supersedes 28100-0T420i1ZRFAE..ZRE210..N; 1ZRFE..ZRE210..CVT..N..GEN;1ZRFE..ZRE210..LHD..CVT..D..GEN;1ZRFAE,2ZRFE..ZRE21#..LHD..N..(EUR,GEN); 1ZRFE..ZRE210..CVT..RUS;1ZRFE..ZRE210..6F..D..RUS201901-202301
12V 1.2KW; 12V 1.2KW,COLD AREA SPEC-COLD AREA SPEC; 12V 1.2KW,COLD AREA SPEC-SUB COLD AREA SPEC
main28100-0T420i1ZRFE..ZRE210..CVT..N..GEN;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)202301
12V 1.0KW
12V 1.0KW
28140HOLDER ASSY, STARTER BRUSH
28160ARMATURE ASSY, STARTER
main28160-21070i2ZRFE..ZRE211..RHD;M15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE..ZRE210..CVT..N..GCC;1ZRFAE..ZRE210..LHD..6F..D;1ZRFE..ZRE210..6F..(GCC,GEN);M15AFKS,2ZRFE..MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)201901
main28160-21080supersedes 28160-21070i1ZRFAE..ZRE210..N; 1ZRFE..ZRE210..CVT..N..GEN;1ZRFE..ZRE210..LHD..CVT..D..GEN;1ZRFAE,2ZRFE..ZRE21#..LHD..N..(EUR,GEN); 1ZRFE..ZRE210..CVT..RUS;1ZRFE..ZRE210..6F..D..RUS201901-202301
COLD AREA SPEC-COLD AREA SPEC; COLD AREA SPEC-SUB COLD AREA SPEC
28226BSTARTER KIT, REPAIR SERVICE
main28226-37130i2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;1ZRFAE..ZRE210..LHD..D;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE..ZRE210..6F..(GCC,GEN)201901
main28226-K0040iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011
9010510592
main90105-10592
90105W0268
main90105-W0268
9017908204
main90179-08204

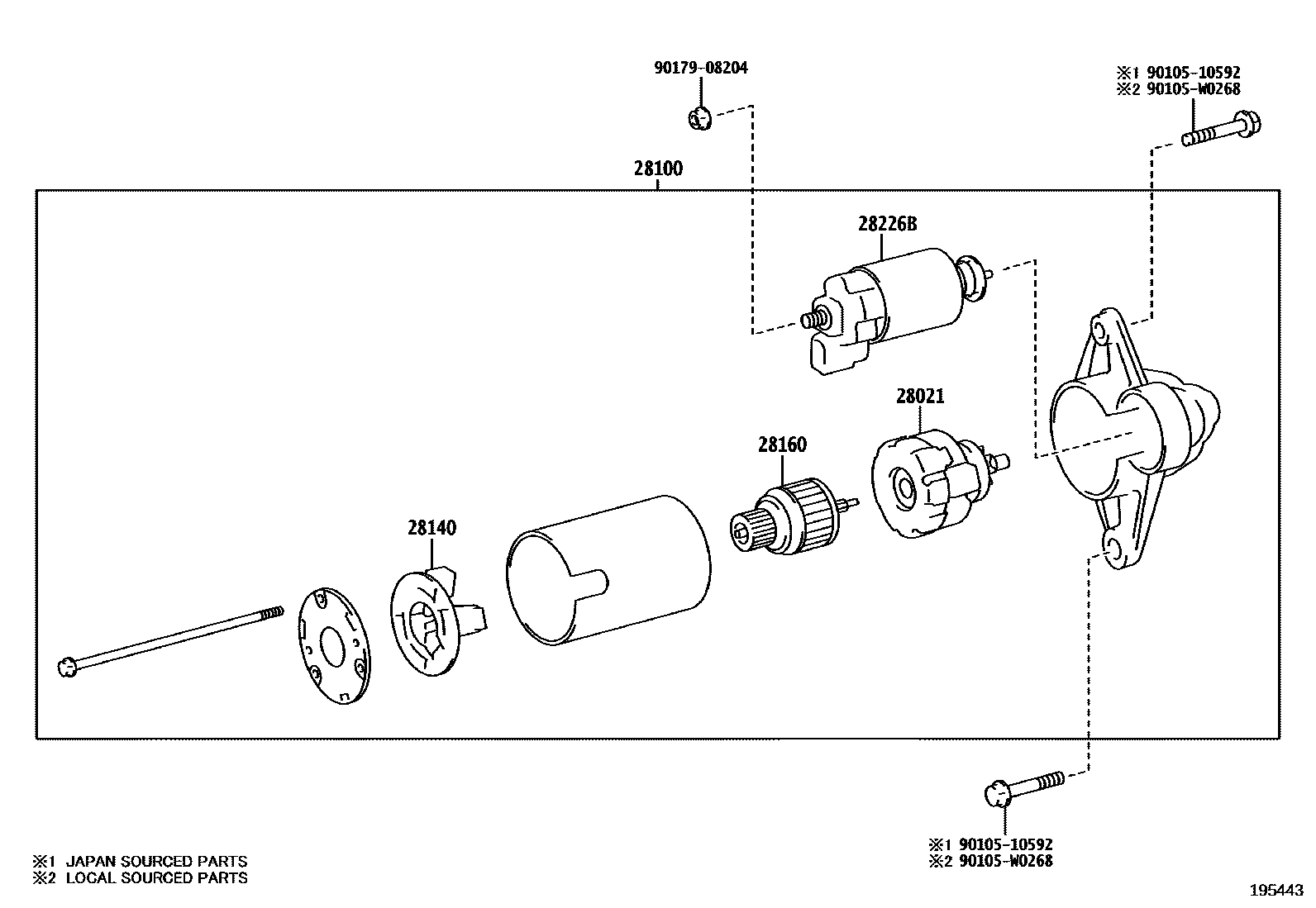

8 parts on this diagram · 2 diagrams in section
STARTER for Toyota COROLLA (TUP)
This section contains 11 genuine Toyota parts for the STARTER system of the Toyota COROLLA (TUP). Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOLDER ASSY, STARTER BRUSH, ARMATURE ASSY, STARTER, STARTER KIT, REPAIR SERVICE.
