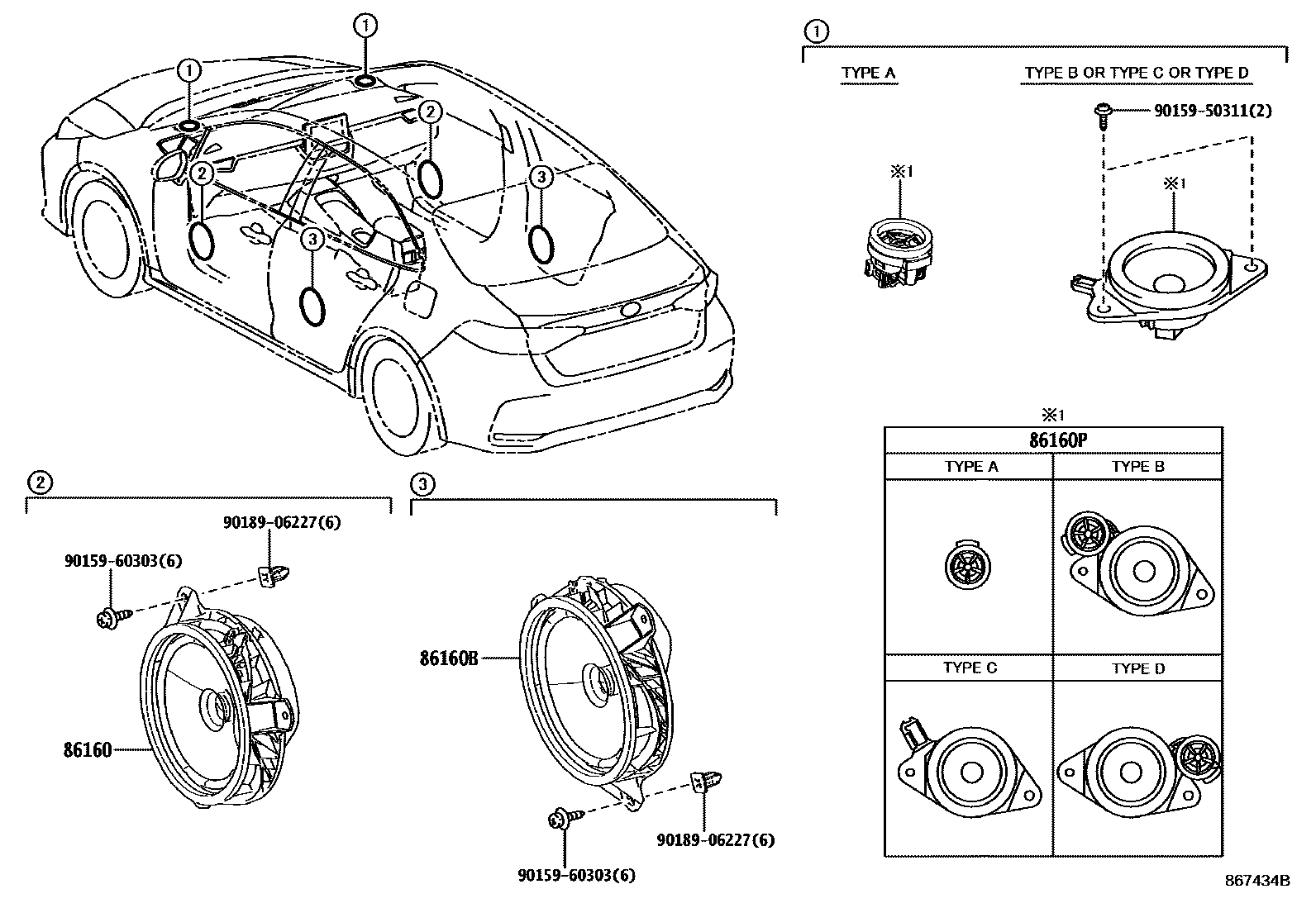

Toyota COROLLA (TUP) — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
main86160-02B80×2iZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#201901-202202
main86160-1A210×2iZWE211,213;ZRE211..RHD;MZEA11..6F..G;ZRE210..D..EUR;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..RHD..CVT..D;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)202203
86160BSPEAKER ASSY, REAR
main86160-02B80×2iZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#201901-202202
main86160-1A210×2iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202203-202301
86160PSPEAKER ASSY, FRONT NO.2
TYPE A
main86150-02170iMZEA11..G..EUR;ZRE210..6F..N..RUS;ZWE211,213..LHD..EUR;ZRE210..LHD..6F..D..EUR201901
TYPE B
TYPE D
9015950311
main90159-50311
9015960303
main90159-60303
9018906227
main90189-06227
6 parts on this diagram · 1 diagram in section
SPEAKER for Toyota COROLLA (TUP)
This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA (TUP). Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
