Toyota COROLLA (TUP) — HEATING & AIR CONDITIONING - COMPRESSOR

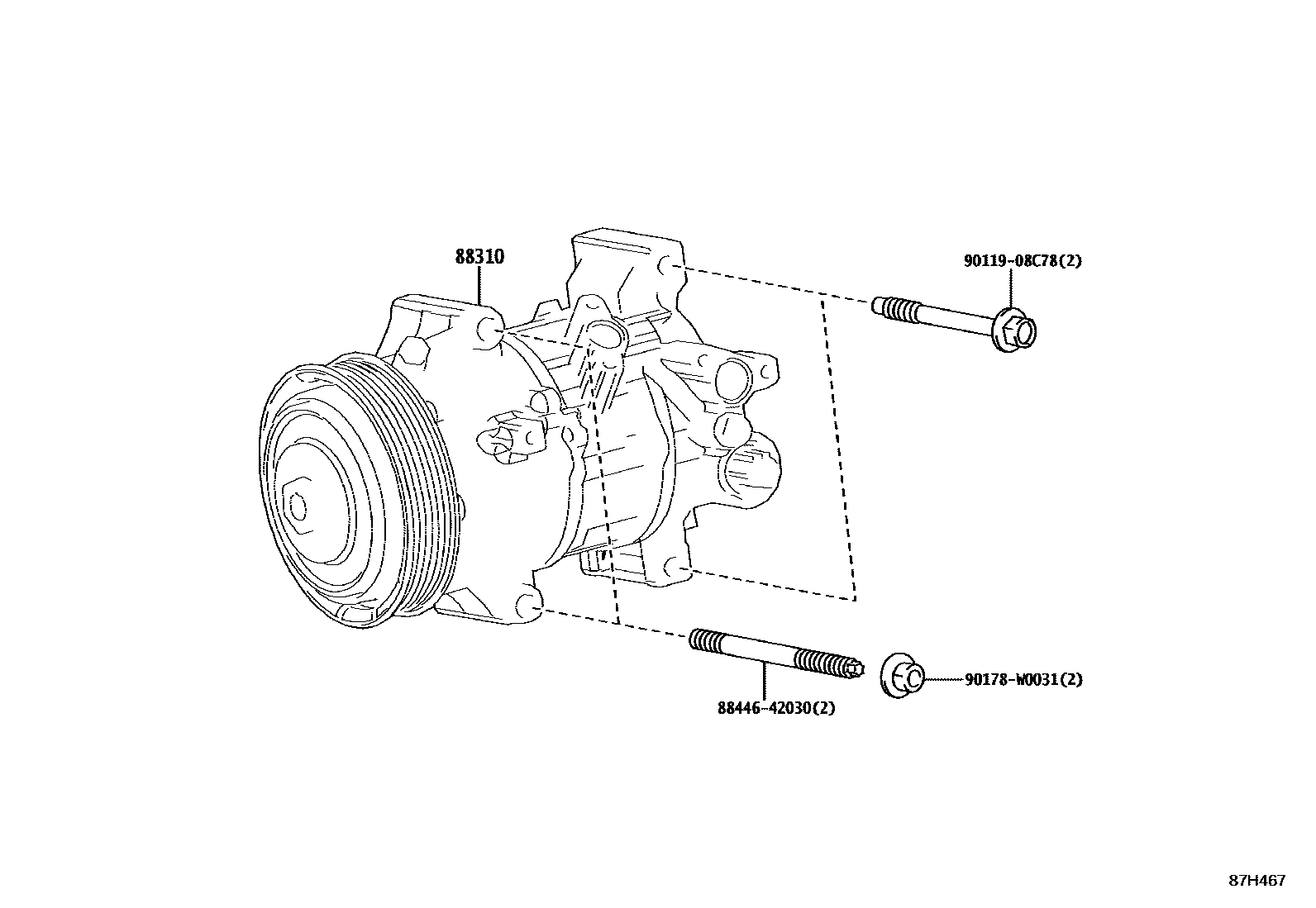

88310COMPRESSOR ASSY, W/PULLEY
AIR CONDITIONER-COOLER LESS
main88310-02790supersedes 88310-02780iZRE210..LHD..6F..D..EUR; ZRE210..N..GCC;ZRE210..RHD..CVT..D..GEN;ZRE210..6F..D..(GCC,GEN); ZRE211..G;ZRE211..RHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..LHD..CVT..D..EUR;ZRE210..RHD..CVT..D..GEN201901
AIR CONDITIONER-COOLER LESS; UKRAINE SPEC
8844642030BOLT, IDLE PULLEY
main88446-42030
9011908C78
main90119-08C78
90178W0031
main90178-W0031
4 parts on this diagram · 3 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA (TUP)
This section contains 6 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA (TUP). Key components include: COMPRESSOR ASSY, W/PULLEY, COMPRESSOR ASSY, W/MOTOR, BOLT, IDLE PULLEY.
