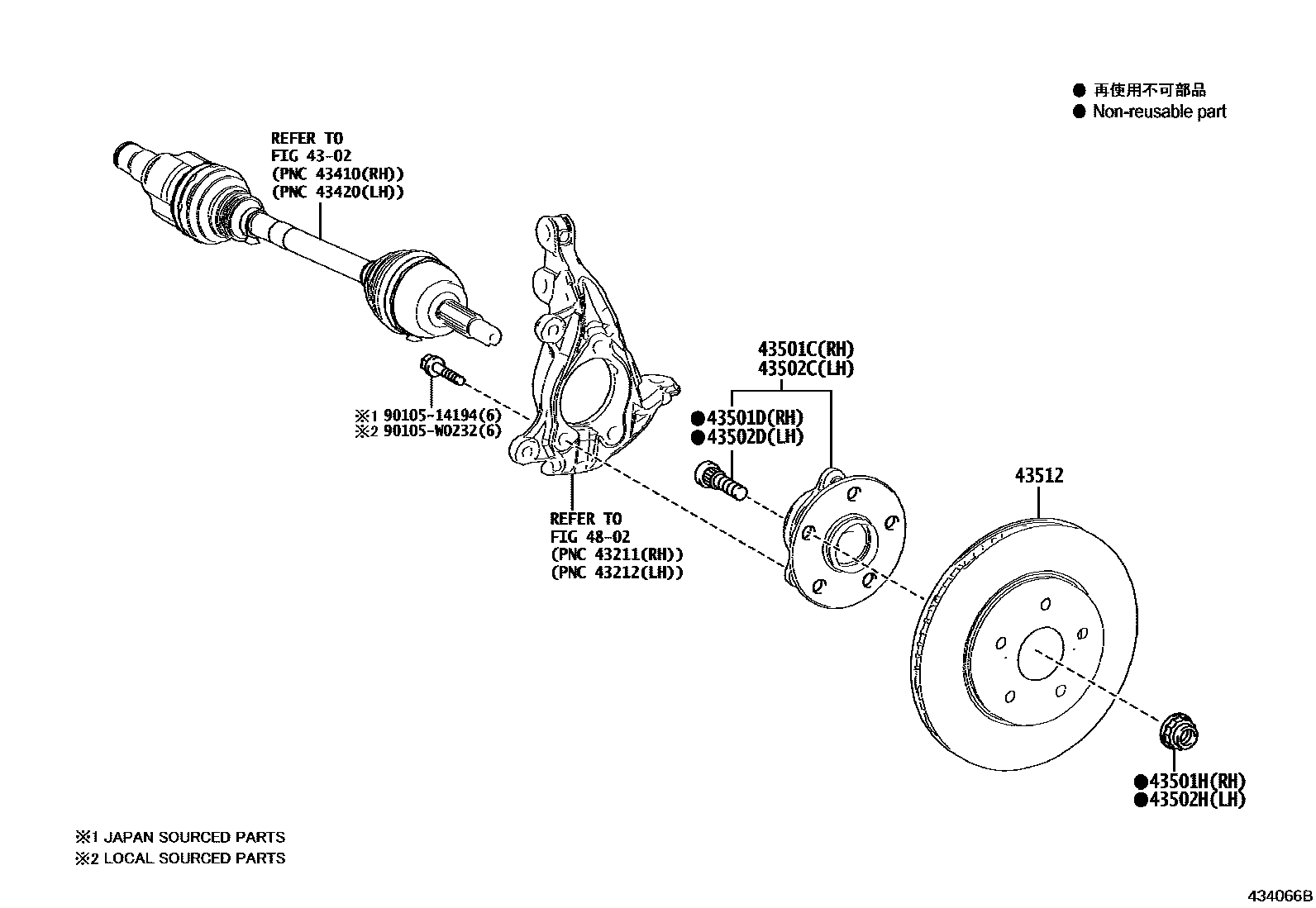

Toyota COROLLA (TUP) — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-F4010i201901-202301

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201901-202012

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201901-202012

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-F4010i201901-202012

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201901-202012

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201901-202012

43512DISC, FRONT

main43512-02390×2supersedes 43512-02430i201901

main43512-02430×2i202301

BRAKE MASTER CYLINDER & BOOSTER-FOR ADVICS; BRAKE MASTER CYLINDER & BOOSTER-FOR BOSCH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

90105W0232

main90105-W0232

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA (TUP)

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA (TUP). Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
