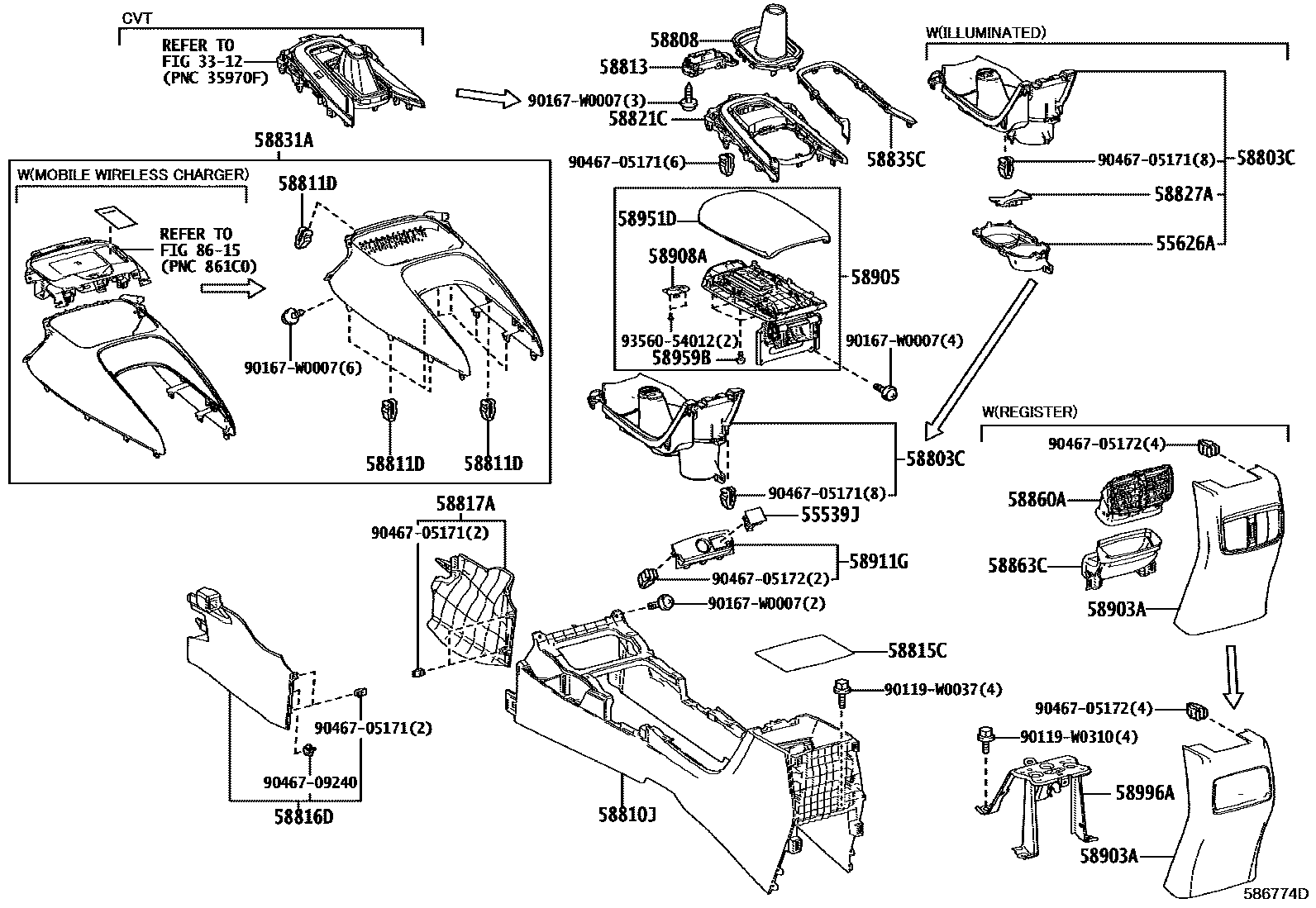

Toyota COROLLA (TUP) — CONSOLE BOX & BRACKET
3312
55539JCOVER, SPARE SWITCH HOLE
main55539-02290-C0iZRE211..G;ZWE211..GCC,GEN;ZRE210..6F..N..RUS;MZEA11,ZRE211..RHD;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN201901
BLACK,TRIM0#,2#
55626ARETAINER, INSTRUMENT PANEL UNDER TRAY WALL
ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR)
ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR)
ILLUMINATED ENTRY SYSTEM-WITH(CENTER TRAY & *CUH & DOOR)
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
ENTRY GRADE&SEAT COVER MATERIAL-FABRIC
BLACK,TRIM0#,2#
ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR)
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SUN VISOR-*DRP(VANITY MIRROR & LAMP),BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR)
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SUN VISOR-*DRP(VANITY MIRROR & LAMP),BLACK,TRIM0#,2#
ILLUMINATED ENTRY SYSTEM-WITH(CENTER TRAY & *CUH & DOOR)
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER(MIDDLE GRADE),BLACK,TRIM0#,1#,2#
ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR)
LIGHT GRADE
ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR)
ILLUMINATED ENTRY SYSTEM-WITH(CENTER TRAY & *CUH & DOOR)
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,1#,20,21
BLACK/RED,TRIM20
BLACK/GR RED,TRIM20
58810JBOX ASSY, CONSOLE
BLACK,TRIM0#,2#
main58810-02081-C0iMZEA11..TUR;ZWE219..G,N;ZRE211..LHD..N;ZWE219..D..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202301
BLACK,TRIM0#,1#,2#
58811DCLIP(FOR CONSOLE BOX)
58813BOX, CONSOLE, UPPER
main58813-02250iMZEA11..6F..G;MZEA11..RHD..6F;ZRE210..RHD..6F..GEN;ZRE210..LHD..6F..D..(EUR,GCC,GEN);ZRE210..LHD..6F..N..(GCC,GEN,RUS)201901
58815CCARPET, CONSOLE BOX
main58815-02410iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901
58816DINSERT, CONSOLE BOX, FRONT NO.1
main58816-02380-C0iMZEA11..TUR;ZRE211..LHD..N;ZWE219..D..TUR;ZWE219..LHD..(G,N);MZEA11,ZRE210..N..EUR;ZRE210..LHD..CVT..(G,N)..(GEN,RUS)202301
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
main58817-02390-C0iMZEA11..TUR;ZRE211..LHD..N;ZWE219..D..TUR;ZWE219..LHD..(G,N);MZEA11,ZRE210..N..EUR;ZRE210..LHD..CVT..(G,N)..(GEN,RUS)202301
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
58821CPANEL, CONSOLE, UPPER
58827AGARNISH, CONSOLE BOX POCKET
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER(MIDDLE GRADE)
OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SUN VISOR-*DRP(VANITY MIRROR & LAMP)&SEAT COVER MATERIAL- FOR GR SPORT
ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR)
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
BLACK/SHELL,TRIM0#
TURKEY SPEC,BLACK/BLACK,TRIM2#
SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&WIRELESSCHARGER-WITH,BLACK/BLACK,TRIM2#
BLACK/SHELL,TRIM0#
main58831-02260-C0iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
BLACK,TRIM0#
main58831-02260-C1iZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
BLACK,TRIM2#
main58831-02260-C2iZWE219..N;ZRE210..N..EUR;ZWE219..D..TUR;MZEA11..6F..TUR;MZEA11..6F..N..EUR;ZRE210..CVT..N..(GEN,RUS);MZEA11,ZRE211..LHD..CVT..(D,N)202301
BLACK/LT.GRAY,TRIM1#
BLACK/SHELL,TRIM0#
SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&WIRELESSCHARGER-WITH,BLACK/BLACK,TRIM2#
HIGH GRADE PACKAGE&SEAT LUMBAR SUPPORT-WITH,BLACK/GRAY,TRIM2#
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WITH&WIRELESS CHARGER-WITH,BLACK/LT.GRAY/GRAY,TRIM1#
SEAT COVER MATERIAL- LEATHER,BLACK/BLACK,TRIM2#
SEAT COVER MATERIAL- LEATHER,BLACK/SHELL,TRIM0#
GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT,BLACK/RED,TRIM2#
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-WITH,BLACK/GRAY,TRIM1#
SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM2#
GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT&SEAT LUMBAR SUPPORT-WITH,BALCK/GRAY,TRIM21
SEAT COVER MATERIAL- LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR),BLACK/SHELL,TRIM0#
GR SPORT&SEAT COVER MATERIAL-FOR GR SPORT,BLACK/RED,TRIM2#
WIRELESS CHARGER-WITH,BLACK/FROMAGE,TRIM0#
WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM2#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR),BLACK/FROMAGE,TRIM0#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR),BLACK/BLACK,TRIM2#
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&WIRELESS CHARGER-WITH,BLACK/FROMAGE,TRIM0#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM2#
HIGH GRADE PACKAGE&SEAT LUMBAR SUPPORT-WITH,BLACK/FROMAGE/GRAY,TRIM0#
GR SPORT&SEAT LUMBAR SUPPORT-WITH&WIRELESS CHARGER-WITH,BLACK/BLACK/GR RED,TRIM2#
SEAT HEATER-WITH(DRIVER & PASSENGER)&WIRELESS CHARGER-WITH,BLACK/FROMAGE,TRIM0#
SEAT LUMBAR SUPPORT-WITH&WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM1#
58835CORNAMENT, CONSOLE BOX
INSTRUMENT FINISH PANEL-SILVER PAINT & BLACK&INSTRUMENT PANEL CENTER CLUSTER-SILVER PAINT & PIANO BLACK&MULTI INFORMATION DISPLAY-7INCH DISPLAY
58860AREGISTER ASSY, CONSOLE BOX
COOLER REAR DUCT-WITH
main58860-02081iZWE219..G,N;ZRE211..LHD..N;MZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..CVT..(G,N)..(GEN,RUS)202401
58863CDUCT, CONSOLE BOX, NO.3
COOLER REAR DUCT-WITH
58903APANEL SUB-ASSY, CONSOLE REAR END
COOLER REAR DUCT-WITH,BLACK,TRIM0#,2#
AZERBAIJAN SPEC&ENTRY GRADE,BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
SEAT COVER MATERIAL-FABRIC,BLACK,TRIM0#,2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/SHELL,TRIM2#
BLACK/ORCHID BROWN,TRIM0#
SEAT COVER MATERIAL-FOR GR SPORT,BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM2#
SEAT COVER MATERIAL- LEATHER,BLACK/ORCHID BROWN,TRIM0#
SEAT COVER MATERIAL-FOR GR SPORT,BLACK/GRAY,TRIM2#
DARK GREY,TRIM1#,2#
BLACK/BLACK,TRIM2#
BLACK/ORCHID BROWN,TRIM0#
DARK GREY,TRIM1#,2#
main58905-02F60-C0supersedes 58905-02F50-C0iMZEA11,ZRE211..RHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN201901
CONSOLE COMPARTMENT DOOR-WITHOUT(STITCH & SLIDE MECHANISM),BLACK,TRIM2#
main58905-02F60-E0supersedes 58905-02F50-E0iZRE210..D..RUS;ZRE211..LHD..N;ZRE210..6F..N..EUR;MZEA11..LHD..6F..(D,N);ZRE210..CVT..N..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
CONSOLE COMPARTMENT DOOR-WITHOUT(STITCH & SLIDE MECHANISM),ORCHID BROWN,TRIM0#
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/ORCHID BROWN,TRIM0#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-33030iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA1201901
58911GPANEL, BOX, NO.1
main58911-02380-C0iZRE210..N..EUR;ZRE210..6F..D..RUS;ZRE210..CVT..D..GCC;MZEA11,ZRE211..LHD..(D,N);ZRE210..LHD..CVT..(GEN,RUS)201901-202301
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
58951DDOOR, CONSOLE COMPARTMENT, OUTER
BLACK,TRIM2#
SEAT COVER MATERIAL-FOR GR SPORT,BLACK/GRAY,TRIM2#
ORCHID BROWN,TRIM0#
BLACK,TRIM2#
SEAT COVER MATERIAL-FOR GR SPORT,BLACK/GRAY,TRIM2#
ORCHID BROWN,TRIM0#
DARK GREY,TRIM1#,2#
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
DARK GREY,TRIM1#,2#
main58951-02D50-C0supersedes 58951-02D40-C0iZRE210..N..EUR;ZWE219..D..TUR;ZRE210..LHD..CVT..N..(GEN,RUS)202301
ENTRY GRADE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
main58951-02D50-E0supersedes 58951-02D40-E0iMZEA11..6F..N;ZRE210..N..EUR;ZRE210..D..RUS;ZRE211..LHD..N;MZEA11,ZWE219..LHD..D;ZRE210..CVT..N..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202301
ORCHID BROWN,TRIM0#
HIGH GRADE PACKAGE&SEAT COVER MATERIAL-LEATHER(MIDDLE GRADE),ORCHID BROWN,TRIM0#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-02181iZWE211,213;ZRE211..RHD;MZEA11..6F..G;ZRE210..D..EUR;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..RHD..CVT..D;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);MZEA11,ZRE211..202112
8615
90119W0037
main90119-W0037
90119W0310
main90119-W0310
90167W0007
main90167-W0007
9046705171
main90467-05171
9046705172
main90467-05172
9046709240
main90467-09240
9356054012
main93560-54012
32 parts on this diagram · 4 diagrams in section
