Toyota COROLLA/TRUENO — PARTIAL ENGINE ASSEMBLY

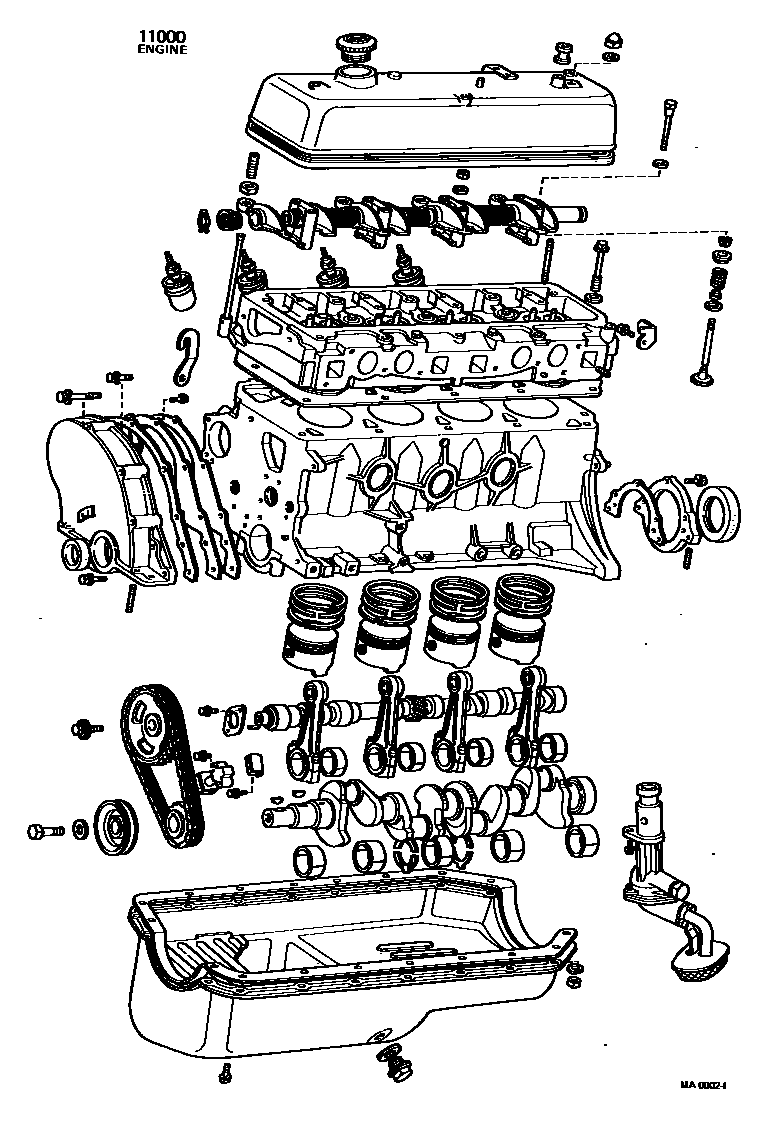

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-13030i197808-198107
main19000-24160i197408-197511
main19000-24161i197511-197705
sub12302-19015
sub33119-12021
main19000-24162i197705-197710
main19000-24163i197710-198107
main19000-24170i197408-197511
main19000-24171i197511-197705
sub12302-19015
sub33119-12021
main19000-24172i197705-197710
main19000-24173i197710-197908
main19000-24210i197508-197705
SWEDEN SPEC
sub12302-19015
sub33119-12021
main19000-24211i197705-197708
SWEDEN SPEC
main19000-24212i197708-197710
SWEDEN SPEC
sub19000-24213
main19000-24250i197604-197705
AUSTRALIA SPEC
sub12302-19015
sub33119-12021
main19000-24251i197705-197708
AUSTRALIA SPEC
main19000-24252i197708-197710
AUSTRALIA SPEC
main19000-24253i197710-197908
sub19000-24213
main19000-26060i197408-197511
main19000-26061i197511-197607
sub90116-10013
main19000-26062i197607-197701
main19000-26063i197701-197708
main19000-26064i197708-197808
main19000-26070i197408-197607
sub90116-10013
main19000-26071i197607-197701
main19000-26072i197701-197708
main19000-26073i197708-197808
main19000-26133i197808-197908
main19000-26143i197808-197908
main19000-26170i197408-197611
sub90116-10013
main19000-26240i197611-197703
main19000-26241i197805-197902
sub19000-26242
sub83520-14021
main19000-27014i197703-197805
sub19000-27015

1 parts on this diagram · 4 diagrams in section
