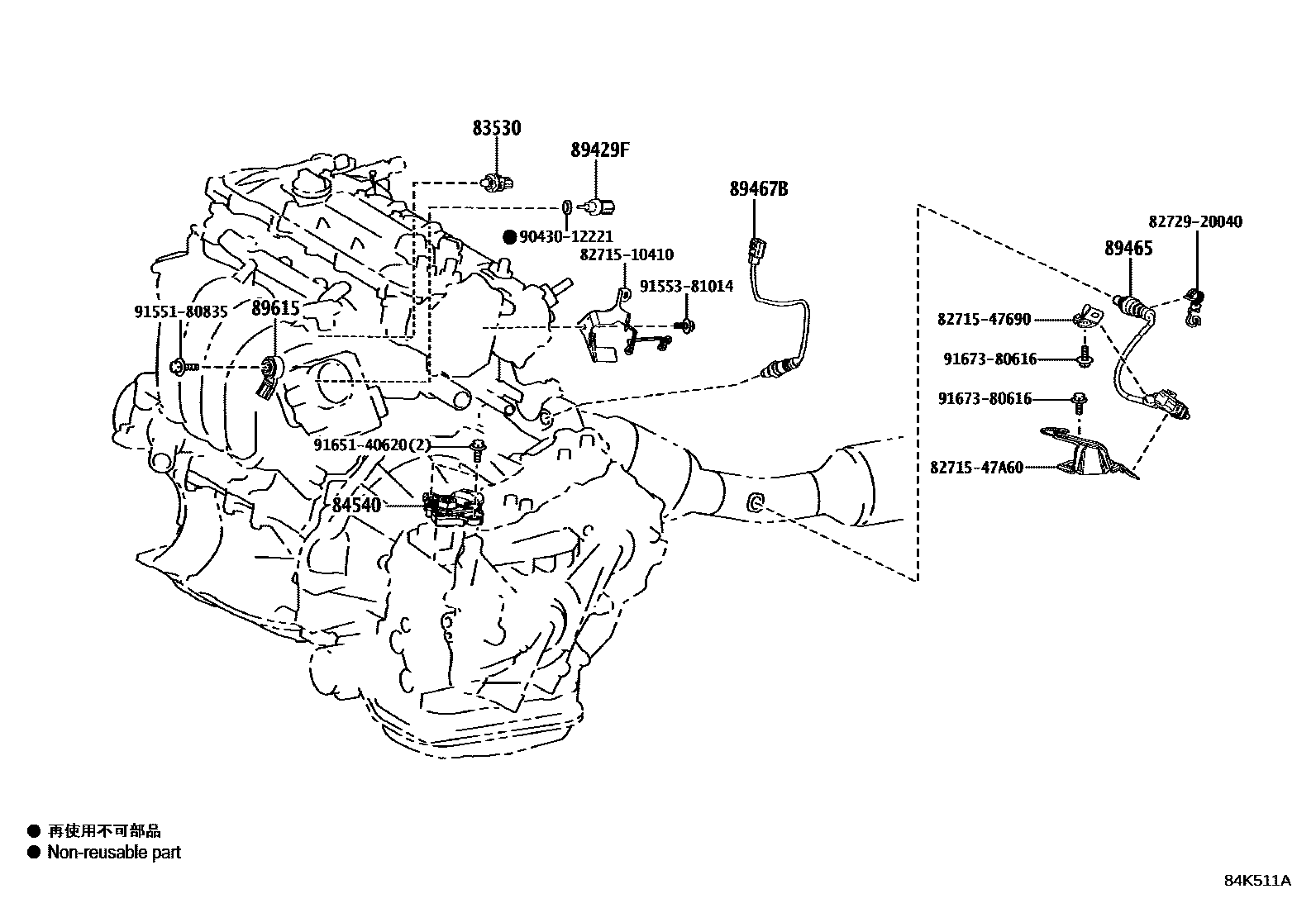

Toyota COROLLA/TOURING — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1STEERING 0011 1DOOR & ROOF 0012 1FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12060iZRE212201909

84540SWITCH ASSY, NEUTRAL START

main84540-52070iZRE212201909

89429FSENSOR, TEMPERATURE

main89429-12010iZRE212201909

89465SENSOR, OXYGEN

main89465-47090iZRE212201909

89467BSENSOR, AIR FUEL RATIO

main89467-12260iZRE212201909

main89467-12340iZWE219202210

89615SENSOR, KNOCK CONTROL

main89615-20090iZRE212201909

8271510410BRACKET,WIRING HARNESS CLAMP

main82715-10410

8271547690BRACKET,WIRING HARNESS CLAMP

main82715-47690

8271547A60BRACKET,WIRING HARNESS CLAMP

main82715-47A60

8272920040

main82729-20040

9043012221

main90430-12221

9155180835

main91551-80835

9155381014

main91553-81014

9165140620

main91651-40620

9167380616

main91673-80616

15 parts on this diagram · 12 diagrams in section
