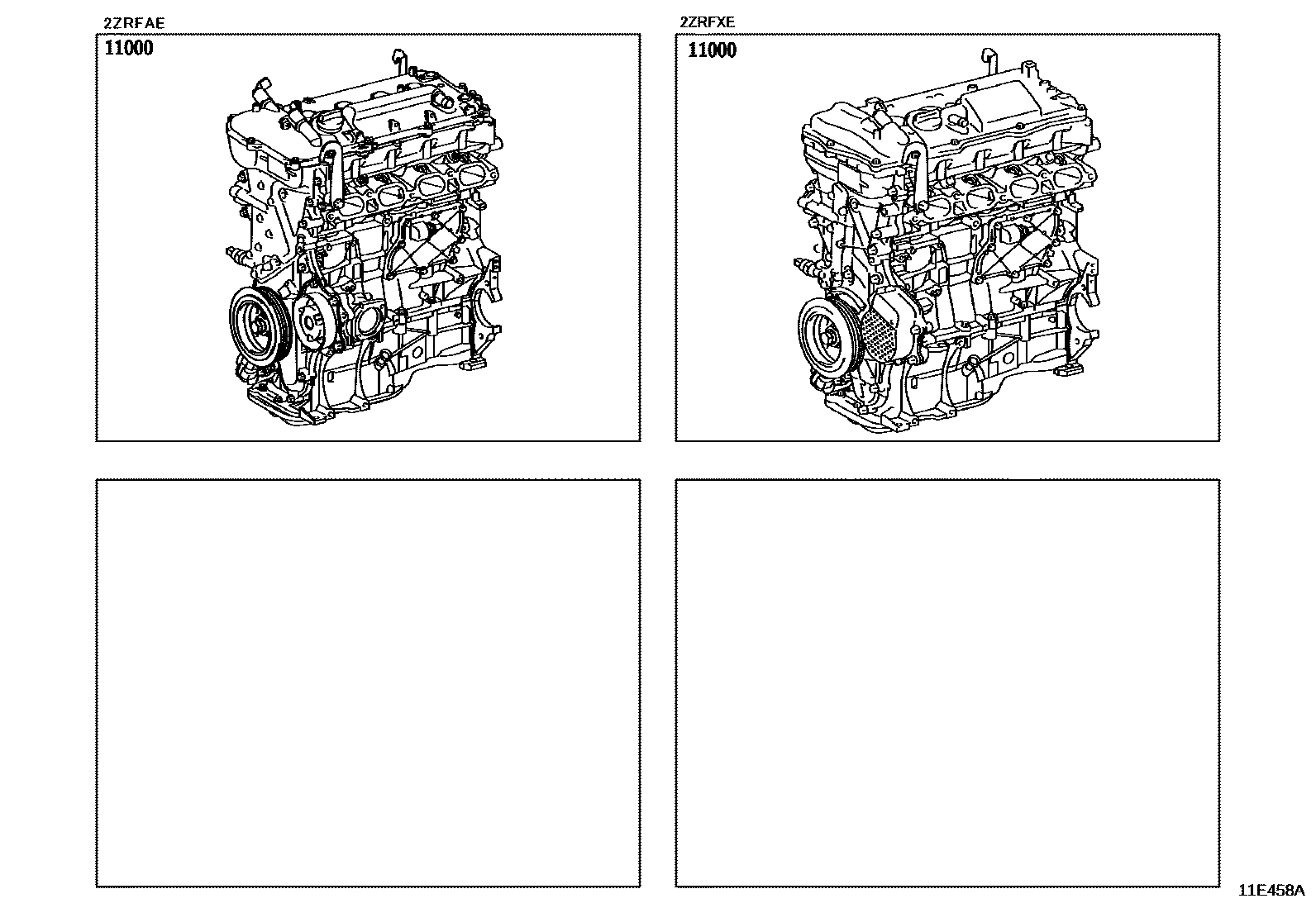

Toyota COROLLA/TOURING — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-37870i201909

main19000-37A80i202210

1 parts on this diagram · 1 diagram in section
