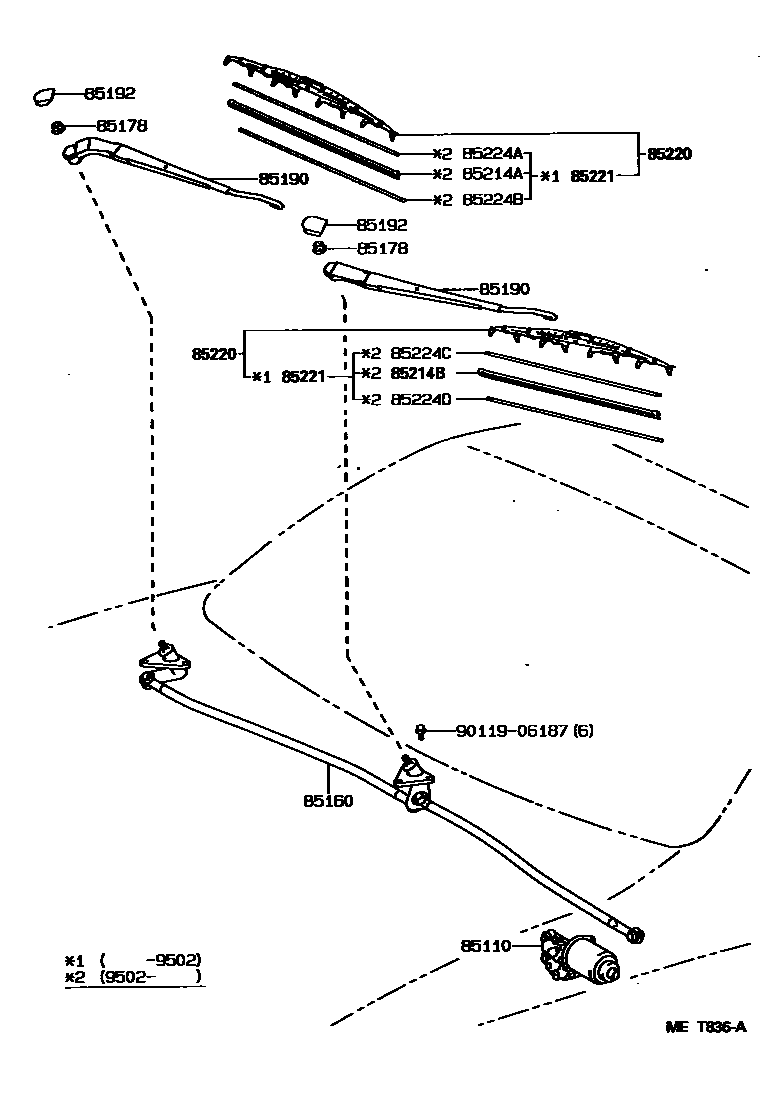

Toyota COROLLA SPRINTER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12800iAE102199402-199605

85160LINK ASSY, WINDSHIELD WIPER

main85150-12810iAE102199402-199605

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iAE102199402-199605

85190ARM ASSY, WINDSHIELD WIPER

main85211-12291iAE102199402-199605

RH

main85221-12261iAE102199402-199605

LH

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iAE102199402-199605

85214ARUBBER, WIPER, RH

main85214-30250iAE102199502-199605

85214BRUBBER, WIPER, LH

main85214-20320iAE102199502-199605

sub85214-20330

85220BLADE ASSY, WINDSHIELD WIPER

main85212-23070iAE102199402-199605

RH

main85222-12692iAE102199402-199605

LH

85221BLADE, WINDSHIELD WIPER

main85213-30250iAE102199402-199502

RH

main85223-30400iAE102199402-199502

LH

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-30380iAE102199502-199605

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-30380iAE102199502-199605

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-30430iAE102199502-199605

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-30420iAE102199502-199605

9011906187

main90119-06187

14 parts on this diagram · 1 diagram in section
