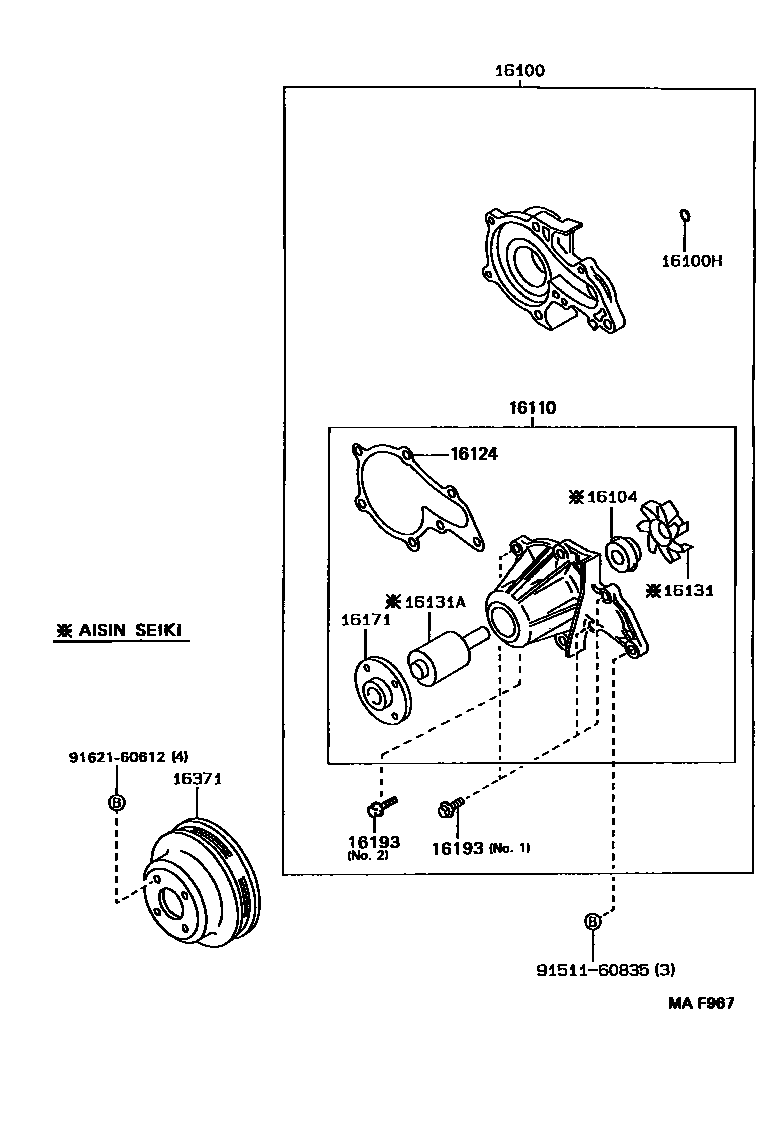

Toyota COROLLA SPRINTER — WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-19265i199402-199605

16100HRING, O(FOR WATER PUMP)

main96711-24035i199402-199502

main96761-24035i199502-199605

16104SEAL SET, WATER PUMP

main16104-16040i199402-199503

main16104-74010i199503-199605

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19175i199402-199605

AISAN

main16110-19185i199402-199605

AISIN SEIKI

16124GASKET, WATER PUMP COVER

main16124-16050i199402-199605

AISIN SEIKI

main16124-16060i199402-199605

AISAN

16131ROTOR, WATER PUMP

main16131-16020i199402-199605

16131ABEARING, WATER PUMP

main90369-35071i199402-199605

16171SEAT, WATER PUMP PULLEY

main16171-10012i199402-199605

AISIN SEIKI

main16171-15070i199402-199605

AISAN

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011×3i199505-199605

AISIN SEIKI, NO.1

main16193-15090i199505-199605

AISIN SEIKI, NO.2

main16193-15100×4i199402-199605

AISAN

16371PULLEY, FAN

main16371-02030i199408-199605

(L)

main16371-15050i199402-199502

(J)

main16371-15070i199502-199604

(J)

main16371-15071i199604-199605

(J)

9151160835

main91511-60835

9162160612

main91621-60612

12 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota COROLLA SPRINTER

This section contains 12 genuine Toyota parts for the WATER PUMP system of the Toyota COROLLA SPRINTER. Key components include: PUMP ASSY, ENGINE WATER, RING, O(FOR WATER PUMP), SEAL SET, WATER PUMP, PUMP ASSY, WATER, W/O COUPLING, GASKET, WATER PUMP COVER.
