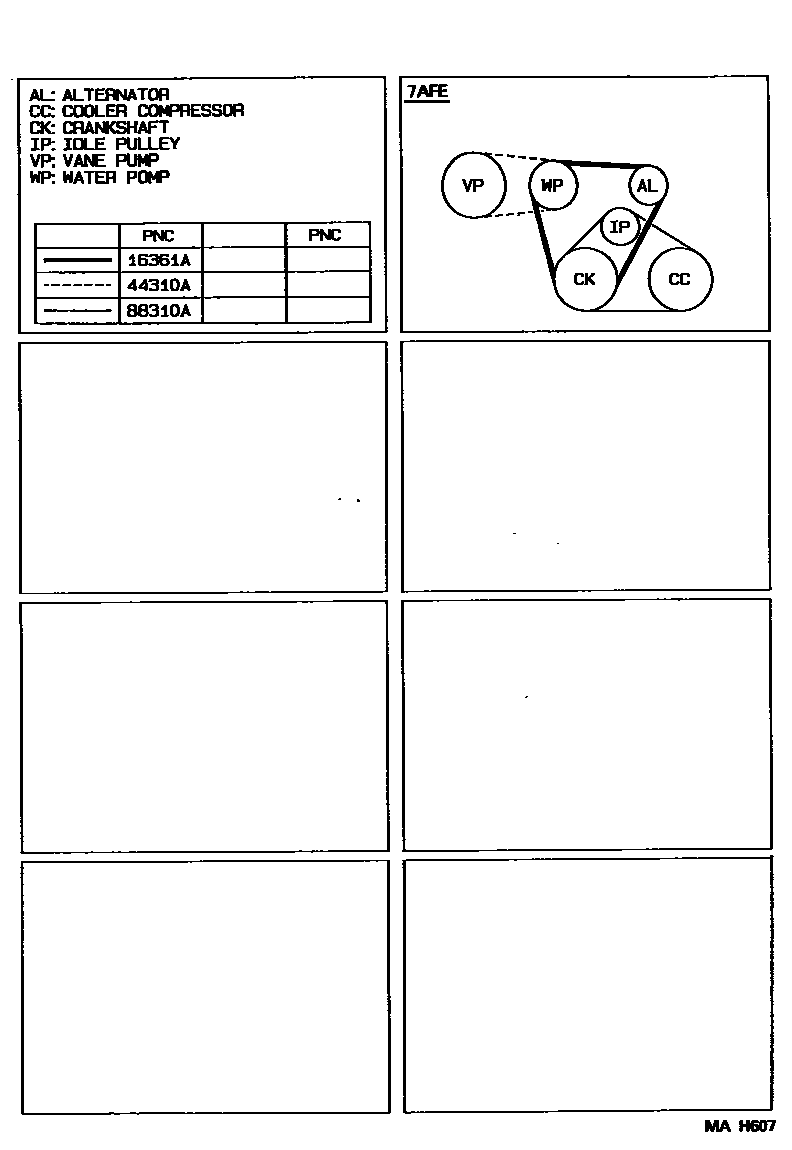

Toyota COROLLA SPRINTER — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i199402-199605

(L)

main99365-20970i199402-199605

(J)

44310ABELT, V(FOR VANE PUMP)

main99363-80630i199402-199605

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02354i199402-199508

DOP

main90916-02354i199508-199605

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA SPRINTER

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota COROLLA SPRINTER. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
