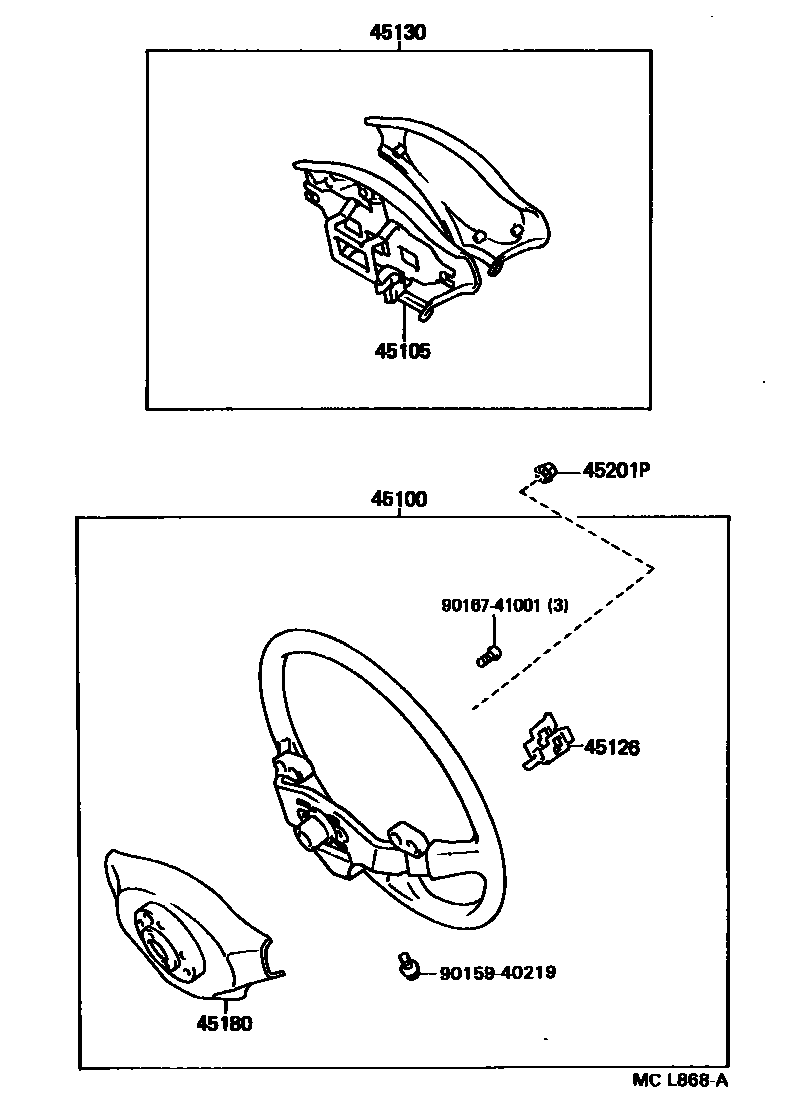

Toyota COROLLA SPRINTER — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-12650-P0i199402-199505

3-SPOKE,LEATHER,SHADOW GRAY,TRIM1#

main45100-12810-B0i199505-199605

3-SPOKE,LEATHER,SHADOW GRAY,TRIM1#

main45100-12820-B0i199505-199605

4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#

main45100-2B231-B0i199402-199505

4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12160i199402-199505

main45105-12210i199505-199605

45126PLATE, STEERING WHEEL PAD SET

main45126-12020i199402-199505

45130BUTTON ASSY, HORN

main45130-12710-P0i199402-199505

SHADOW GRAY,TRIM1#

main45130-12724-P0i199402-199505

W(*80),SHADOW GRAY,TRIM1#

main45130-12870-B0i199508-199605

SHADOW GRAY,TRIM1#

main45130-1A010-B0i199505-199508

SHADOW GRAY,TRIM1#

45180COVER SUB-ASSY, STEERING WHEEL

main45180-12140-B0i199402-199505

SHADOW GRAY,TRIM1#

main45180-12210-B0i199505-199605

SHADOW GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071i199402-199605

9015940219

main90159-40219

9016741001

main90167-41001

8 parts on this diagram · 3 diagrams in section

STEERING WHEEL for Toyota COROLLA SPRINTER

This section contains 25 genuine Toyota parts for the STEERING WHEEL system of the Toyota COROLLA SPRINTER. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, BUTTON SUB-ASSY, HORN(FOR STEERING WHEEL ASSY), PLATE, STEERING WHEEL PAD SET, BUTTON, HORN, NO.2.
