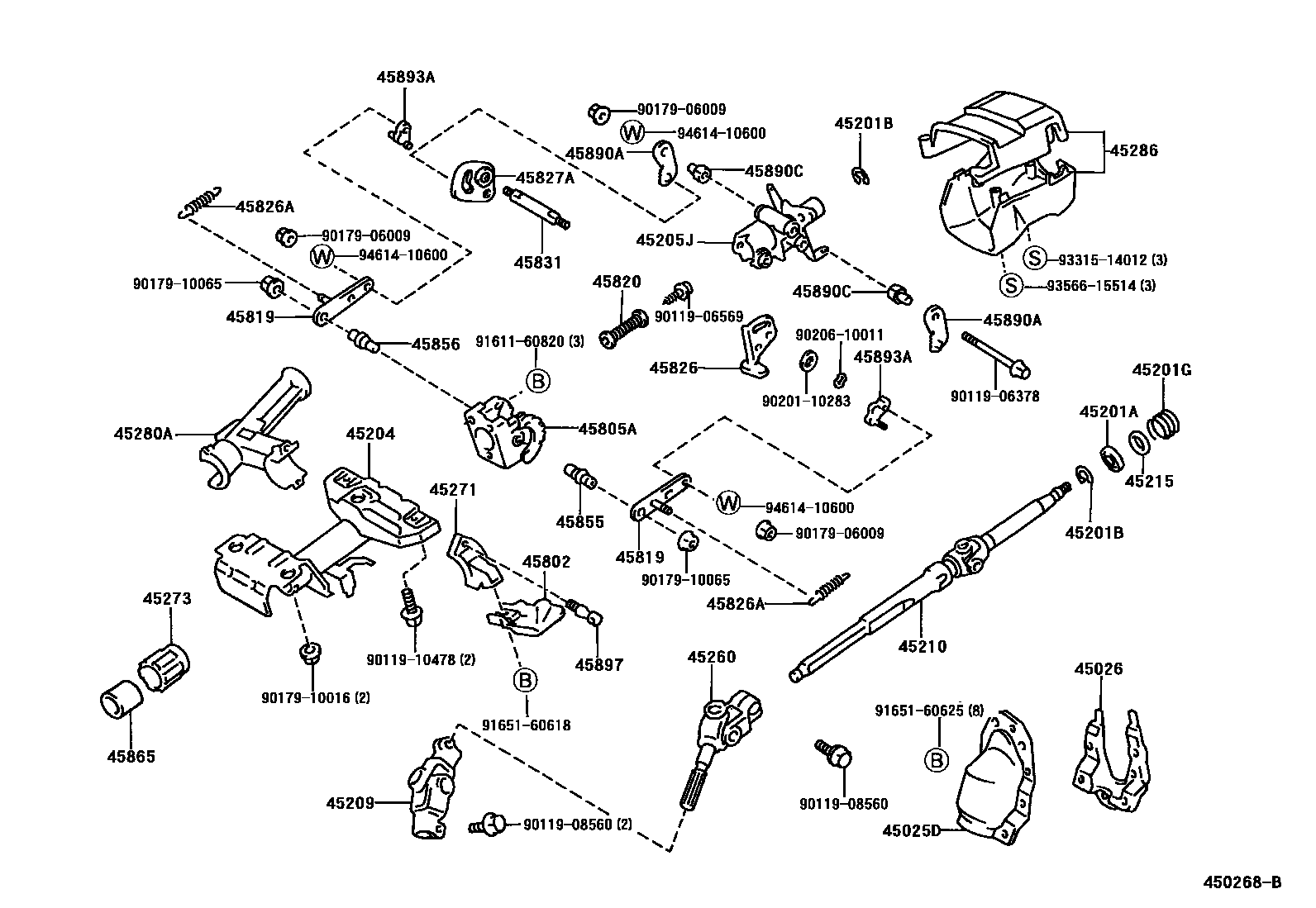

Toyota COROLLA SPRINTER — STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45204TUBE ASSY, STEERING COLUMN, LOWER
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45215COLLAR, MAIN SHAFT BEARING THRUST
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
SHADOW GRAY,TRIM1#
45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1
45805ASUPPORT SUB-ASSY, TILT STEERING
45819RETAINER, TILT LEVER
45820SPRING ASSY, TILT STEERING SUPPORT
45826LEVER, STEERING TILT
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45827ALEVER, STEERING TILT SUB
45831BOLT, TILT LEVER LOCK, NO.1
45855BOLT, TILT STEERING, NO.1
OD=9.989-9.998
OD=9.998-10.007
45856BOLT, TILT STEERING, NO.2
OD=9.989-9.998
OD=9.998-10.007
45865COLLAR, STEERING MAIN SHAFT
45890APAWL ASSY, TILT STEERING
LH
RH
45890CCOLLAR(FOR TILT STEERING PAWL)
MARK 0,LH
MARK 2,LH
MARK 3,LH
MARK 4,LH
MARK A,RH
MARK 6,RH
MARK 7,RH
MARK 8,RH
45893ASTOPPER, TILT STEERING PAWL
MARK A,LH
MARK F OR 11,RH
MARK B,LH
MARK C,LH
MARK D,LH
MARK E,LH
MARK G OR 12,RH
MARK H OR 13,RH
MARK I OR 14,RH
MARK J OR 15,RH
45897BOLT, STEERING LOCK SET
9011906378
main90119-06378
9011906569
main90119-06569
9011908560
main90119-08560
9011910478
main90119-10478
9017906009
main90179-06009
9017910016
main90179-10016
9017910065
main90179-10065
9020110283
main90201-10283
9020610011
main90206-10011
9161160820
main91611-60820
9165160618
main91651-60618
9165160625
main91651-60625
9331514012
main93315-14012
9356615514
main93566-15514
9461410600
main94614-10600
45 parts on this diagram · 1 diagram in section
STEERING COLUMN & SHAFT for Toyota COROLLA SPRINTER
This section contains 45 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota COROLLA SPRINTER. Key components include: COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1, COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2, BEARING(FOR STEERING MAIN SHAFT), RING, SHAFT SNAP(FOR STEERING MAIN SHAFT), SPRING, COMPRESSION(FOR STEERING MAIN SHAFT).
