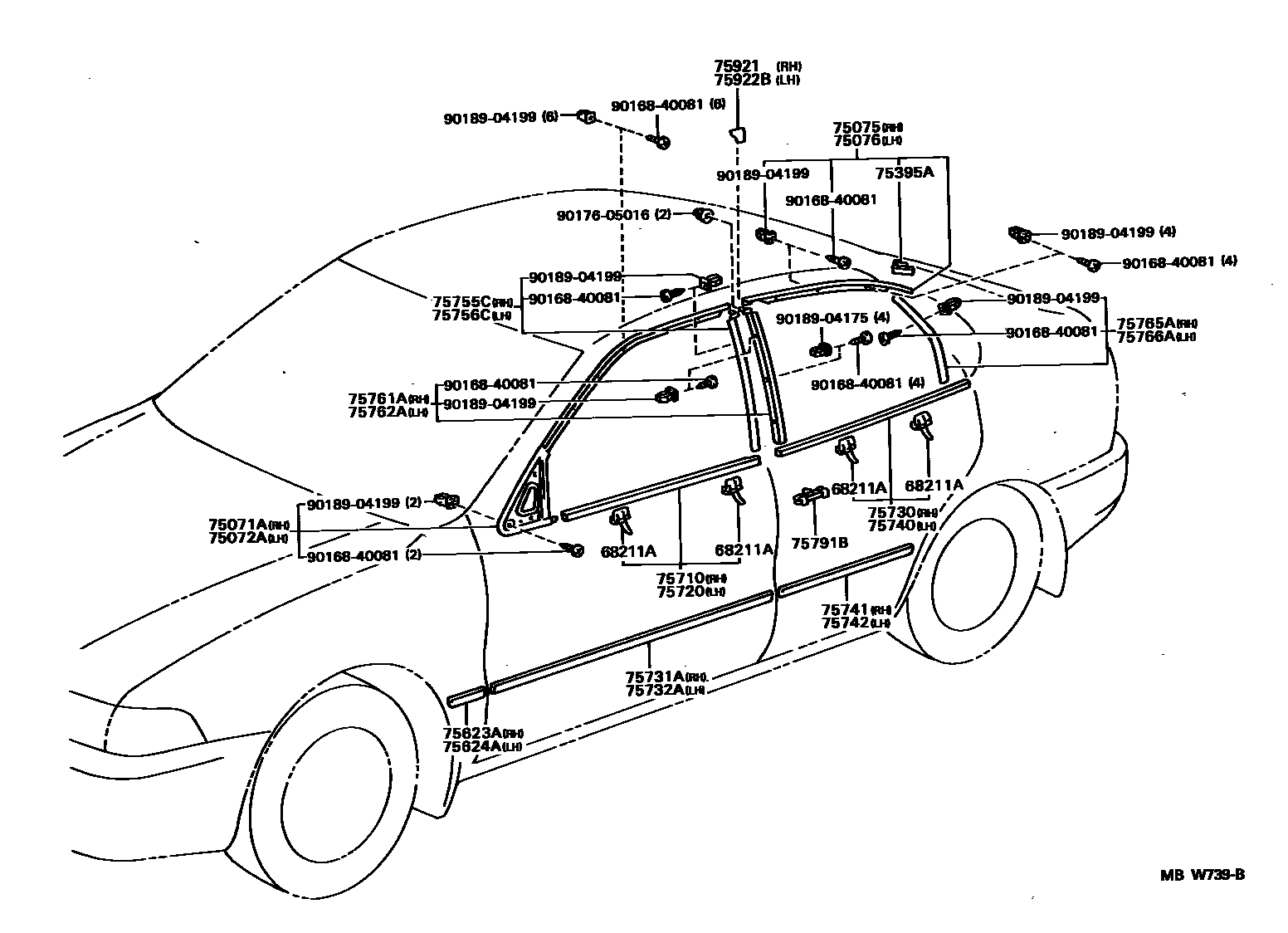

Toyota COROLLA SPRINTER — SIDE MOULDING
68211ACLIP, DOOR BELT MOULDING
FRONT DOOR,RED
REAR DOOR,BLUE
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75395ACLIP, OUTSIDE MOULDING, NO.1
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
SUPER WHITE 2,040
SILVER MICA M,192
BLUISH GRAY ME,182
SUPER RED 2,3E5
MD.GREEN M.M,6P0
DEEP TURQUOISE M,747
DARK BLUE MICA M.,8G5
DARK BLUE MC.,8K8
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
SUPER WHITE 2,040
SILVER MICA M,192
BLUISH GRAY ME,182
SUPER RED 2,3E5
MD.GREEN M.M,6P0
DEEP TURQUOISE M,747
DARK BLUE MICA M.,8G5
DARK BLUE MC.,8K8
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER MICA M,192
BLUISH GRAY ME,182
SUPER RED 2,3E5
MD.GREEN M.M,6P0
DEEP TURQUOISE,747
DARK BLUE MICA M,8G5
DARK BLUE MC.,8K8
75732AMOULDING, FRONT DOOR, OUTSIDE LH
SUPER WHITE 2,040
SILVER MICA M,192
BLUISH GRAY ME,182
SUPER RED 2,3E5
MD.GREEN M.M,6P0
DEEP TURQUOISE,747
DARK BLUE MICA M.,8G5
DARK BLUE MC.,8K8
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER MICA M,192
BLUISH GRAY ME,182
SUPER RED 2,3E5
MD.GREEN M.M,6P0
DEEP TURQUOISE,747
DARK BLUE MICA M.,8G5
DARK BLUE MC.,8K8
75742MOULDING, REAR DOOR, OUTSIDE LH
SUPER WHITE 2,040
SILVER MICA M,192
BLUISH GRAY ME,182
SUPER RED 2,3E5
MD.GREEN M.M,6P0
DEEP TURQUOISE,747
DARK BLUE MICA M.,8G5
DARK BLUE MC.,8K8
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75791BCLIP, BELT MOULDING SIDE
75921TAPE, BLACK OUT, NO.1 RH
75922BTAPE, BLACK OUT, NO.1 LH
9016840081
main90168-40081
9017605016
main90176-05016
9018904175
main90189-04175
9018904199
main90189-04199
29 parts on this diagram · 1 diagram in section
