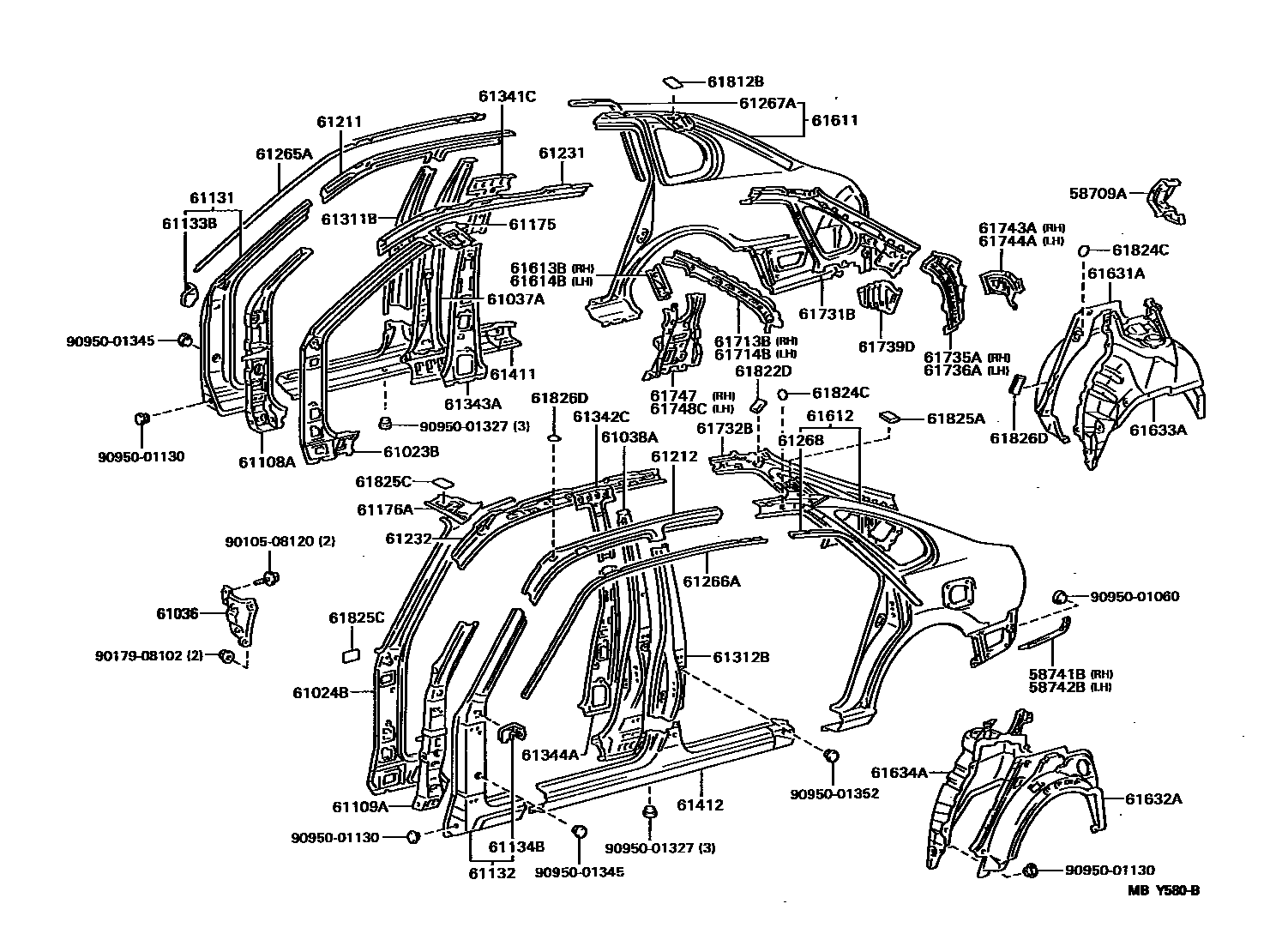

Toyota COROLLA SPRINTER — SIDE MEMBER

58709ACARRIER SUB-ASSY, JACK

main58709-12060iAE102199402-199605

58741BPROTECTOR, QUARTER PANEL, RH

main52462-12050iAE102199402-199605

58742BPROTECTOR, QUARTER PANEL, LH

main52463-12040iAE102199402-199605

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-12160iAE102199505-199605

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-12110iAE102199505-199605

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12050iAE102199402-199505

main61036-12090iAE102199505-199605

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-12060iAE102199402-199605

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-12060iAE102199402-199605

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-12120iAE102199402-199605

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-12110iAE102199402-199605

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12370iAE102199402-199605

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12380iAE102199402-199605

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-12240iAE102199402-199605

61134BBRACKET, FRONT BODY PILLAR OUTER, LH

main61134-12210iAE102199402-199605

61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH

main61175-12090iAE102199402-199605

61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH

main61176-12090iAE102199402-199605

61211RAIL, ROOF SIDE, OUTER RH

main61211-12310iAE102199402-199605

61212RAIL, ROOF SIDE, OUTER LH

main61212-12310iAE102199402-199605

61231RAIL, ROOF SIDE, INNER RH

main61231-12810iAE102199402-199605

main61231-12820iAE102199402-199605

W(SUN ROOF)

61232RAIL, ROOF SIDE, INNER LH

main61232-12690iAE102199402-199605

main61232-12700iAE102199402-199605

W(SUN ROOF)

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12220iAE102199402-199605

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12220iAE102199402-199605

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-12190iAE102199402-199605

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-12190iAE102199402-199605

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12200iAE102199402-199605

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12240iAE102199402-199605

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-12100iAE102199402-199605

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-12100iAE102199402-199605

61343APILLAR, CENTER BODY, INNER RH

main61343-12100iAE102199402-199605

61344APILLAR, CENTER BODY, INNER LH

main61344-12100iAE102199402-199605

61411PANEL, ROCKER, OUTER RH

main61411-12540iAE102199402-199605

61412PANEL, ROCKER, OUTER LH

main61412-12530iAE102199402-199605

61611PANEL, QUARTER, RH

main61601-1E690iAE102199402-199605

61612PANEL, QUARTER, LH

main61602-1E590iAE102199402-199605

61613BPANEL, QUARTER, INNER FRONT RH

main61613-12030iAE102199402-199605

61614BPANEL, QUARTER, INNER FRONT LH

main61614-12030iAE102199402-199605

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12210iAE102199402-199605

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12210iAE102199402-199605

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12630iAE102199402-199605

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12610iAE102199402-199605

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-12080iAE102199402-199605

61714BREINFORCE, ROOF SIDE, OUTER LH

main61714-12070iAE102199402-199605

61731BPANEL, ROOF SIDE, INNER RH

main61701-12280iAE102199402-199505

W(MOON ROOF & ABS)

main61701-12290iAE102199402-199505

W(SUN ROOF)

61732BPANEL, ROOF SIDE, INNER LH

main61702-12280iAE102199402-199505

W(MOON ROOF & ABS)

main61702-12290iAE102199402-199505

W(SUN ROOF)

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12340iAE102199402-199605

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12330iAE102199402-199605

61739DREINFORCEMENT, JACK CARRIER SUPPORT

main61739-12120iAE102199402-199605

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61703-12030iAE102199402-199605

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61704-12100iAE102199402-199605

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61703-12020iAE102199402-199605

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61704-12070iAE102199402-199605

61812BPLATE, NOISE CONTROL, RH

main61812-12010×4iAE102199402-199605

61822DPLATE, NOISE CONTROL, LH

main61822-12010iAE102199402-199605

61824CPAD, NOISE SHUTTER, NO.1

main61824-12040×2iAE102199402-199605

W(SUN ROOF)

61825APLATE, NOISE CONTROL, NO.2

main61825-12010×2iAE102199402-199605

61825CPAD, NOISE SHUTTER, NO.2

main61825-12010×2iAE102199402-199605

61826DPLATE, NOISE CONTROL, NO.3

main61827-12030×2iAE102199402-199605

9010508120

main90105-08120

9017908102

main90179-08102

9095001060

main90950-01060

9095001130

main90950-01130

9095001327

main90950-01327

9095001345

main90950-01345

9095001352

main90950-01352

64 parts on this diagram · 1 diagram in section
