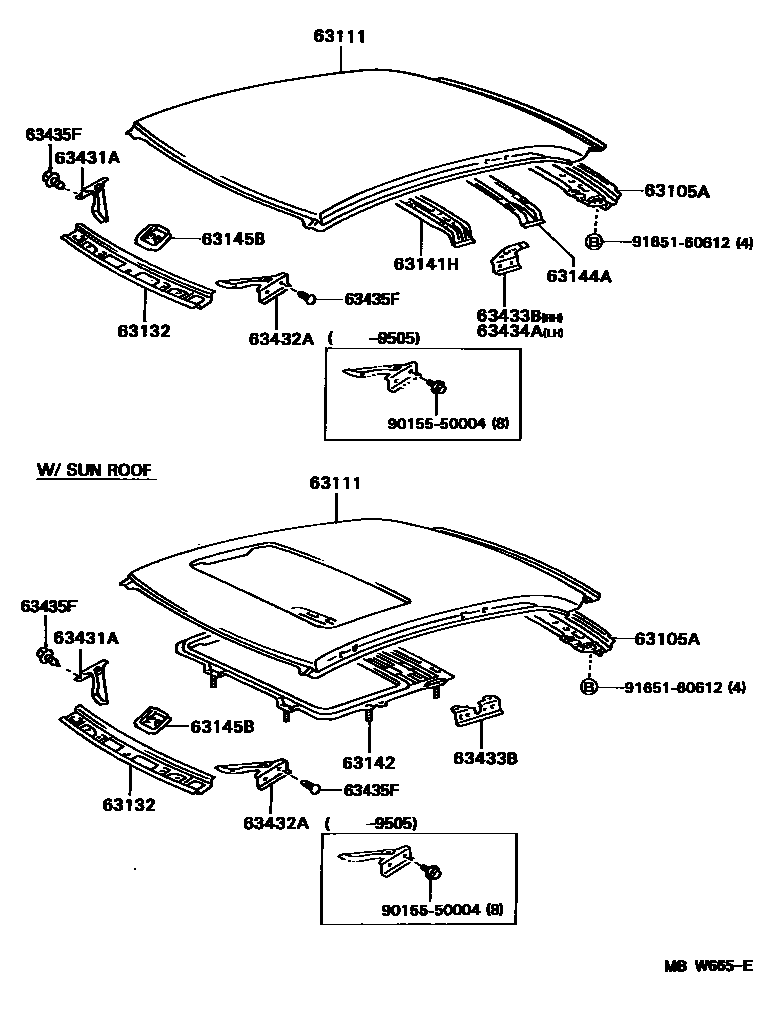

Toyota COROLLA SPRINTER — ROOF PANEL & BACK WINDOW GLASS

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12220i199402-199605

63111PANEL, ROOF

main63111-12630i199402-199605

main63111-12650i199402-199605

W(SUN ROOF)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-12180i199402-199605

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12170i199402-199605

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12060i199402-199605

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12030i199402-199605

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-12100i199402-199605

63431ABRACKET, ROOF INNER RACK, NO.1 RH

main63431-12020i199402-199605

63432ABRACKET, ROOF INNER RACK, NO.1 LH

main63432-12020i199402-199605

63433BBRACKET, ROOF INNER RACK, NO.2 RH

main63433-12020i199402-199605

main63433-12040×2i199402-199605

W(SUN ROOF)

63434ABRACKET, ROOF INNER RACK, NO.2 LH

main63434-12020i199402-199605

63435FSEAL, ROOF CARRIER, NO.1

main63435-12030×8i199505-199605

9015550004

main90155-50004

9165160612

main91651-60612

14 parts on this diagram · 2 diagrams in section

ROOF PANEL & BACK WINDOW GLASS for Toyota COROLLA SPRINTER

This section contains 54 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota COROLLA SPRINTER. Key components include: FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, REINFORCEMENT, ROOF PANEL, CENTER, REINFORCEMENT, ROOF PANEL, NO.2.
