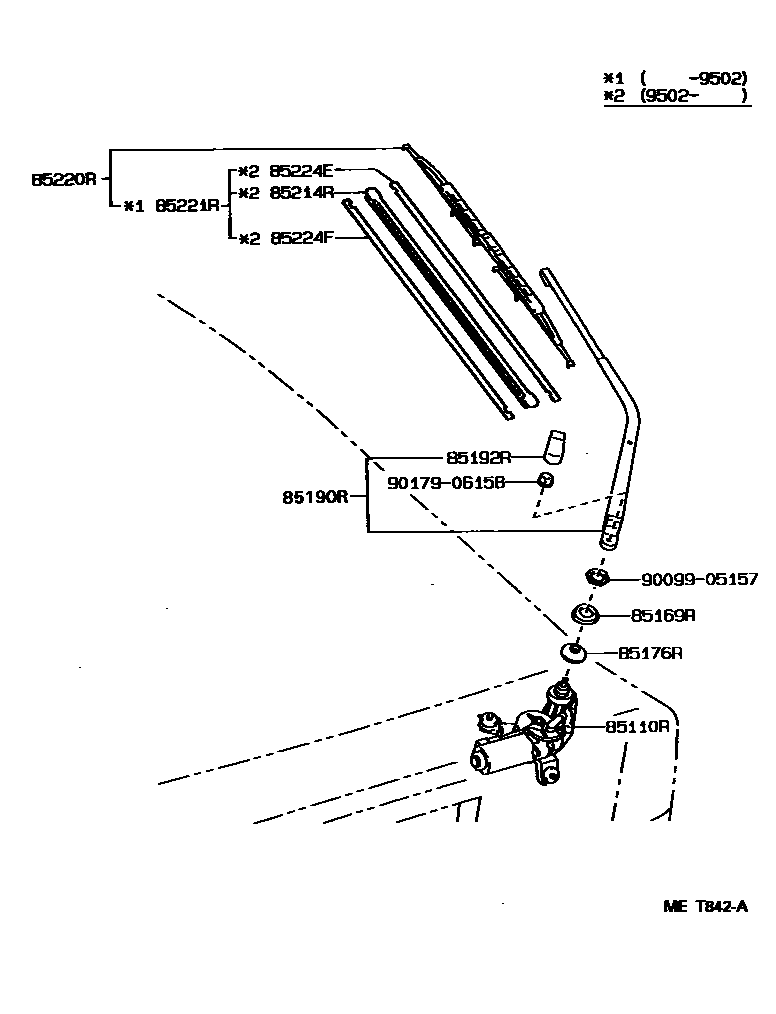

Toyota COROLLA SPRINTER — REAR WIPER
85110RMOTOR ASSY, REAR WIPER
85169RWASHER, REAR WIPER LINK PIVOT, NO.1
85176RCAP, REAR WIPER LINK
85190RARM ASSY, REAR WIPER
85192RCOVER, REAR WIPER ARM
85214RRUBBER, REAR WIPER
85220RBLADE ASSY, REAR WIPER
85221RBLADE, REAR WIPER
85224EPLATE, REAR WIPER RUBBER BACKING, NO.1
85224FPLATE, REAR WIPER RUBBER BACKING, NO.2
9009905157
main90099-05157
9017906158
main90179-06158
12 parts on this diagram · 1 diagram in section
REAR WIPER for Toyota COROLLA SPRINTER
This section contains 12 genuine Toyota parts for the REAR WIPER system of the Toyota COROLLA SPRINTER. Key components include: MOTOR ASSY, REAR WIPER, WASHER, REAR WIPER LINK PIVOT, NO.1, CAP, REAR WIPER LINK, ARM ASSY, REAR WIPER, COVER, REAR WIPER ARM.
