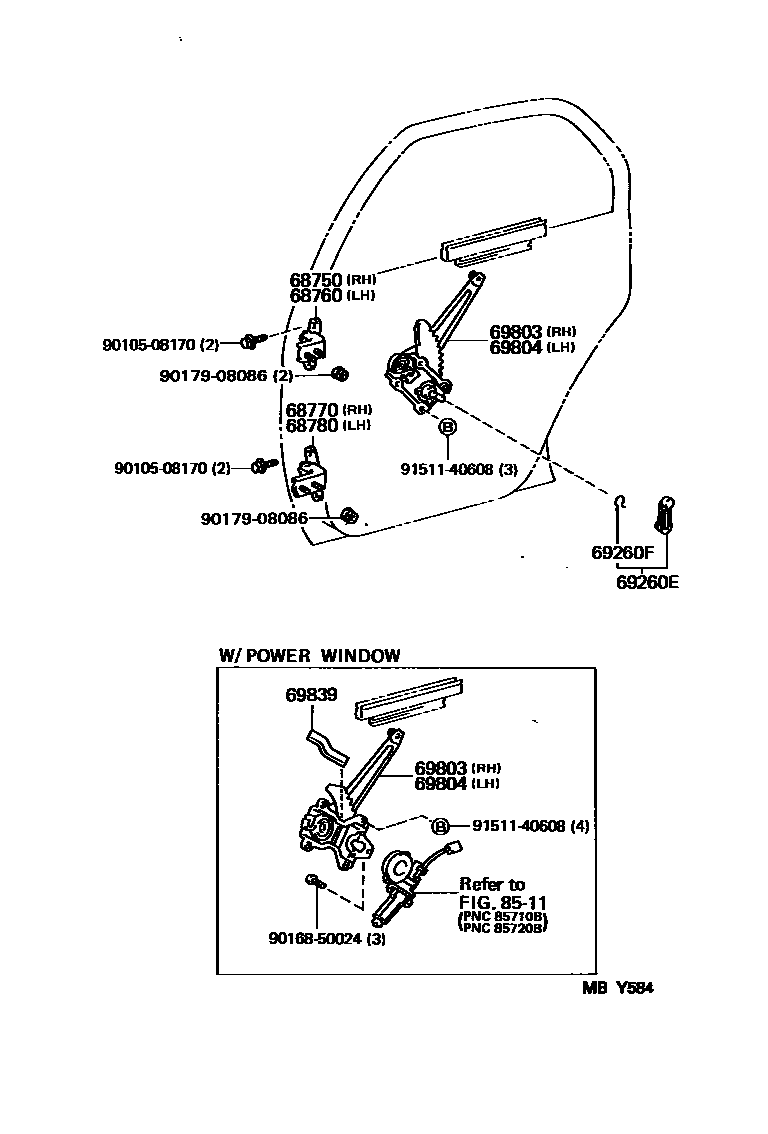

Toyota COROLLA SPRINTER — REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-12070i199402-199605

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-12070i199402-199605

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12080i199402-199605

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12070i199402-199605

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-12080-03×2i199402-199605

SHADOW GRAY,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2i199402-199605

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12100i199402-199605

W(POWER WINDOW)

main69830-12250i199402-199605

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12100i199402-199605

W(POWER WINDOW)

main69840-12250i199402-199605

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12010×4i199402-199605

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508170

main90105-08170

9016850024

main90168-50024

9017908086

main90179-08086

9151140608

main91511-40608

14 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA SPRINTER

This section contains 14 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA SPRINTER. Key components include: HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, UPPER LH, HINGE ASSY, REAR DOOR, LOWER RH, HINGE ASSY, REAR DOOR, LOWER LH, HANDLE ASSY, REAR DOOR WINDOW REGULATOR.
