Toyota COROLLA SPRINTER — REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-1A780i199402-199405

main81550-1A781i199405-199605

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2i199402-199605

12V 21W,TURN

main99132-21210×2i199402-199605

12V 21/5W,TAIL & STOP

81551LENS, REAR COMBINATION LAMP, RH

main81551-1A780i199402-199405

main81551-1A781i199405-199605

81553BBRACKET SUB-ASSY, RR COMB LAMP, RH

main75135-12011i199402-199605

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1A780i199402-199605

81560LAMP ASSY, REAR COMBINATION, LH

main81560-1A740i199402-199405

main81560-1A741i199405-199605

81561LENS, REAR COMBINATION LAMP, LH

main81561-1A740i199402-199405

main81561-1A741i199405-199605

81563BBRACKET SUB-ASSY, RR COMB LAMP, LH

main75135-12011i199402-199605

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-1A780i199402-199605

9015960540

main90159-60540

9354015014

main93540-15014

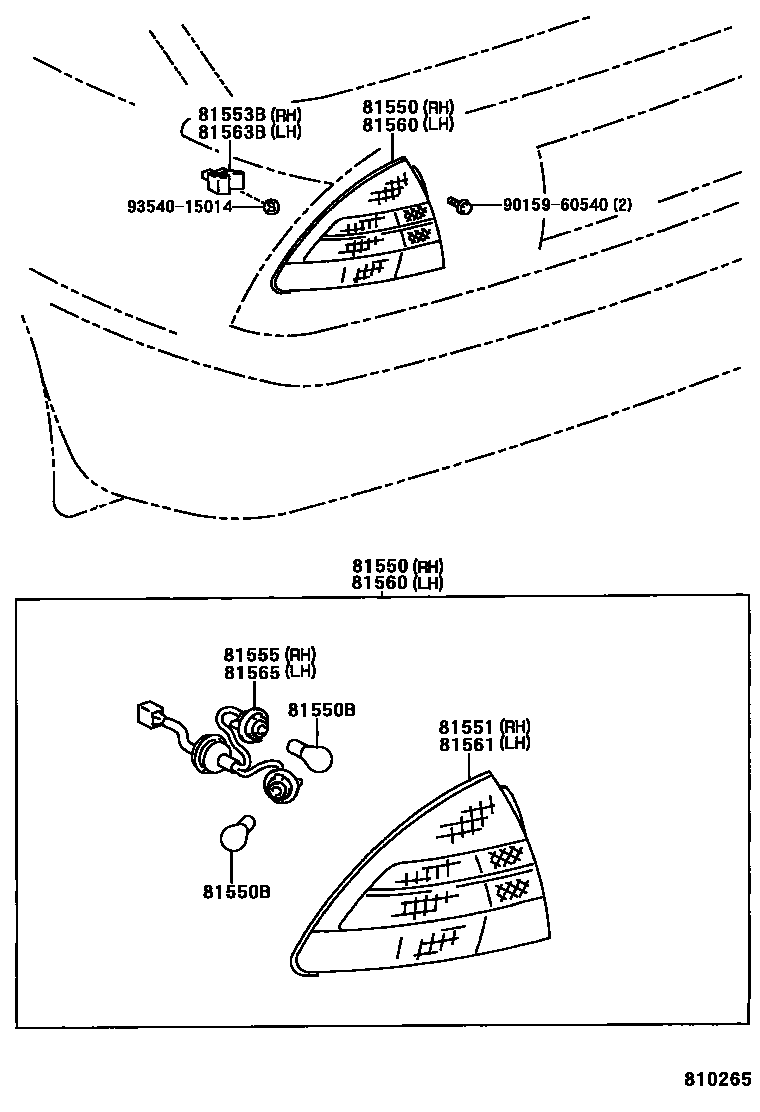

11 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota COROLLA SPRINTER

This section contains 11 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota COROLLA SPRINTER. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, BRACKET SUB-ASSY, RR COMB LAMP, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
