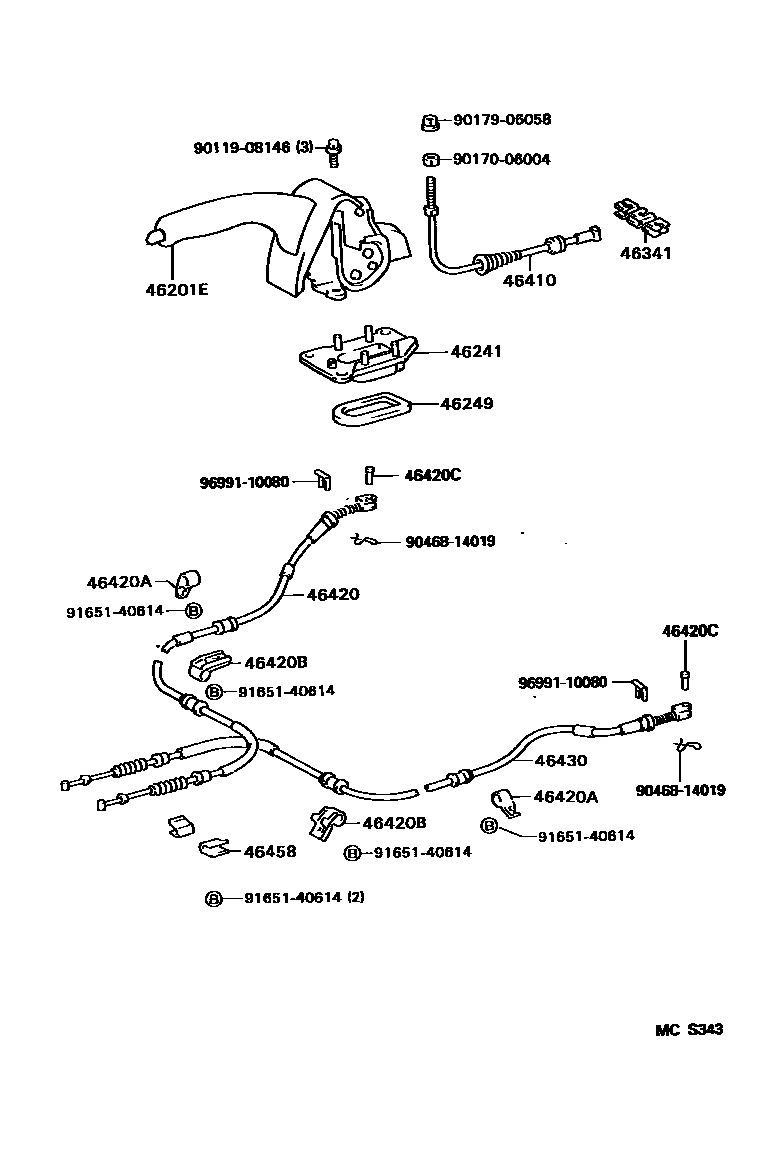

Toyota COROLLA SPRINTER — PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12170-B0i199402-199505

SHADOW GRAY,TRIM1#

main46201-12200-B0i199505-199605

SHADOW GRAY,TRIM1#

46241BOOT, PARKING BRAKE LEVER

main46241-12090i199402-199505

main46241-12110i199505-199605

46249SHIELD, PARKING BRAKE HOLE

main46249-12010i199402-199605

46341EQUALIZER, PARKING BRAKE

main46341-12020i199402-199605

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12210i199402-199505

main46410-12250i199505-199605

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12390i199402-199605

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01746×2i199402-199605

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01744i199402-199605

main90949-01747i199402-199605

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040×2i199402-199605

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12290i199402-199605

46458RETAINER, CABLE

main46458-50010×2i199402-199605

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046814019

main90468-14019

9165140614

main91651-40614

9699110080

main96991-10080

17 parts on this diagram · 1 diagram in section

PARKING BRAKE & CABLE for Toyota COROLLA SPRINTER

This section contains 17 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota COROLLA SPRINTER. Key components include: LEVER SUB-ASSY, PARKING BRAKE, BOOT, PARKING BRAKE LEVER, SHIELD, PARKING BRAKE HOLE, EQUALIZER, PARKING BRAKE, CABLE ASSY, PARKING BRAKE, NO.1.
