Toyota COROLLA SPRINTER — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12260-B0i199402-199605

LIGHT GRAY,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199402-199605

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-S3i199402-199605

GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1E460i199402-199605

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1E070i199402-199605

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1E470-A0i199402-199605

SUPER WHITE 2,040

main87910-1E470-B1i199402-199505

SILVER MICA M.,192

main87910-1E470-B2i199505-199605

BLUISH GRAY ME.,182

main87910-1E470-D0i199402-199605

SUPER RED 2,3E5

main87910-1E470-G1i199505-199605

MEDIUM GREEN M.M.,6P0

main87910-1E470-H0i199402-199505

DEEP TURQUOISE M.,747

main87910-1E470-J0i199402-199505

DARK BLUE MICA M.,8G5

main87910-1E470-J1i199505-199605

DARK BLUE MICA,8K8

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1E250-A0i199402-199605

SUPER WHITE 2,040

main87940-1E250-B1i199402-199505

SILVER MICA M.,192

main87940-1E250-B2i199505-199605

BLUEISH GRAY ME.,182

main87940-1E250-D0i199402-199605

SUPER RED 2,3E5

main87940-1E250-G1i199505-199605

MD.GREEN M.M.,6P0

main87940-1E250-H1i199402-199505

DEEP TURQUOISE M.,747

main87940-1E250-J0i199402-199505

DARK BLUE MICA M.,8G5

main87940-1E250-J1i199505-199605

DARK BLUE MICA,8K8

9014950035

main90149-50035

9151260614

main91512-60614

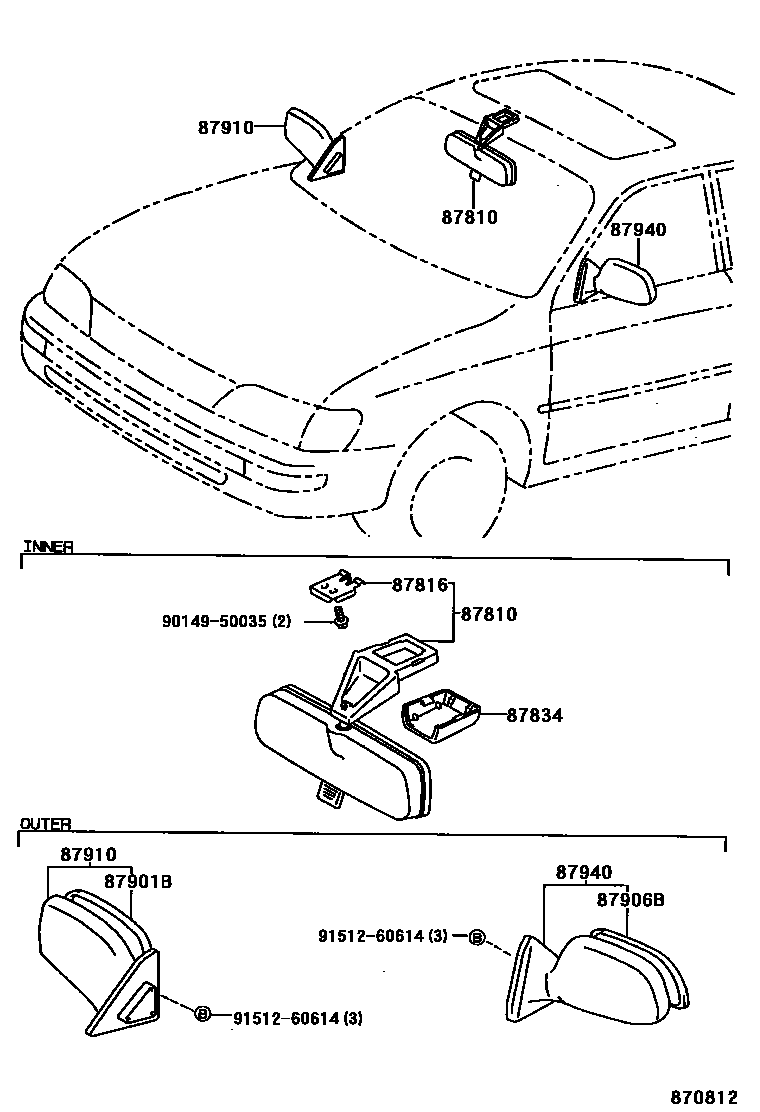

9 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA SPRINTER

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota COROLLA SPRINTER. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
