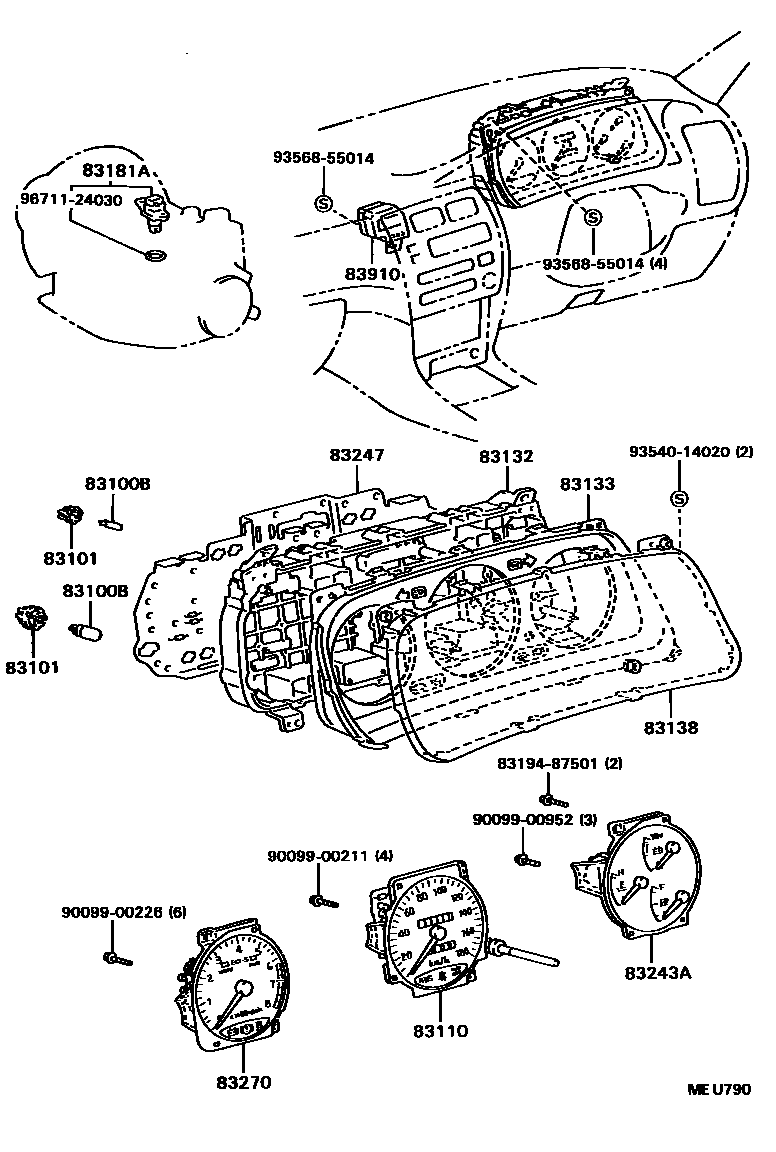

Toyota COROLLA SPRINTER — METER

83100BBULB, COMBINATION METER, NO.1

main83109-12030×3iAE102199402-199605

12V 3.4W,BLUE CAP

main83119-24430iAE102199402-199605

12V 1.4W BLUE CAP

main83119-32010iAE102199402-199605

14V 3.0W

main90981-11018×13iAE102199402-199605

12V 1.2W W/O SOCKET

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iAE102199402-199605

12V 3.4W

main83101-14040iAE102199402-199605

12V 1.4W

main83101-32020iAE102199402-199605

14V 3.0W

83110SPEEDOMETER ASSY

main83110-1H180iAE102199402-199605

83132CASE, COMBINATION METER

main83132-1A670iAE102199402-199605

83133PLATE, COMBINATION METER, NO.1

main83133-1H130iAE102199402-199605

83138GLASS, SPEEDOMETER

main83138-1A130iAE102199402-199605

83181ASENSOR, SPEEDOMETER

main83181-12020iAE102199402-199605

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1H251iAE102199402-199605

83247PLATE, METER CIRCUIT

main83247-1K010iAE102199402-199505

main83247-1K011iAE102199505-199605

83270TACHOMETER ASSY, ENGINE

main83242-1H250iAE102199402-199605

83910CLOCK ASSY

main83910-12460iAE102199402-199605

JECO

main83910-12480iAE102199402-199605

RHYTHM

8319487501

main83194-87501

9009900211

main90099-00211

9009900226

main90099-00226

9009900952

main90099-00952

9354014020

main93540-14020

9356855014

main93568-55014

9671124030

main96711-24030

18 parts on this diagram · 1 diagram in section
