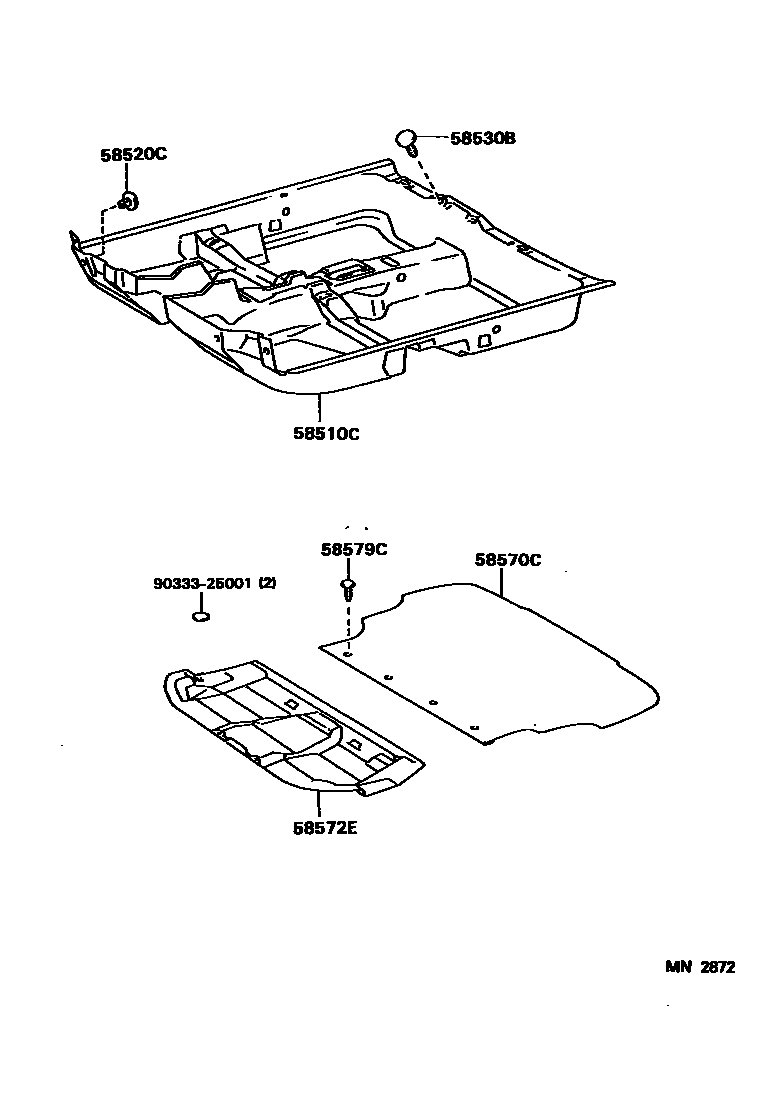

Toyota COROLLA SPRINTER — MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1E391-B1i199402-199505

SHADOW GRAY,TRIM1#

main58510-1E392-B1i199505-199605

SHADOW GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-22i199402-199605

BLACK,TRIM1#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-C0i199402-199605

BLACK,TRIM1#

58570CCARPET ASSY, REAR FLOOR

main58571-12090-B1i199402-199605

SHADOW GRAY,TRIM1#

58572EMAT, REAR FLOOR, FRONT

main58572-12050i199402-199505

main58572-13020i199505-199605

58579CCLIP, REAR FLOOR CARPET SET

main90467-09160-B0i199402-199605

SHADOW GRAY,TRIM1#

9033325001

main90333-25001

7 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota COROLLA SPRINTER

This section contains 7 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA SPRINTER. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), CARPET ASSY, REAR FLOOR, MAT, REAR FLOOR, FRONT.
