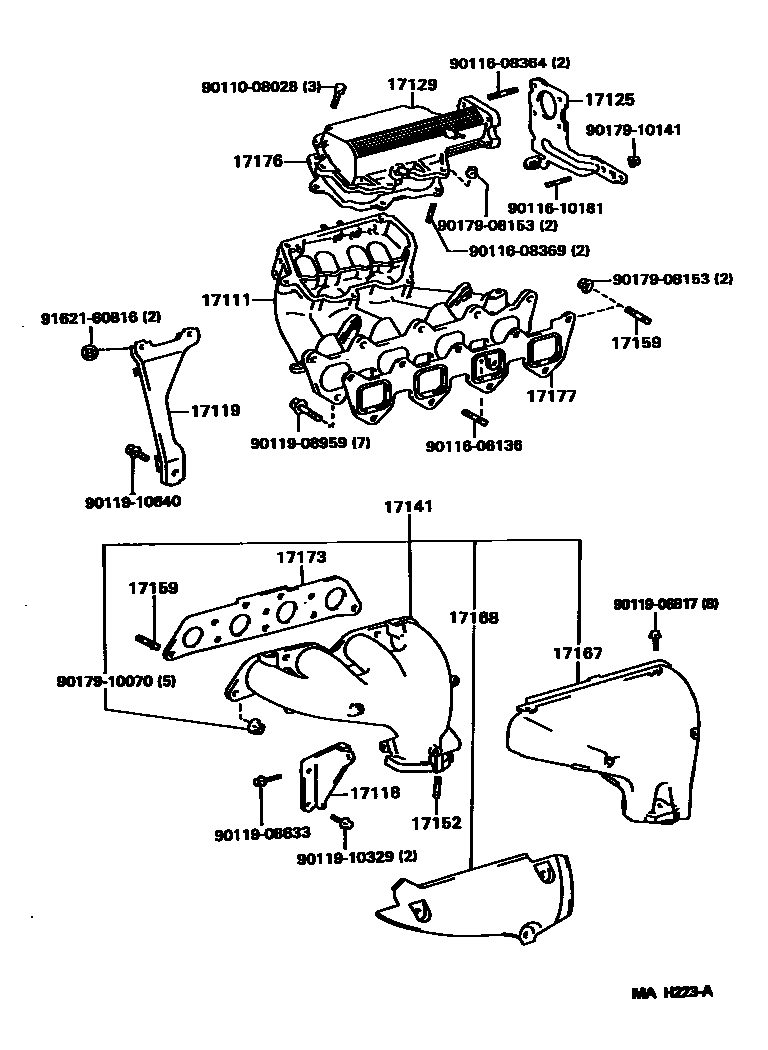

Toyota COROLLA SPRINTER — MANIFOLD

17111MANIFOLD, INTAKE

main17101-16190i7AFE..AE102199402-199605

17118STAY, MANIFOLD

main17118-16130i7AFE..AE102199402-199605

17119STAY, MANIFOLD, NO.2

main17012-16020i7AFE..AE102199402-199605

17125STAY, SURGE TANK, NO.1

main17125-16080i7AFE..AE102199402-199605

17129TANK, INTAKE AIR SURGE

main17109-15010i7AFE..AE102199402-199412

main17109-16030i7AFE..AE102199412-199605

17141MANIFOLD, EXHAUST

main17141-19015i7AFE..AE102199402-199603

sub90119-06817

main17141-19016i7AFE..AE102199603-199605

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10146×2i7AFE..AE102199402-199605

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main92112-60825×2i7AFE..AE102199402-199605

INTAKE MANIFOLD

main92112-61028×5i7AFE..AE102199402-199605

EXHAUST MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-15080i7AFE..AE102199402-199605

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-16071i7AFE..AE102199402-199605

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-15040i7AFE..AE102199402-199605

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-15010i7AFE..AE102199402-199605

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15030i7AFE..AE102199402-199605

9011008028

main90110-08028

9011606136

main90116-06136

9011608364

main90116-08364

9011608369

main90116-08369

9011610181

main90116-10181

9011906817

main90119-06817

9011908633

main90119-08633

9011908959

main90119-08959

9011910329

main90119-10329

9011910640

main90119-10640

9017908153

main90179-08153

9017910070

main90179-10070

9017910141

main90179-10141

9162160816

main91621-60816

27 parts on this diagram · 1 diagram in section
