Toyota COROLLA SPRINTER — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12420i199402-199605

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12420i199402-199605

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-1A070i199402-199605

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12200i199402-199605

69503CYLINDER SET, LOCK

main69005-1A800i199402-199605

69503AKEY, BLANK

main90999-00185i199402-199605

MASTER KEY,W(*68)

main90999-00186i199402-199605

MASTER KEY

69563PAD, BACK DOOR LOCK CYLINDER

main69563-12090i199402-199605

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12010i199402-199605

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24080i199402-199605

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080i199402-199605

main69759-12090i199402-199605

9162140616

main91621-40616

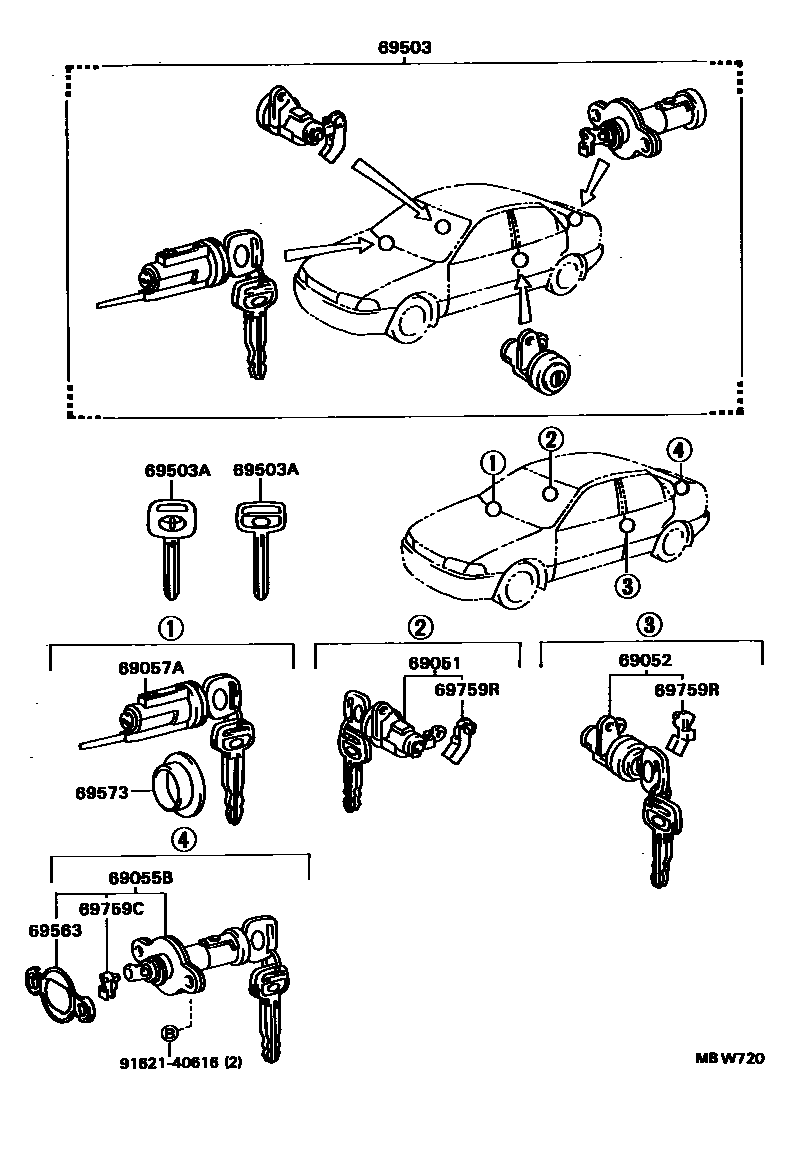

11 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota COROLLA SPRINTER

This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA SPRINTER. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
