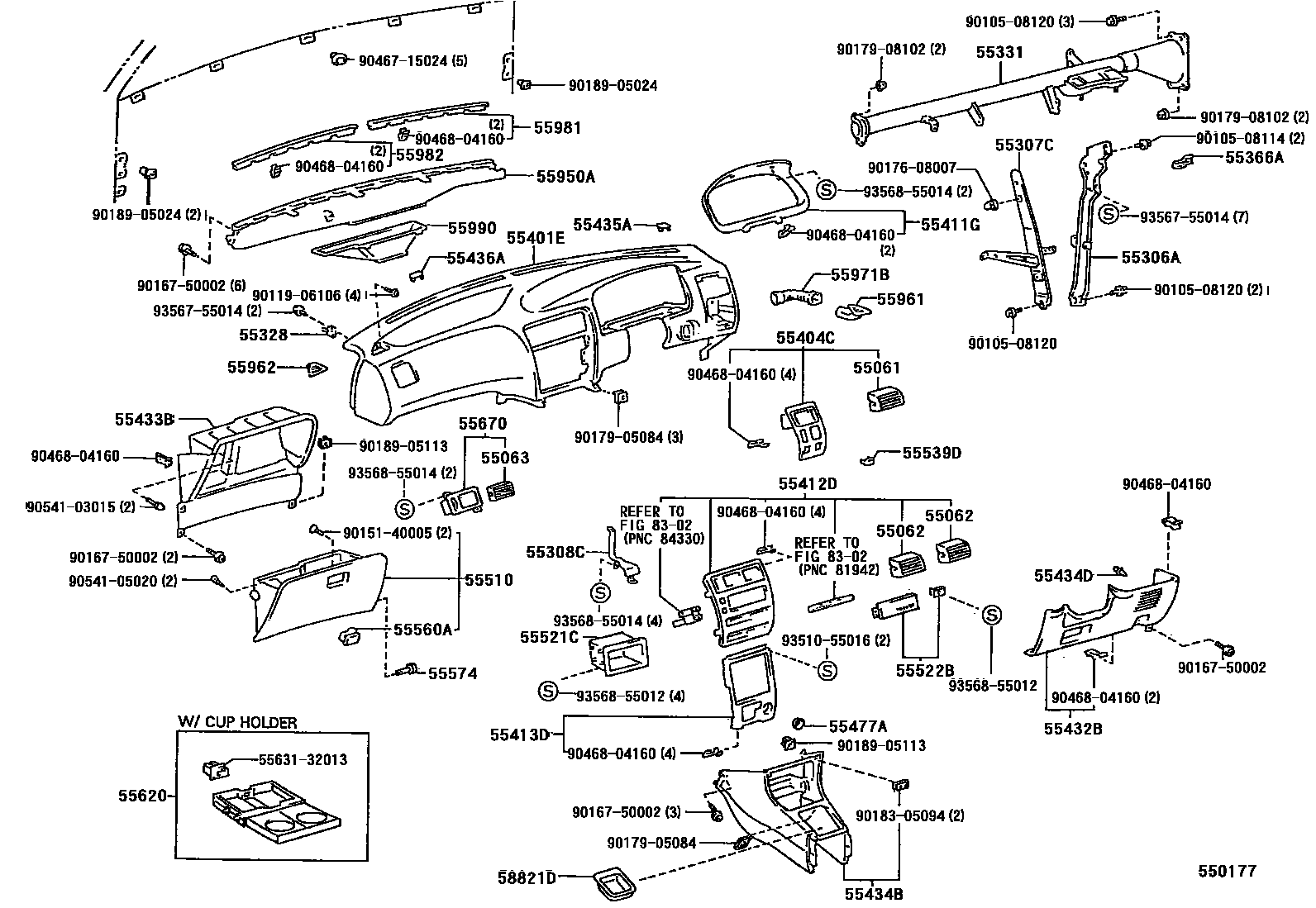

Toyota COROLLA SPRINTER — INSTRUMENT PANEL & GLOVE COMPARTMENT

55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1

main55061-12150i199402-199605

55062REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2

main55062-12060×2i199402-199605

55063REGISTER SUB-ASSY, INSTRUMENT, NO.3

main55063-12050-B0i199402-199605

SHADOW GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12200i199402-199605

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12200i199402-199605

sub55307-12201

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12180i199402-199605

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12060×2i199402-199605

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12240i199402-199605

sub55330-12241

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-12040i199402-199605

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12370-B0i199402-199503

SHADOW GRAY,TRIM1#

main55401-12460-B0i199503-199605

SHADOW GRAY,TRIM1#

sub55401-12381

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-12610i199402-199605

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-12870i199402-199605

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-12700i199402-199605

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-12420i199402-199605

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-12320-P0i199402-199605

SHADOW GRAY,TRIM1#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12090-B0i199402-199605

SHADOW GRAY,TRIM1#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12101-P0i199402-199605

SHADOW GRAY,TRIM1#

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07073-C0i199402-199605

BLACK,TRIM1#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-12010-C0i199402-199605

BLACK,TRIM1#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-12020-C0i199402-199605

BLACK,TRIM1#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12100i199402-199605

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12310-B1i199402-199605

SPRUCE,TRIM1#

55521CCOVER, STEREO OPENING

main55521-16040i199402-199605

sub55521-36020

55522BCOVER, RADIO TUNER OPENING

main55522-32010i199402-199605

sub55522-20070

55539DCOVER, SPARE SWITCH HOLE

main55539-12110i199402-199605

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-12080-P0i199402-199605

SHADOW GRAY,TRIM1#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2i199402-199605

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-12020i199402-199405

main55620-12050i199405-199605

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12150-B0i199407-199605

SHADOW GRAY,TRIM1#

main55670-12150-P0i199402-199407

SHADOW GRAY,TRIM1#

55950ANOZZLE ASSY, DEFROSTER

main55950-12170i199402-199605

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12180-P0i199402-199605

SHADOW GRAY,TRIM1#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12160-P0i199402-199605

SHADOW GRAY,TRIM1#

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-12110i199402-199605

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12050i199402-199605

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12050i199402-199605

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-12010i199402-199605

58821DPANEL, CONSOLE, UPPER FRONT

main58821-12050-P0i199402-199605

SHADOW GRAY,TRIM1#

8302

5563132013ARM,UNDER TRAY DOOR CHECK

main55631-32013

9010508114

main90105-08114

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9016750002

main90167-50002

9017608007

main90176-08007

9017905084

main90179-05084

9017908102

main90179-08102

9018305094

main90183-05094

9018905024

main90189-05024

9018905113

main90189-05113

9046715024

main90467-15024

9046804160

main90468-04160

9054103015

main90541-03015

9054105020

main90541-05020

9351055016

main93510-55016

9356755014

main93567-55014

9356855012

main93568-55012

9356855014

main93568-55014

58 parts on this diagram · 1 diagram in section
