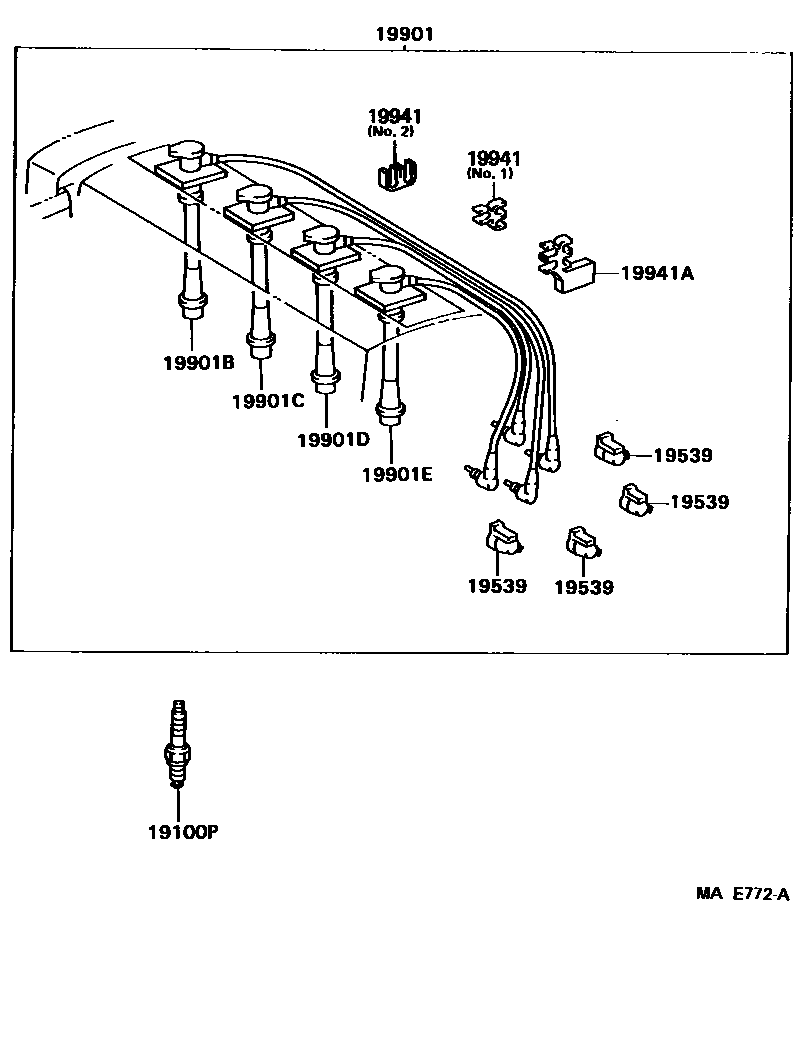

Toyota COROLLA SPRINTER — IGNITION COIL & SPARK PLUG / GLOW PLUG
19100PPLUG, SPARK
K16R-U
19539HOLDER, RESISTIVE CODE, NO.4
NO.2,4
NO.1
NO.3
19901CORD SET, COIL & SPARK, W/RESISTIVE
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19901ECORD, SPARK PLUG RESISTIVE, NO.4
19941CLAMP, RESISTIVE CORD, NO.1
NO.1
NO.2
19941ACLAMP(FOR RESISTIVE CORD)
9 parts on this diagram · 1 diagram in section
IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA SPRINTER
This section contains 9 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA SPRINTER. Key components include: PLUG, SPARK, HOLDER, RESISTIVE CODE, NO.4, CORD SET, COIL & SPARK, W/RESISTIVE, CORD, SPARK PLUG RESISTIVE, NO.1, CORD, SPARK PLUG RESISTIVE, NO.2.
