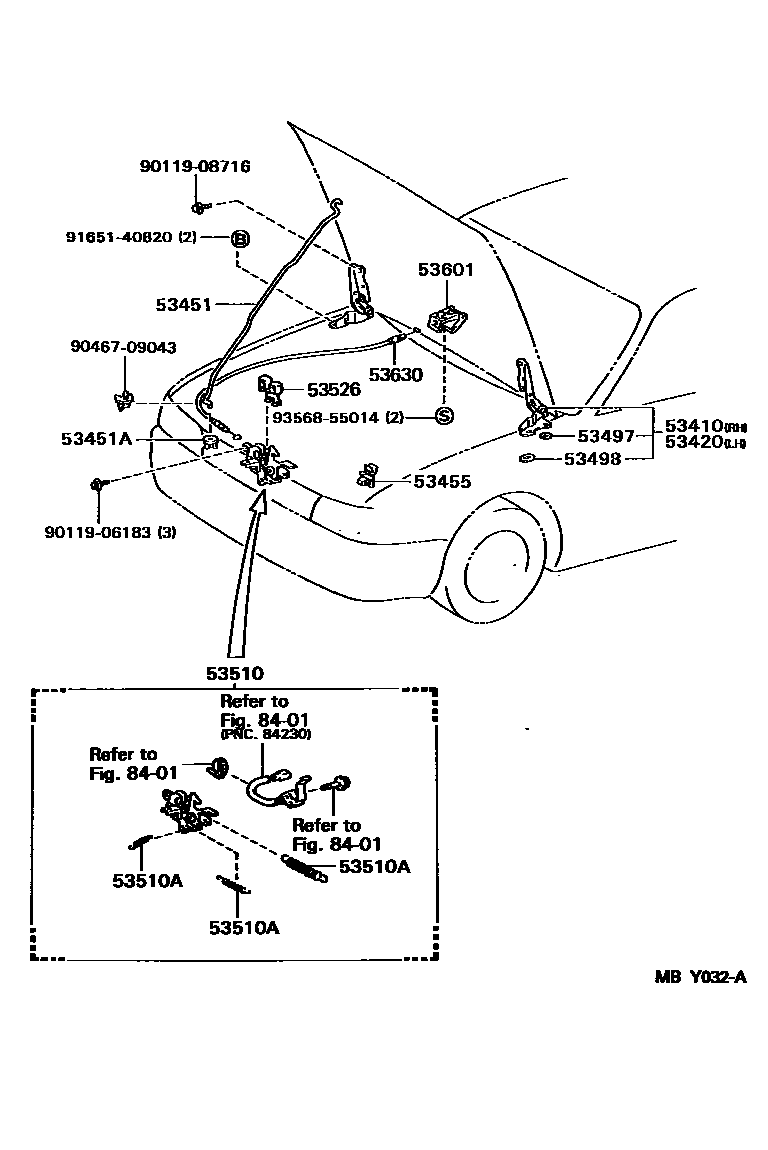

Toyota COROLLA SPRINTER — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12250i199402-199605

PAD T=0.5

main53410-12260i199402-199605

PAD T=1.0

53420HINGE ASSY, HOOD, LH

main53420-12240i199402-199605

PAD T=0.5

main53420-12250i199402-199605

PAD T=1.0

53451ROD, HOOD SUPPORT

main53451-12170i199402-199409

main53451-12171i199409-199605

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15020i199409-199605

main90480-15027i199402-199409

53455CLAMP, HOOD SUPPORT ROD

main53455-12060i199402-199409

main53455-12090i199409-199605

53497PAD, HOOD HINGE, NO.1

main53497-12060×2i199402-199605

T=1.0

main53497-12070×2i199402-199605

T=0.5

53498PAD, HOOD HINGE, NO.2

main53498-12060×2i199402-199605

PAD T=1.0

main53498-12070×2i199402-199605

PAD T=0.5

53510LOCK ASSY, HOOD

main53510-12570i199402-199605

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09057i199402-199605

WD=0.9,CW=23

main90506-12067i199402-199605

WD=1.4,CW=7.25

main90506-20065i199402-199605

WD=2.0,CW=16.0

53526PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2

main53526-12040i199402-199605

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-01i199402-199409

NEW BLACK,TRIM1#

main53601-10020-C0i199409-199605

BLACK,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12410i199402-199605

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906183

main90119-06183

9011908716

main90119-08716

9046709043

main90467-09043

9165140820

main91651-40820

9356855014

main93568-55014

18 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota COROLLA SPRINTER

This section contains 18 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota COROLLA SPRINTER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), CLAMP, HOOD SUPPORT ROD.
