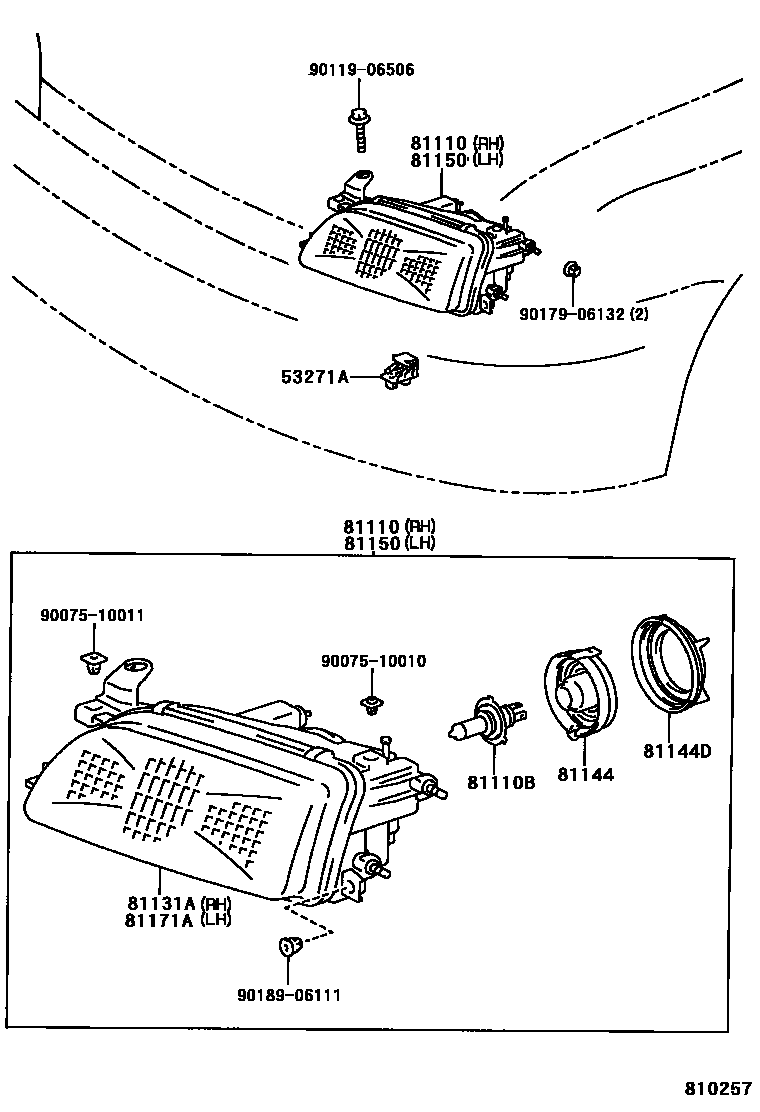

Toyota COROLLA SPRINTER — HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iAE102199402-199605

81110HEADLAMP ASSY, RH

main81110-1E330iAE102199402-199605

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004×2iAE102199402-199605

12V 60/55W,*HAL *WH

sub90981-13055

81131AUNIT, HEADLAMP, RH

main81130-1E330iAE102199402-199605

81144COVER, HEADLAMP, NO.1

main90075-99058×2iAE102199402-199605

81144DCAP, HEADLAMP LOCKING

main90075-99057×2iAE102199402-199605

81150HEADLAMP ASSY, LH

main81150-1E210iAE102199402-199605

81171AUNIT, HEADLAMP, LH

main81170-1E210iAE102199402-199605

9007510010

main90075-10010

9007510011

main90075-10011

9011906506

main90119-06506

9017906132

main90179-06132

9018906111

main90189-06111

13 parts on this diagram · 1 diagram in section
