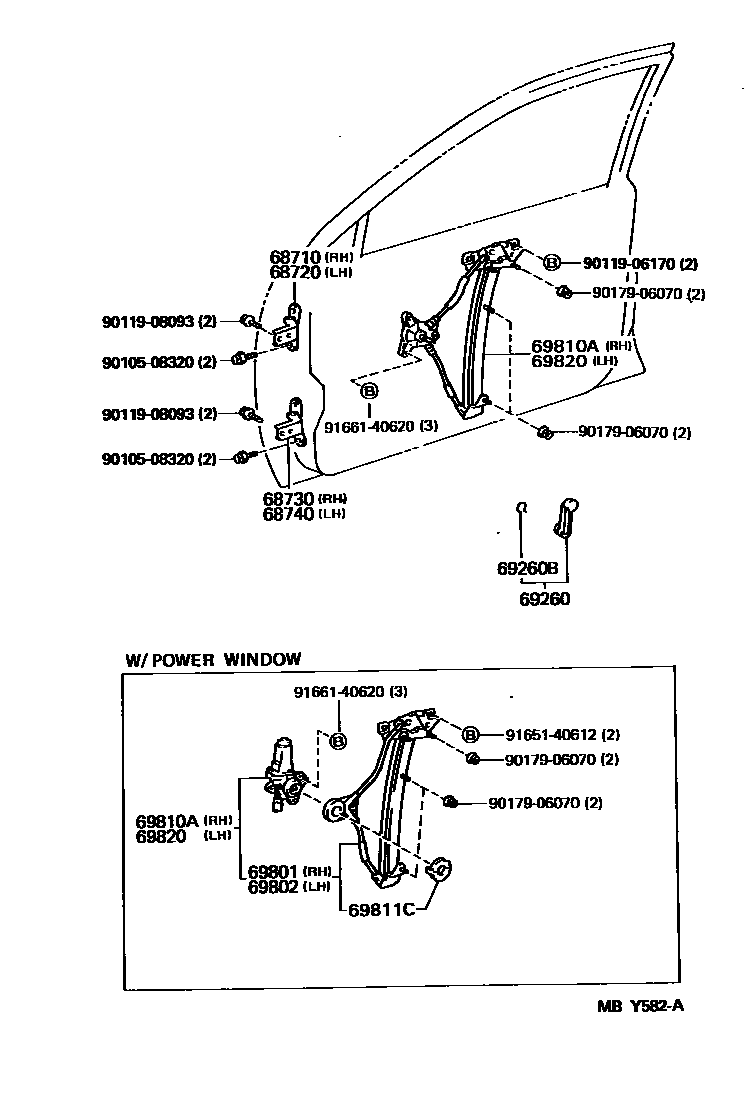

Toyota COROLLA SPRINTER — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iAE102199402-199510

main68710-12150iAE102199510-199605

sub68710-12151

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iAE102199402-199510

main68720-12150iAE102199510-199605

sub68720-12151

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12090iAE102199402-199510

main68730-12110iAE102199510-199605

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12090iAE102199402-199510

main68740-12110iAE102199510-199605

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12080-03×2iAE102199402-199605

SHADOW GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iAE102199402-199605

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12140iAE102199402-199605

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12140iAE102199402-199605

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02032iAE102199402-199605

(L)

main69810-12381iAE102199402-199605

(J)

sub69810-12382

main69810-12390iAE102199402-199605

W(POWER WINDOW)

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-32040×2iAE102199402-199605

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02032iAE102199402-199605

(L)

main69820-12381iAE102199402-199605

(J)

sub69820-12382

main69820-12390iAE102199402-199605

W(POWER WINDOW)

9010508320

main90105-08320

9011906170

main90119-06170

9011908093

main90119-08093

9017906070

main90179-06070

9165140612

main91651-40612

9166140620

main91661-40620

17 parts on this diagram · 1 diagram in section
