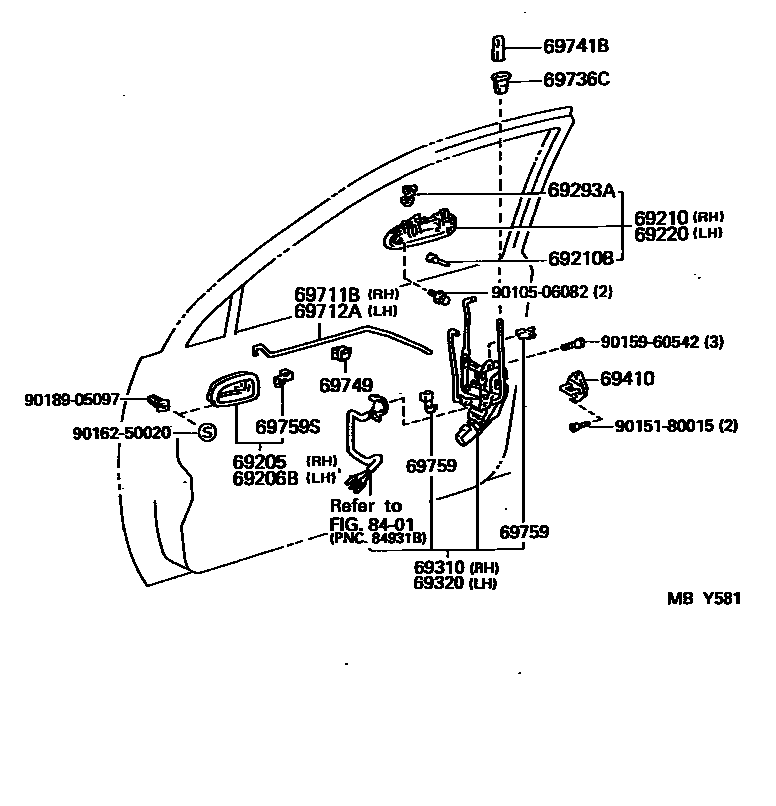

Toyota COROLLA SPRINTER — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SHADOW GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
SHADOW GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER MICA M,192
BLUEISH GRAY ME.,182
SUPER RED 2,3E5
MD. GREEN M.M.,6P0
DEEP TURQUOISE M,747
DARK BLUE MICA M,8G5
DARK BLUE MC.,8K8
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER MICA M,192
BLUEISH GRAY ME.,182
SUPER RED 2,3E5
MD. GREEN M.M.,6P0
DEEP TURQIOISE M,747
DARK BLUE MICA M.,8G5
DARK BLUE MC.,8K8
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
SHADOW GRAY,TRIM1#
69749CLAMP, FRONT DOOR LOCK LINK
BLUE
YELLOW
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
NATURAL
BLUE
GREEN
GRAY
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH
RH
8401
9010506082
main90105-06082
9015180015
main90151-80015
9015960542
main90159-60542
9016250020
main90162-50020
9018905097
main90189-05097
22 parts on this diagram · 1 diagram in section
