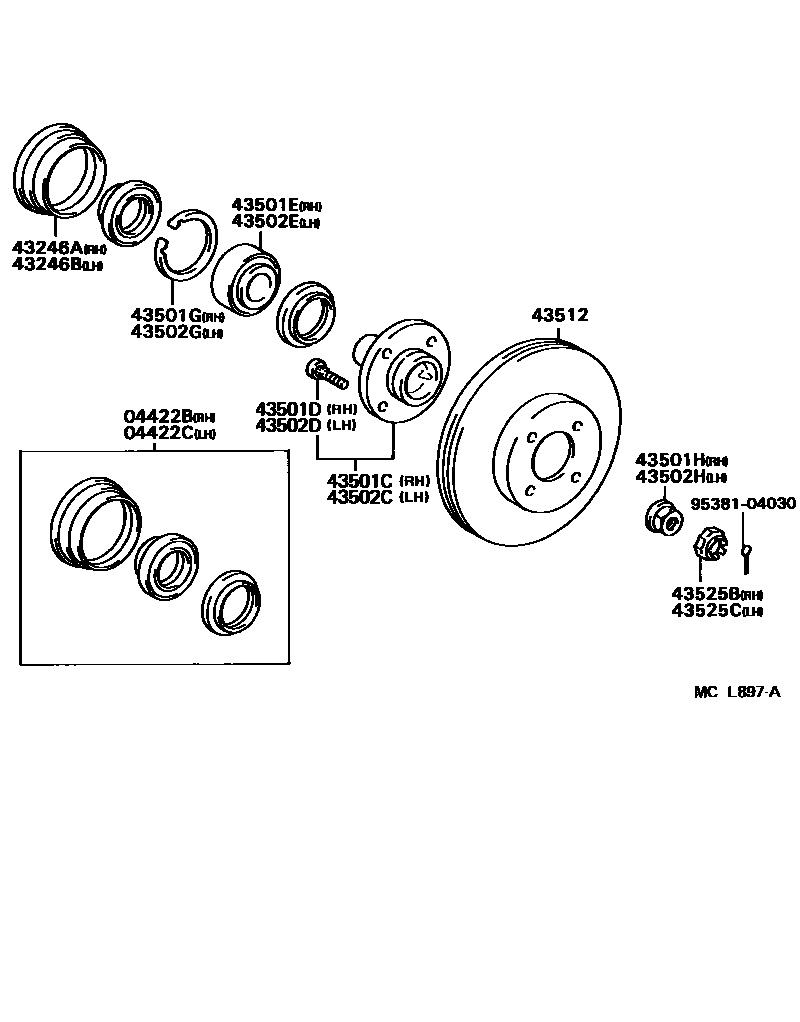

Toyota COROLLA SPRINTER — FRONT AXLE HUB

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-12050iAE102199402-199505

W(*66)

main04422-12070iAE102199402-199505

main04422-12091iAE102199505-199605

main04422-12100iAE102199505-199605

W(*66)

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-12050iAE102199402-199505

W(*66)

main04422-12070iAE102199402-199505

main04422-12091iAE102199505-199605

main04422-12100iAE102199505-199605

W(*66)

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12010iAE102199402-199505

main43246-12020iAE102199505-199605

W(*66)

main43246-12040iAE102199505-199605

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12010iAE102199402-199505

main43246-12020iAE102199505-199605

W(*66)

main43246-12040iAE102199505-199605

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12090iAE102199505-199605

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4iAE102199505-199605

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-38006iAE102199505-199605

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iAE102199505-199605

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-22020iAE102199402-199605

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12090iAE102199505-199605

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4iAE102199505-199605

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-38006iAE102199505-199605

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iAE102199505-199605

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-22020iAE102199402-199605

43512DISC, FRONT

main43512-12550×2iAE102199402-199605

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iAE102199402-199605

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iAE102199402-199605

9538104030

main95381-04030

18 parts on this diagram · 1 diagram in section
