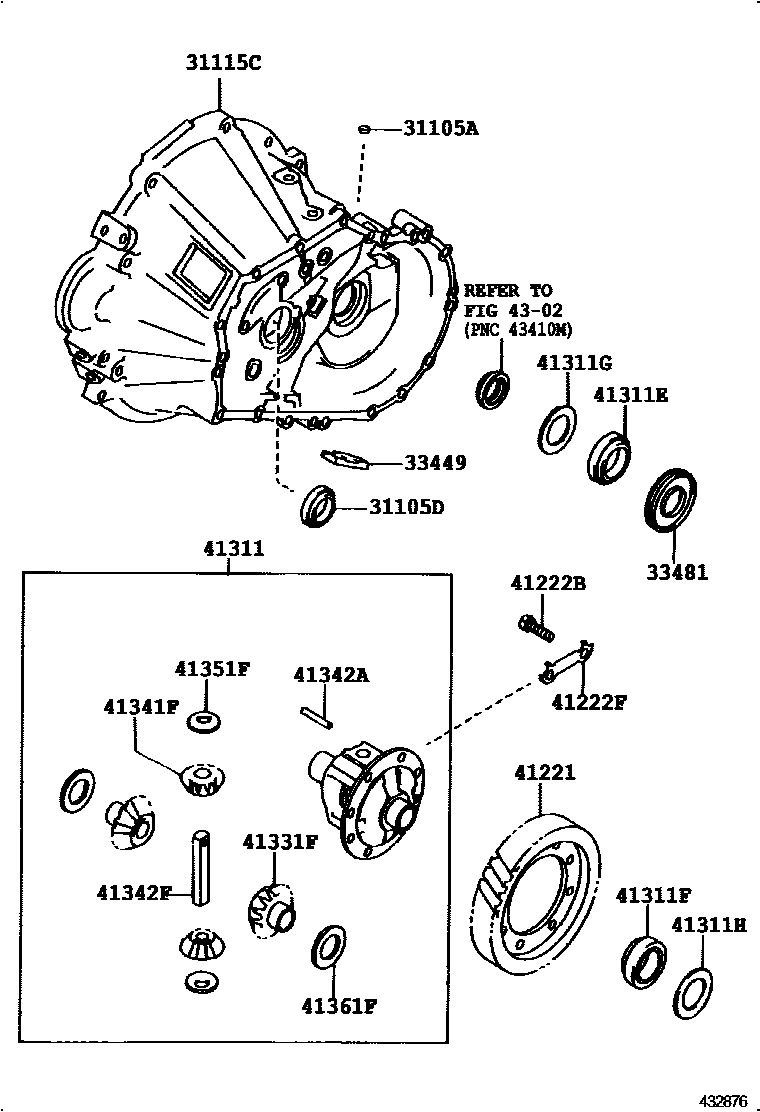

Toyota COROLLA SPRINTER — FRONT AXLE HOUSING & DIFFERENTIAL
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
33449MAGNET, TRANSMISSION
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=35,MARK 35X29-31
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311CASE, FRONT DIFFERENTIAL
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.00
T=2.10
T=2.10
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK V
T=2.35,MARK A
T=2.40,MARK B
T=2.45,MARK C
T=2.50,MARK D
T=2.55,MARK E
T=2.60,MARK F
T=2.65,MARK G
T=2.70,MARK H
T=2.75,MARK J
T=2.80,MARK K
T=2.85,MARK L
T=2.90,MARK M
T=2.10,MARK Q
T=2.15,MARK R
T=2.20,MARK S
T=2.25,MARK T
T=2.30,MARK U
T=2.05,MARK W
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
T=2.45,MARK H
T=2.50,MARK J
T=2.55,MARK K
T=2.60,MARK L
T=2.65,MARK M
T=2.70,MARK N
T=2.75,MARK P
T=2.80,MARK Q
T=2.85,MARK R
T=2.90,MARK S
T=2.95,MARK T
T=3.00,MARK U
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
4302FRONT DRIVE SHAFT
20 parts on this diagram · 2 diagrams in section
FRONT AXLE HOUSING & DIFFERENTIAL for Toyota COROLLA SPRINTER
This section contains 29 genuine Toyota parts for the FRONT AXLE HOUSING & DIFFERENTIAL system of the Toyota COROLLA SPRINTER. Key components include: PLUG, TIGHT(FOR FRONT TRANSAXLE CASE), SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE), CASE, FRONT TRANSAXLE(MTM), MAGNET, TRANSMISSION, GEAR, SPEEDOMETER DRIVE (MTM).
