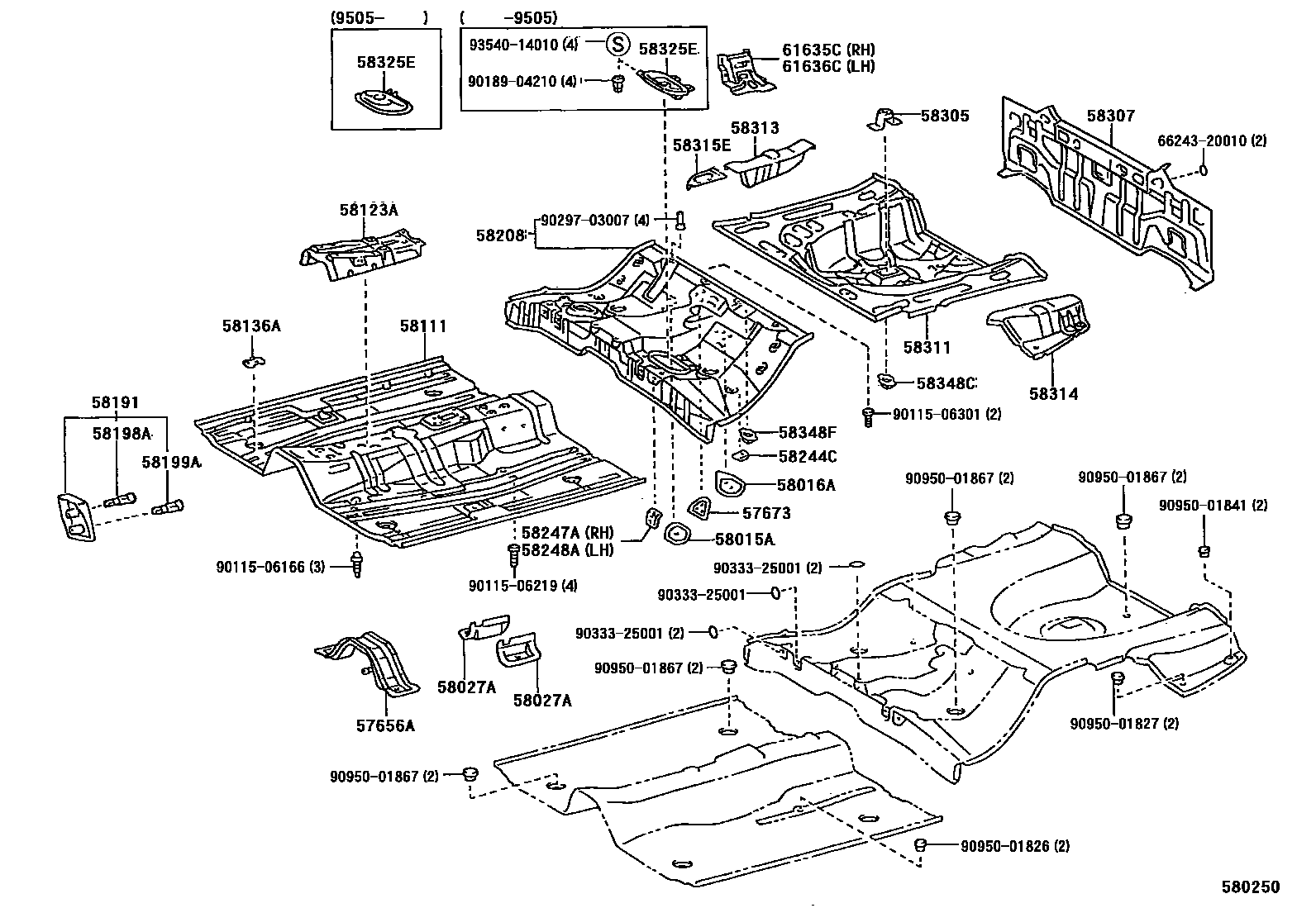

Toyota COROLLA SPRINTER — FLOOR PAN & LOWER BACK PANEL

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-12060iAE102199402-199605

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12070iAE102199402-199605

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12040iAE102199402-199605

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12010iAE102199402-199605

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12120iAE102199402-199505

main58027-12121iAE102199505-199605

58111PAN, FRONT FLOOR

main58111-12260iAE102199402-199505

main58111-12261iAE102199505-199508

main58111-12262iAE102199508-199605

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12020iAE102199402-199505

main58013-12060iAE102199505-199605

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030×2iAE102199402-199605

58191FOOTREST, FRONT FLOOR

main58191-12110iAE102199402-199605

58198ACLIP, FOOTREST, NO.1

main58198-12030iAE102199402-199605

58199ACLIP, FOOTREST, NO.2

main58199-12020iAE102199402-199605

58208PAN, CENTER FLOOR

main58211-12901iAE102199505-199605

sub58211-12910

sub90333-30002

main58211-13900iAE102199402-199505

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-13030×6iAE102199402-199605

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-13050iAE102199402-199605

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-13050iAE102199402-199605

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE102199402-199411

main58351-12040iAE102199411-199605

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A360iAE102199402-199605

58311PAN, REAR FLOOR

main58311-12210iAE102199402-199605

58313PANEL, REAR FLOOR SIDE, RH

main58313-12900iAE102199402-199505

main58313-12904iAE102199505-199605

58314PANEL, REAR FLOOR SIDE, LH

main58314-12250iAE102199402-199605

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-12070iAE102199402-199605

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12080iAE102199402-199505

main58325-12100iAE102199505-199605

58348CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-12020iAE102199402-199605

58348FBRACKET, CENTER FLOOR HEAR INSULATOR, NO.3

main58348-12020×2iAE102199402-199505

61635CBRACE, QUARTER WHEEL HOUSE, RH

main61635-12040iAE102199402-199605

61636CBRACE, QUARTER WHEEL HOUSE, LH

main61636-12050iAE102199402-199605

6624320010PLATE, REAR FENDER SET

main66243-20010

9011506166

main90115-06166

9011506219

main90115-06219

9011506301

main90115-06301

9018904210

main90189-04210

9029703007

main90297-03007

9033325001

main90333-25001

9095001826

main90950-01826

9095001827

main90950-01827

9095001841

main90950-01841

9095001867

main90950-01867

9354014010

main93540-14010

38 parts on this diagram · 1 diagram in section
