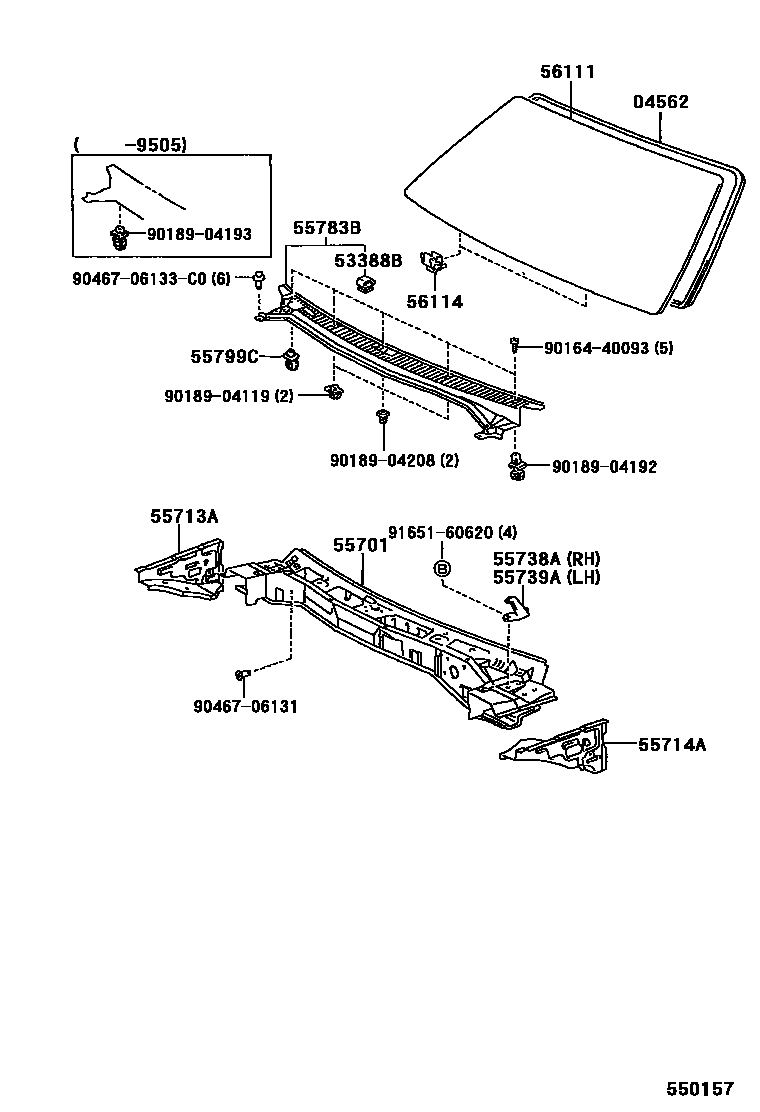

Toyota COROLLA SPRINTER — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE102199505-199605

53388BCUSHION, HOOD, REAR

main53388-12040iAE102199402-199605

55701PANEL SUB-ASSY, COWL

main55700-12801iAE102199412-199505

sub90179-06107

main55700-12840iAE102199402-199412

main55700-1A031iAE102199505-199605

55713APANEL, COWL TOP SIDE, RH

main55713-12090iAE102199402-199505

sub90467-07166

main55713-12091iAE102199505-199605

55714APANEL, COWL TOP SIDE, LH

main55714-12090iAE102199402-199505

sub90467-07166

main55714-12091iAE102199505-199605

55738ASTOPPER, HOOD, RH

main55738-12090iAE102199402-199605

55739ASTOPPER, HOOD, LH

main55739-12050iAE102199402-199605

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12080iAE102199402-199605

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iAE102199505-199605

56111GLASS, WINDSHIELD

main56111-1A550iAE102199505-199605

*TL,T=4.7

56114RETAINER, WINDSHIELD GLASS

main56110-12010×2iAE102199505-199605

9016440093

main90164-40093

9018904119

main90189-04119

9018904192

main90189-04192

9018904193

main90189-04193

9018904208

main90189-04208

9046706131

main90467-06131

9046706133C0

main90467-06133C0

9165160620

main91651-60620

19 parts on this diagram · 1 diagram in section
