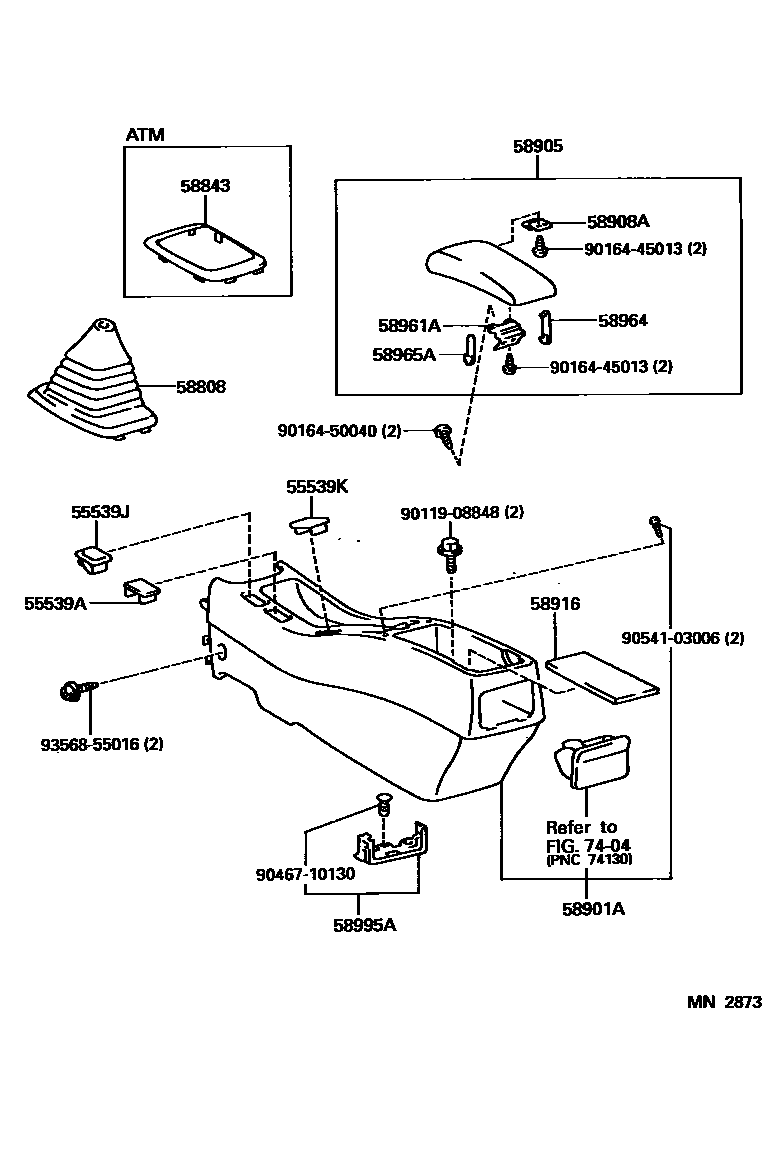

Toyota COROLLA SPRINTER — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12120-B0i199402-199605

SHADOW GRAY,TRIM1#

55539JCOVER, SPARE SWITCH HOLE

main55539-20020-P0i199402-199605

SHADOW GRAY,TRIM1#

55539KCOVER, SPARE SWITCH HOLE

main55539-12120-B0i199402-199605

SHADOW GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12112-P0i199402-199605

SHADOW GRAY,TRIM1#

58843BEZEL, SHIFTING HOLE

main58843-12080-B0i199402-199605

SHADOW GRAY,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12220-B0i199402-199605

SHADOW GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12120-B0i199402-199605

SHADOW GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32020i199402-199605

58916MAT, BOX BOTTOM

main58916-12040i199402-199405

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-12090i199402-199605

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040i199402-199605

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12040i199402-199605

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12080i199402-199605

7404ASH RECEPTACLE

→ Go to FIG 74-04

9011908848

main90119-08848

9016445013

main90164-45013

9016450040

main90164-50040

9046710130

main90467-10130

9054103006

main90541-03006

9356855016

main93568-55016

20 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota COROLLA SPRINTER

This section contains 20 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA SPRINTER. Key components include: COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, BEZEL, SHIFTING HOLE.
